FS Series Square Shape Vibrating Sifter ( Vibrating sieve )(Vibrating Screen)

Keywords:
Category: Sifter (sieve)
Descriptions The machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber shock…
Order

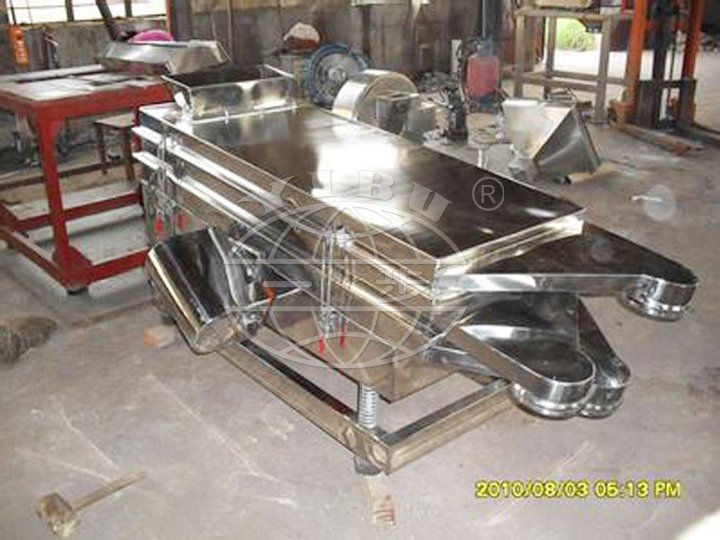

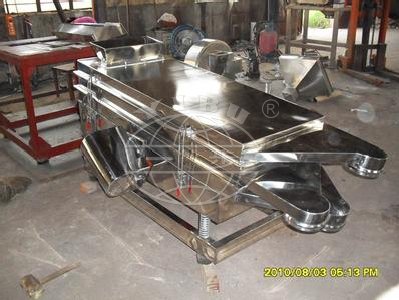

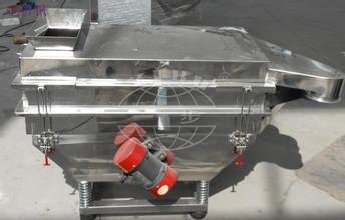

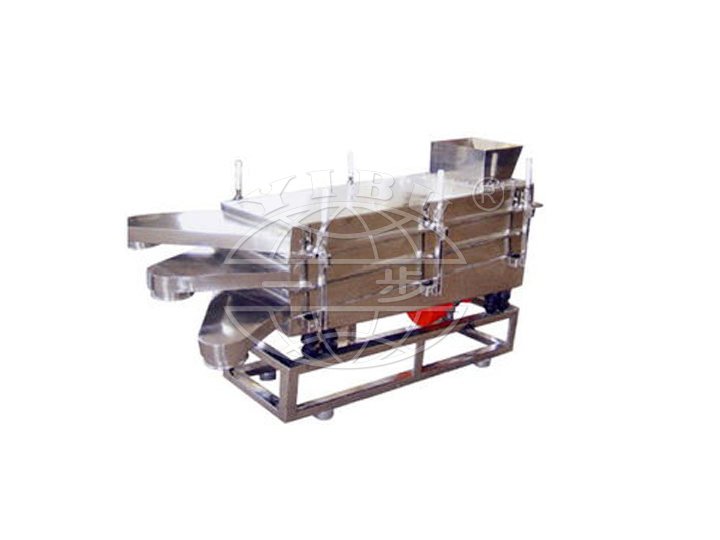

Detail Picture

FS Series Square Shape Vibrating Sifter ( Vibrating sieve )(Vibrating Screen)



Descriptions
The machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber shock absorber connected between base and screen box in up-down order. Centrifugal force is generated upon starting the machine. Control shock absorber against amplitude eccentric device correspondingly for best pertormance and material screening process in throwing vibration and loose. It is the ideal choice for pharmaceutical, food, chemical, metallurgy and electronic industries.





Structure
With Bottom ,vibrating motor ,mesh, clamps ,sealing strips(rubber or gel silica), cover



Characters and function

  • It absorbs the advanced technology from domestic and overseas ,and adopts senior processing technique.
  • It is a kind of high-precision screening and filtering machine.
  • The vertical vibrating motor is the vibrating power of machine .
  • There are two eccentric blocks on the motor’s upper and down .
  • The eccentric blocks make cubic element movement (horizontal ,up-down,and tilting)
  • By changing the eccentric block’s included angle ( the upper and down), the track that material moves on the mesh ,will be changed so that the screening target will be realized





Usage

  1. Chemical industry : Resin powder , paint , detergent powder ,paint ,Soda ash ,lemon Powder ,rubber ,plastic and so on .
  2. Abrasives ,Ceramics industry : alumina, Quartz sand ,mud ,spray soil particles .
  3. The food industry : sugar ,salt ,alkali ,monosodium glutamate ,milk powder ,milk ,yeast ,fruit juice ,soy sauce ,vinegar.
  4. The paper industry : Coating paint ,clay ,mud , black and white liquid ,waste water recycling .
  5. Metallurgical industry: titanium dioxide ,zinc oxide ,magnetic materials ,metal powders ,electrode powder .
  6. The pharmaceutical industry : the powder , inliquid , western medicine powder ,western medicine liquid,Chinese and Western medicine particles .
  7. Environmental Protection : garbage ,human and animal urine ,waste oil ,food ,waste water ,waste water processing .
  8. With a small volume and the light weight , it is easy to install and move .
  9. With a special mesh frame design and a long life for mesh ,and it is easy to change and clean mesh
  10. Different particles are graded educatio automatically ,so the auto-operation can be realized .
  11. The outlet’s location can be adjusted too anywhere you need , it is very easy to form producing line .
  12. Low consumption and noise ,environmental -friendly and energy conservation

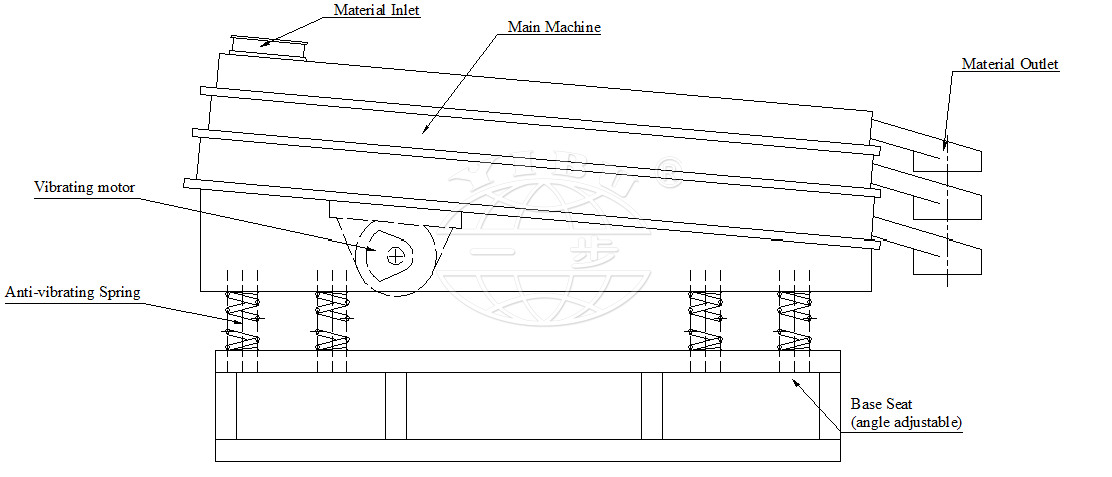

Drawing


Technical parameters

spec

capacity
(Kg/h)

meshes
(mesh)

power
(kw/h)

vibration frequency
(r/min)

vibration
power
(KN)

the
height of upper exit

 the
height of mid exit

the
height of low exit

overall
dimension (L×W×H)

weight(kg)

FS-0.5m2-×

450

2-150

0.2×2

1400

0-2.5×2

800

680

500

1300×770×1060

220

FS-0.7m2-×

650

2-150

0.2×2

1400

0-2.5×2

850

750

530

1700×680×1100

280

FS-0.8m2-×

750

2-150

0.2×2

1400

0-2.5×2

850

750

530

1600×830×1150

320

FS-1.2m2-×

1100

2-150

0.4×2

960

0-5×2

880

760

520

1900×980×1220

450
