WLDH Series Horizontal Ribbon Mixer （Ribbon mixer, Ribbon mixing equipment , Ribbon blender）





Features
WLDH series Horizontal Ribbon mixer （ribbon mixer, ribbon mixing equipment , ribbon blender）has bellow features
1．Big coefficient of loading, small occupied area.
2．It is difficult to clean when it is used to mix viscous or adhesive material.
3．The feeding system for the mixer is very flexible , it can be designed based on the customer site .
4．Control system has more choices ,such as push button ,HMI+PLC and so on
5．For the feeding system , it can choose vacuum feeding system or screw feeding system or other kinds of feeding system .

Principle

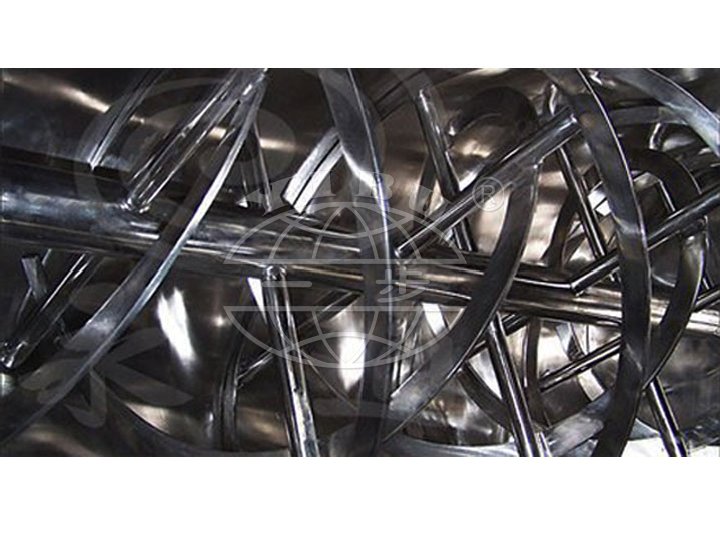

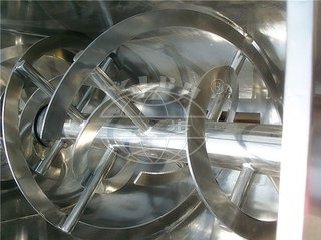

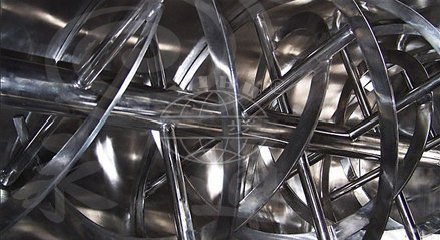

This machine is composed of container,screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing.



Applications

WLDH Series Horizontal Ribbon mixing machine （ribbon mixer, ribbon mixing equipment , ribbon blender） is generalIy used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently

Technical parameters

spec	WLDH -0.1	WLDH -0.3	WLDH -0.5	WLDH -1	WLDH -1.5	WLDH -2	WLDH -3	WLDH -4	WLDH -6	WLDH -8	WLDH- 10
mixed amount/batch kg	30-50	100- 150	200- 300	400- 600	600- 900	800- 1200	1200- 1800	1600- 2400	2400- 3600	3200- 4800	4000- 6000
power kw	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
weight kg	300	500	900	1400	1900	2500	3100	3600	5300	6800	7800

•

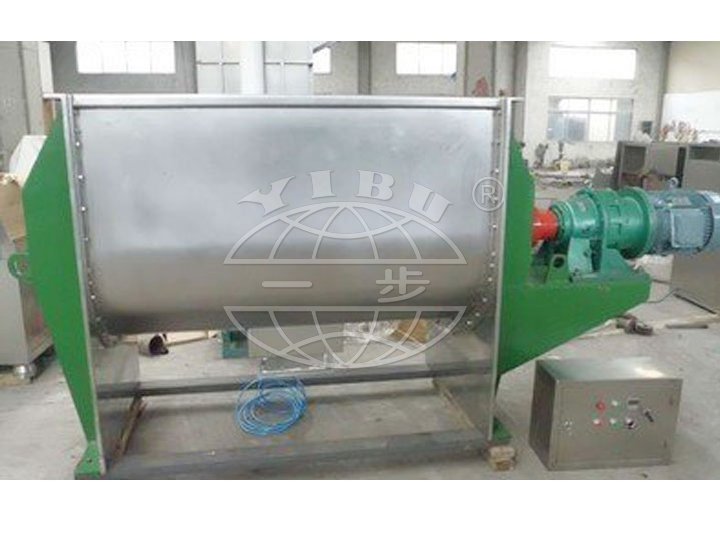

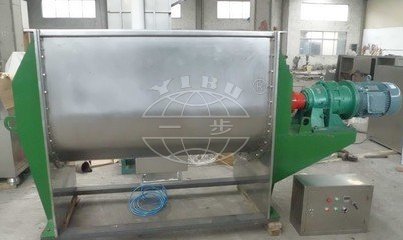

  WLDH series Horizontal Ribbon mixing machine （ribbon mixer）
•

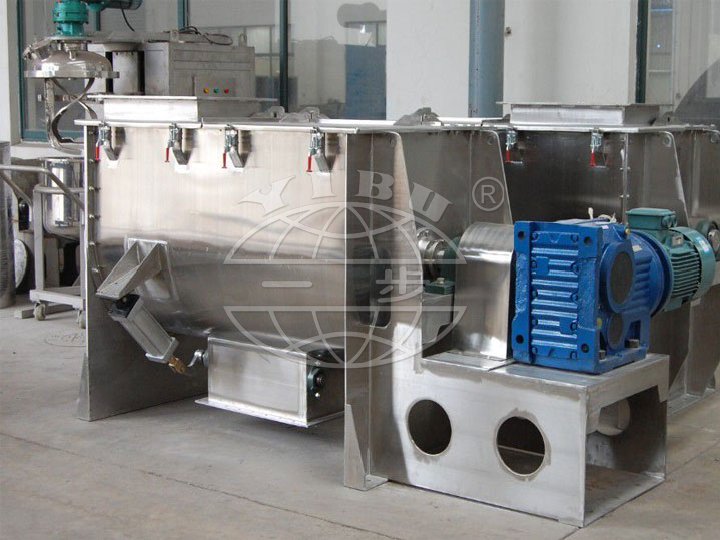

  WLDH series Horizontal Ribbon mixing machine （ribbon mixer）
•

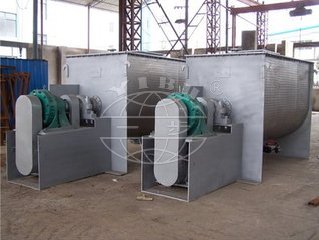

  WLDH series Horizontal Ribbon mixing machine （ribbon mixer）
