  • CJT Series Layer Lifter(Pharma lifter ,Between Two Floors)

CJT Series Layer Lifter(Pharma lifter ,Between Two Floors)

Keywords:
Category: Pharma lifter
CJT Series Layer Lifter(Pharma lifter ,Between Two Floors) Installation Diagram:ApplicationThis machine is mainly used in material transportation between the upper and lower floors, widely used in pharmaceutical, chemical, food and other industries.
Order
Detail Picture

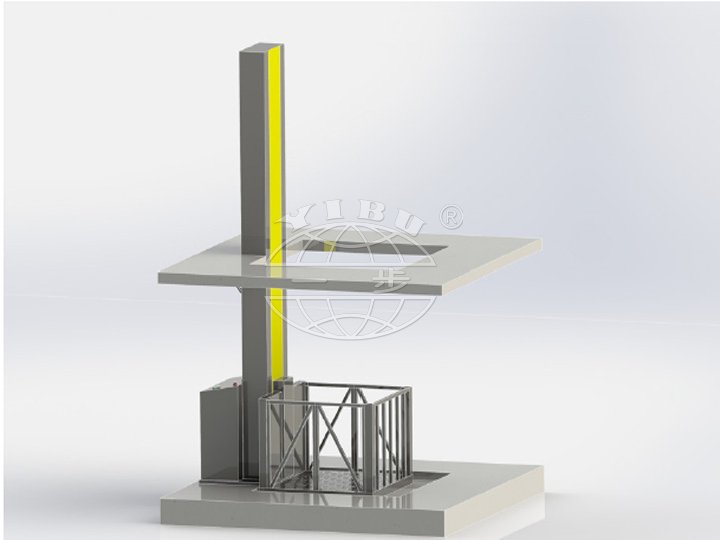

CJT Series Layer Lifter(Pharma lifter ,Between Two Floors)

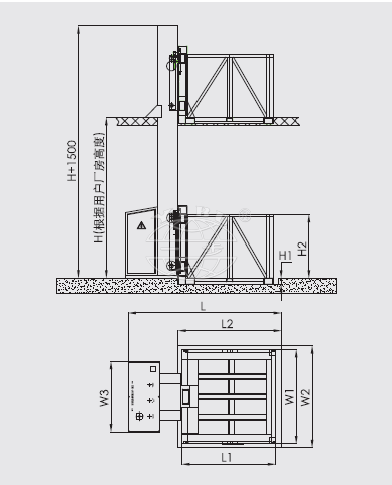

Installation Diagram:


Application
This machine is mainly used in material transportation between the upper and lower floors, widely used in pharmaceutical, chemical, food and other industries.
Principle

The machine consists of the pillar, chassis, lifting platform and the double control system. When working, it opens the door of the platform and pushes material or skip car into the lifting platform, then closes the fence gate, opens lifting program. After the material or skip car get the right position, open guardrail gate and push the material or skip to the required position.

Features
After the wide absorption of advanced domestic and foreign technology, and taking the specific conditions and requirements of our country into consideration, our company develops this new equipment. It has proper structure, stable and reliable performance, and is easy to operate. Besides, it has high safety performance, equipped with multiple safety protection, guardrail door interlock with ascension, and the cars can stop in the right position automatically

Technical parameters


Type

Size of the structure

Net loading
Kg

Total power
KW

H

H1

H2

W

W1

W2

W3

L

L1

L2

CJT600

<8000

80

1000

1000

1000

1100

700

1800

1200

1350

600

2.2

CJT1000

<8000

100

1000

1200

1200

1300

750

2000

1400

1550

1000

3

CJT1500

<8000

120

1000

1400

1400

1500

750

2400

1600

1750

1500

3

CJT2000

<8000

120

1000

1600

1600

1700

900

2700

1800

1950

2000

3
