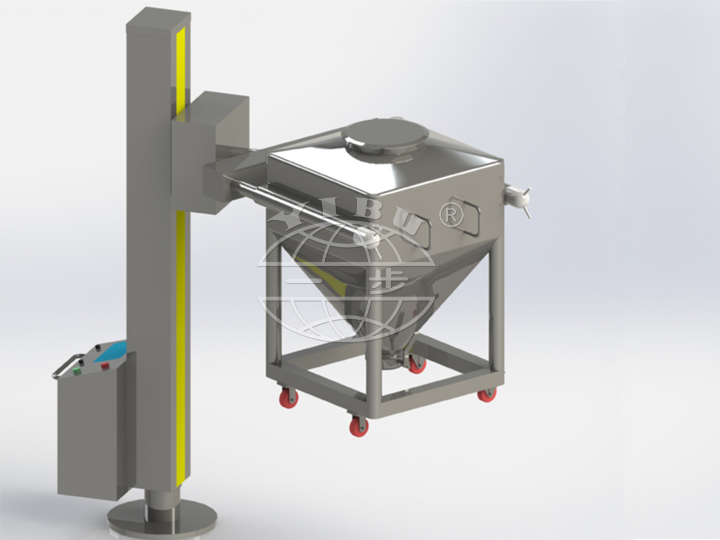

HDT Series Post hopper mixer( Post bin mixer )


Application

The machine has multi-function of mixing, lifting and discharging, etc. One equipment can match several mixing hoppers with different specifications to satisfy the demands of different batches. It is widely used in pharmaceutical, chemical, food and other industries.
Principle
The machine consists of the pillar, bottom plate, turning fork, turning structure, hydraulic system and control system. When it works, it pushes the hopper filled with material into a rotation fork, and tightly locked by nuts, then starts the program, finishes mixing work automatically, and drops the hopper to the ground, next, loosens nuts, and pushes the hopper out.

Feathers

After extensively absorbing foreign advanced technology, taking China's national conditions into consideration, our company develops this new machine. It has proper structure, and covers a small area. Besides, it is highly flexible and adaptable, can not only realize the mixing function, but also lift and discharge, which may reduce equipment’s cost and transfer process. The mixing hopper and rotary axis form an angle of 30 °, contributing to highly efficient mixing effect.

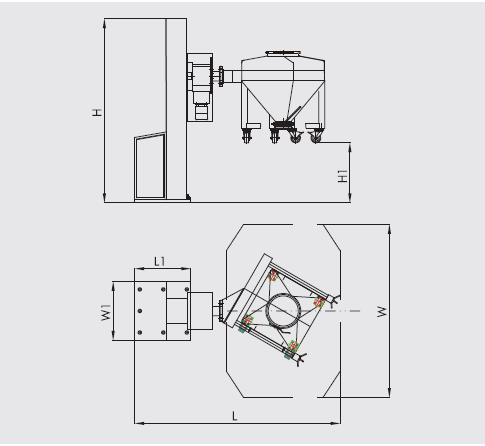

Installation Instruction


Technical parameters


Type

size of the structure

Net load
Kg

Total power
KW

L×W×H

L1

W1

H1

HDT200

2300×1800×2500

600

700

800

150

3

HDT400

2500×2000×2600

600

700

800

300

3.7

HDT600

2700×2200×2500

600

700

800

450

4.5

HDT800

2850×24000×2500

800

900

900

500

7

HDT1000

3000×2600×2500

800

900

900

650

7
