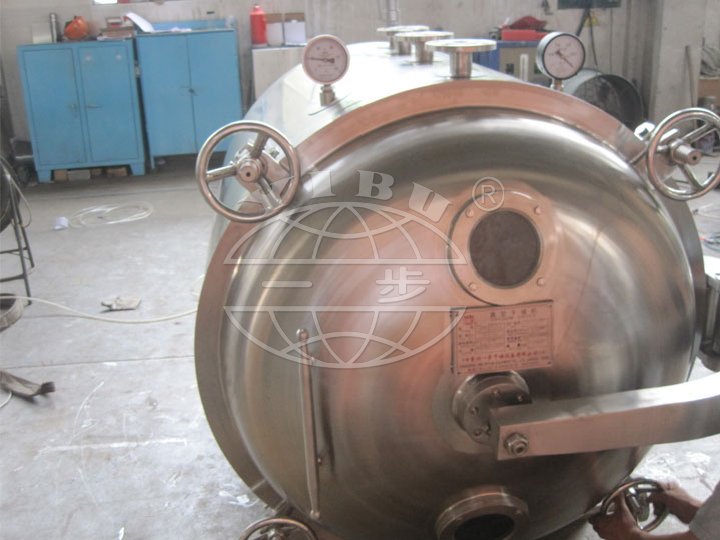

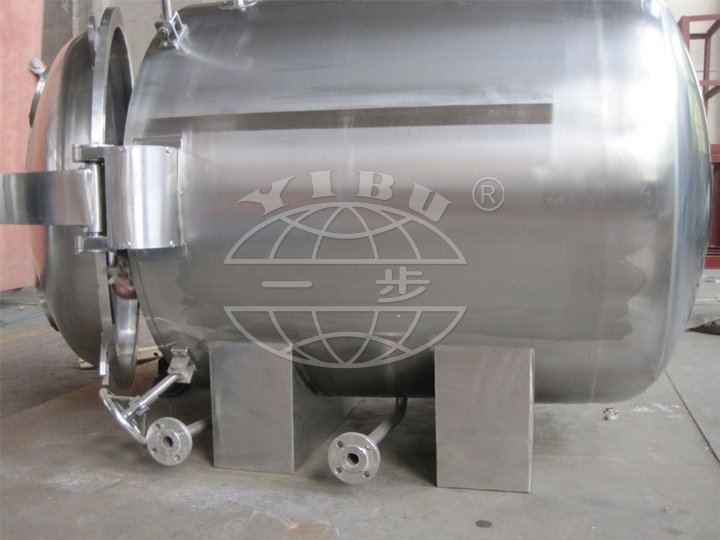

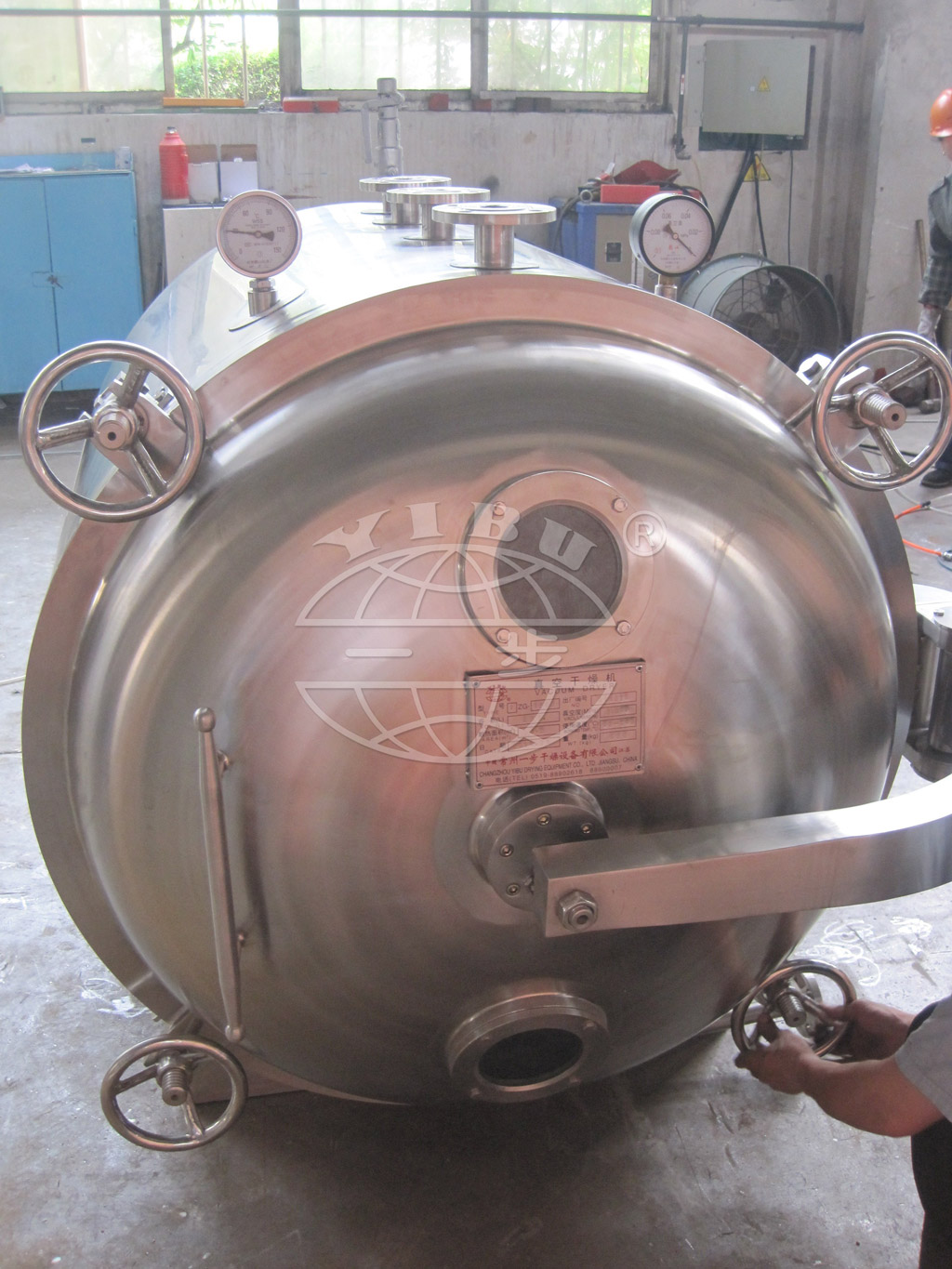

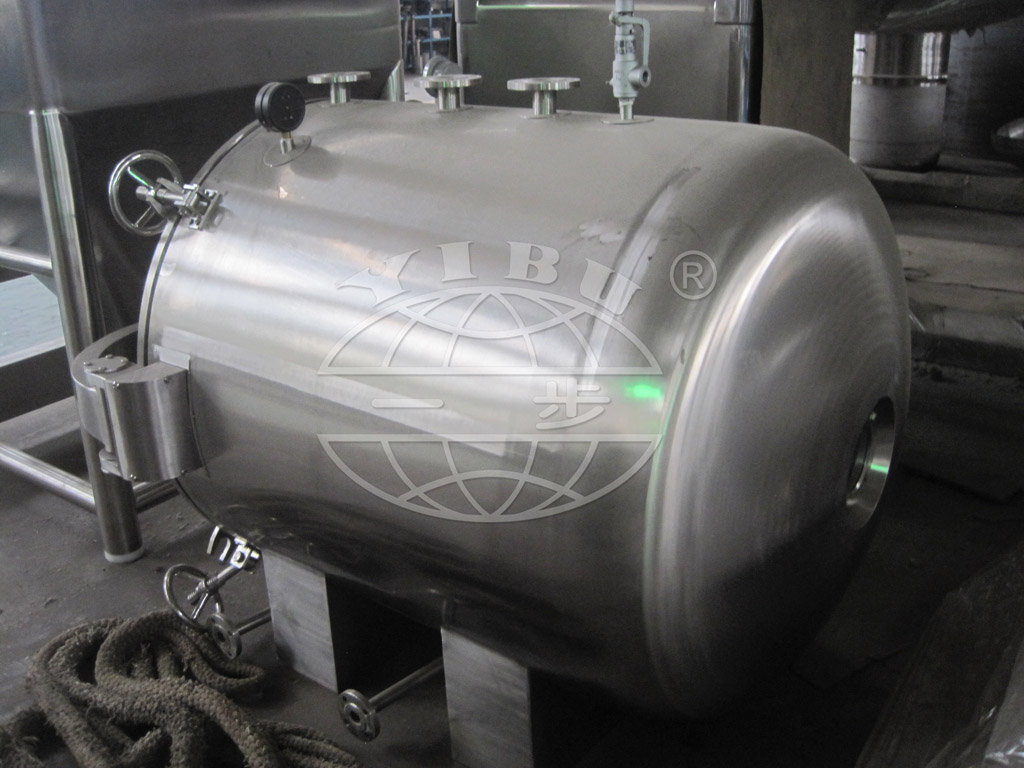

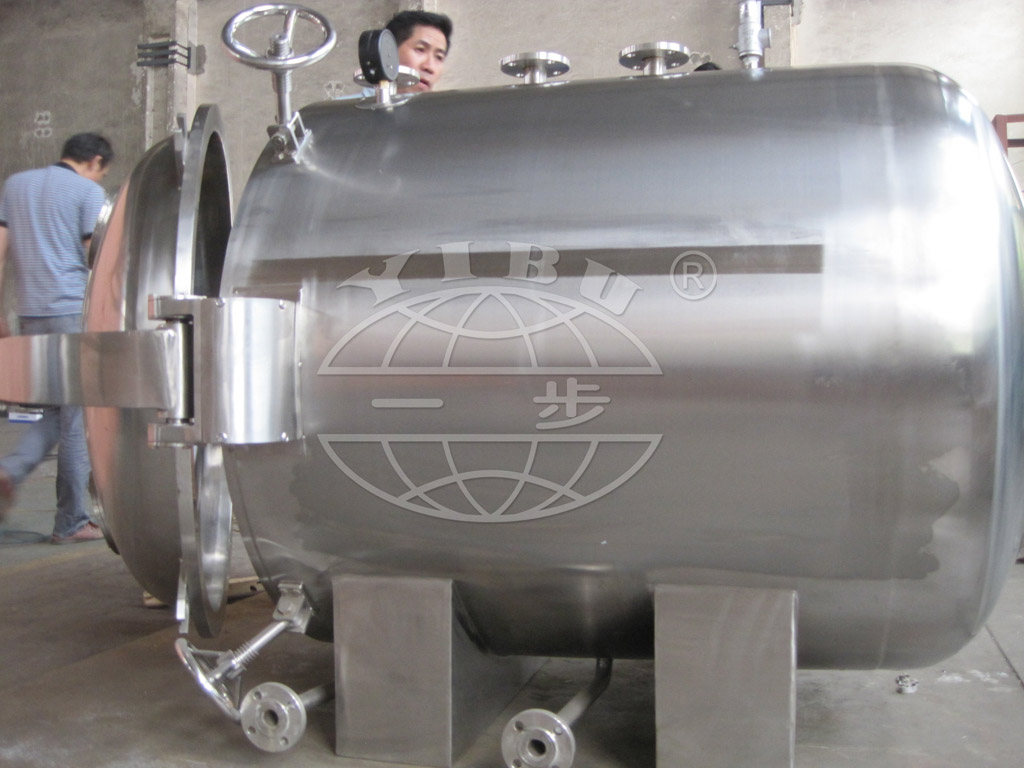

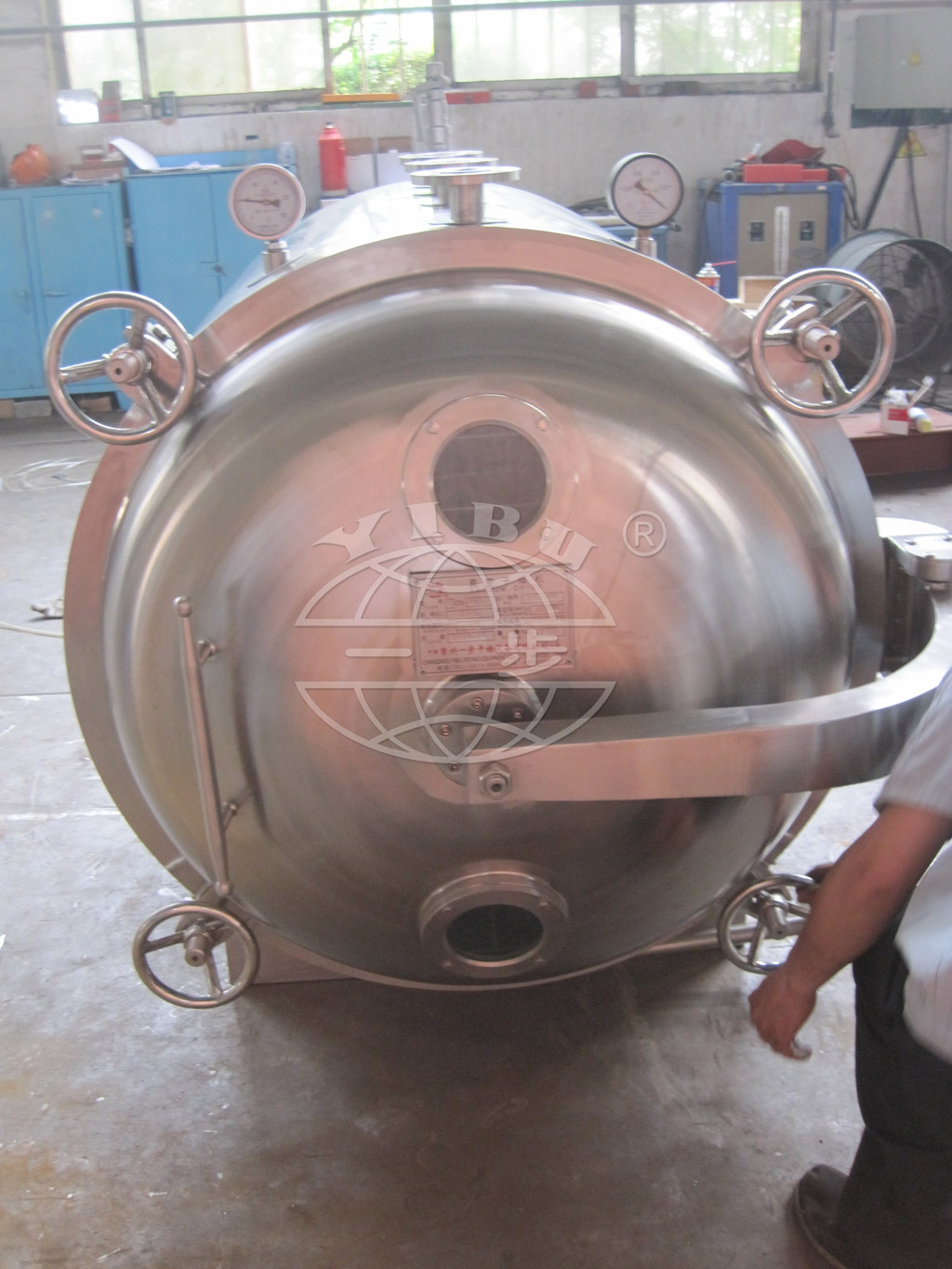

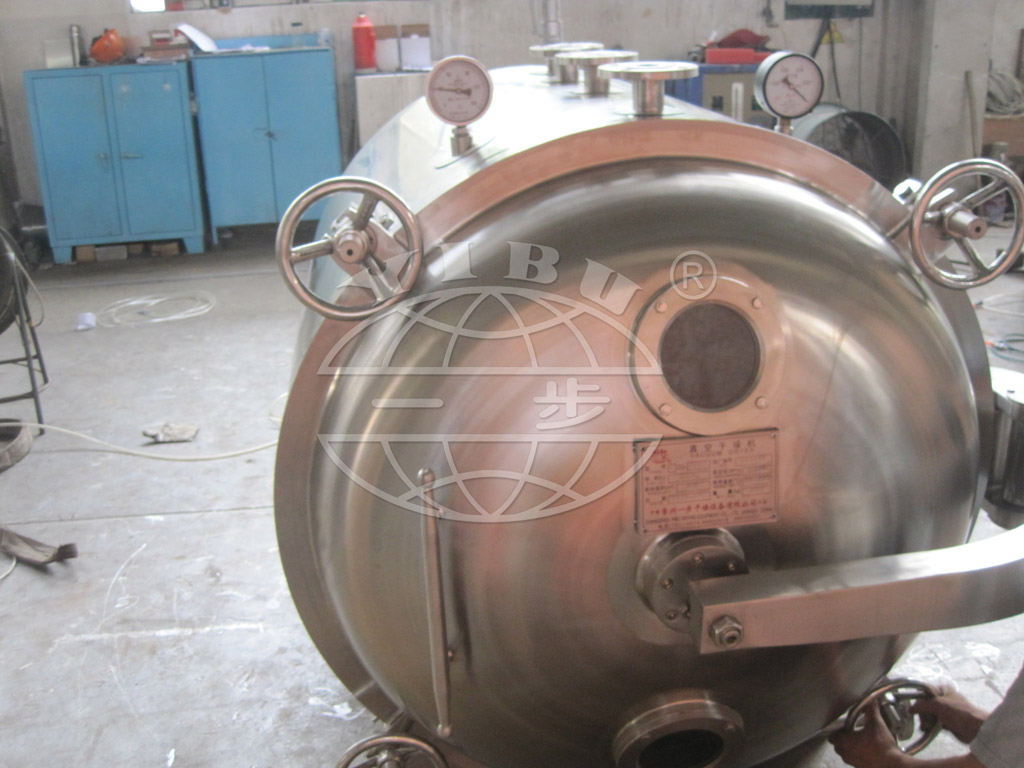

YZG Series Round Shape Vacuum Dryer

Keywords:
Category: Vacuum dryer
Principle It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity …
Order

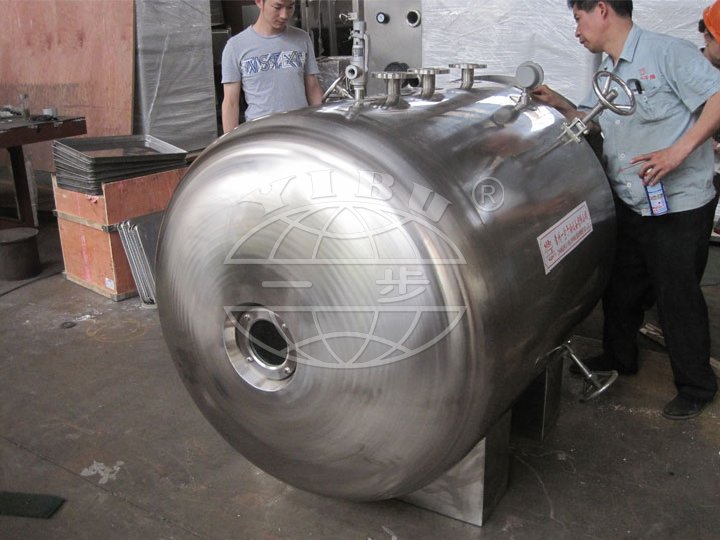

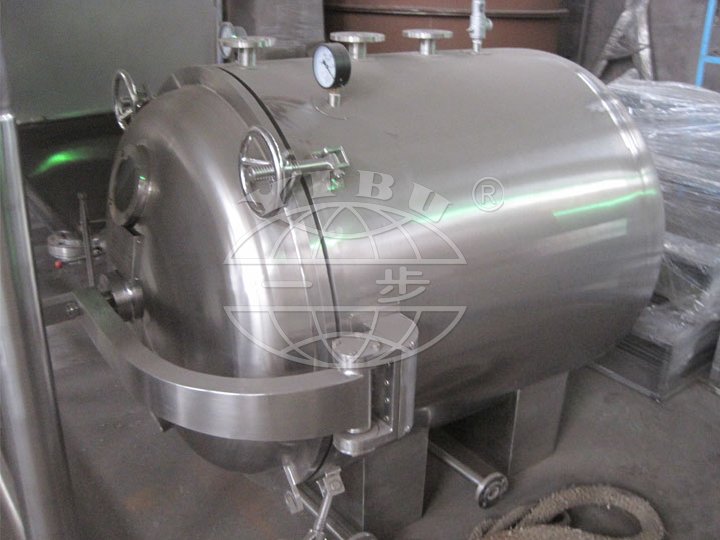

Detail Picture

YZG Series Round Shape Vacuum Dryer



Principle
It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster. Note: if use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the investment and energy could be saved.
It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high   temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.




Feature
1.Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2.The heat source for evaporation may be low pressure steam or surplus heat steam.
The heat loss is less.
3.Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
4.It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.







Application

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

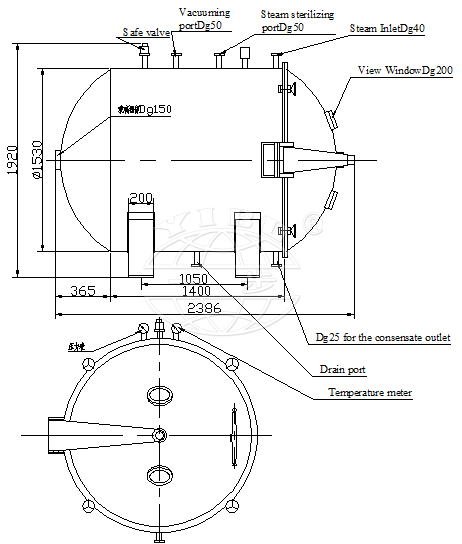

Drawing


Product parameters


name\spec

YZG-600

YZG-1000

YZG-1400

interior size of chamber

Φ600×976

Φ1000×1527

Φ1400×2054

exterior size of chamber

1153×810
×1020

1740×1226
×1385

2386×1657
×1800

layers of baking shelf

4

6

8

interval of baking shelf

81

98

102

size of baking tray

310×600×45

460×640×45

460×640×45

number of baking tray

4

12

32

drying capacity kg

8

24

64

permitted pressure inside the pipe of baking shelf

≤0.784

≤0.784

≤0.784

temperature inside chamber (℃)

≤150

≤150

≤150

vacuum level inside chamber without load

-0.09~0.096

type and power of vacuum pump without condenser

SK-1.5 4kw

SK-3 5.5kw

Sk-6 11kw

weight of drying chamber

250

800

1000
