ZPD Series Vacuum Harrow Dryer( Vacuum Harrow Impeller Dryer)

Keywords:
Category: Vacuum dryer
PrincipleIt is an innovation horizontal batch-type vacuum dryer . The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee …
Order

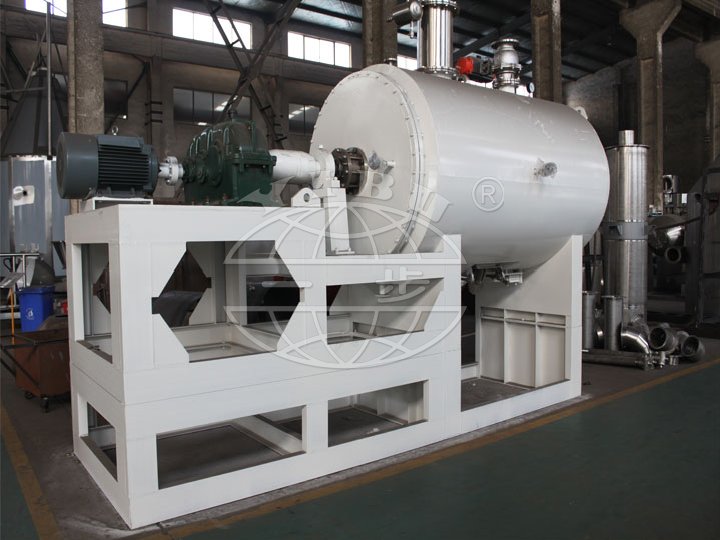

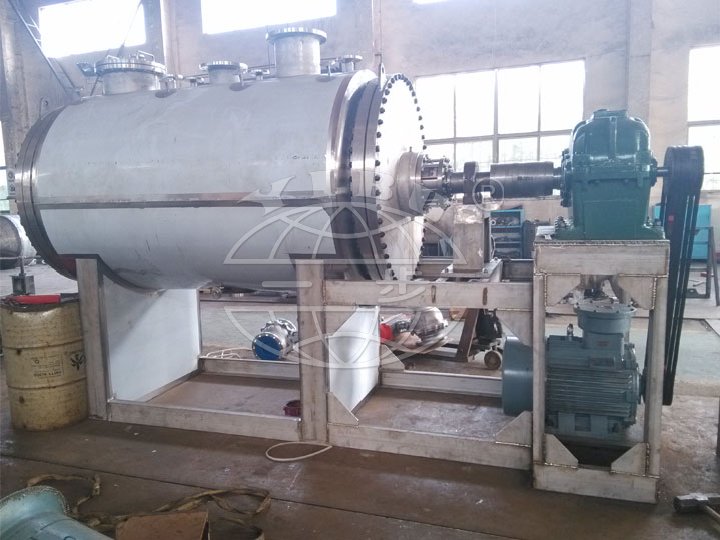

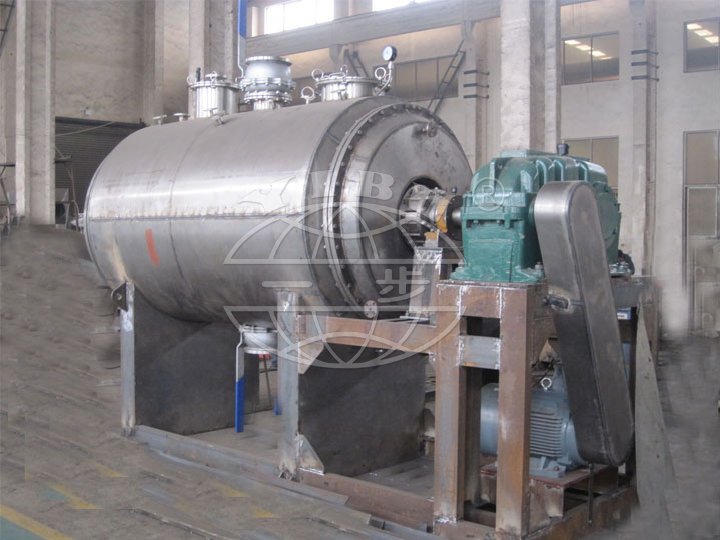

Detail Picture

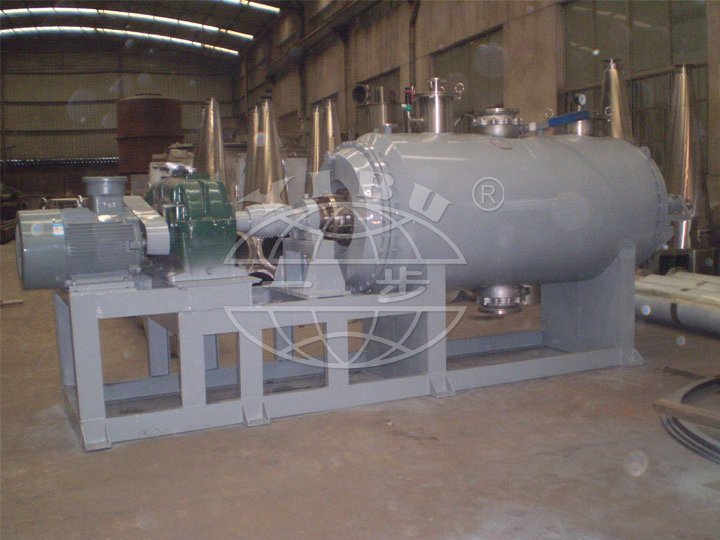

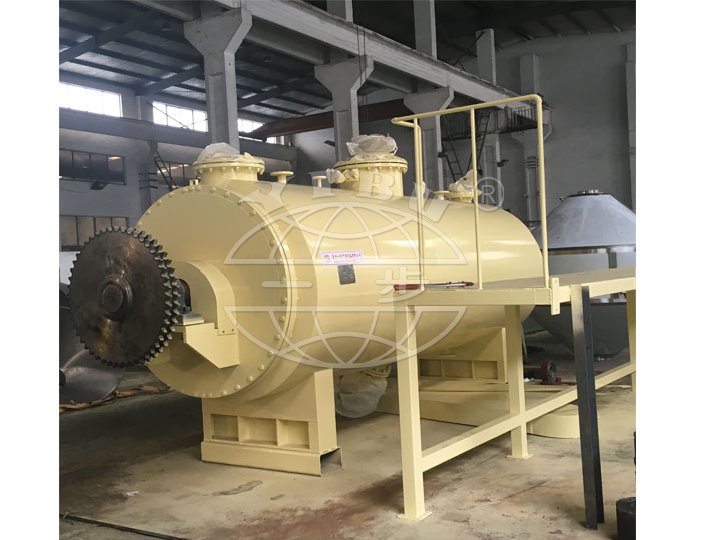

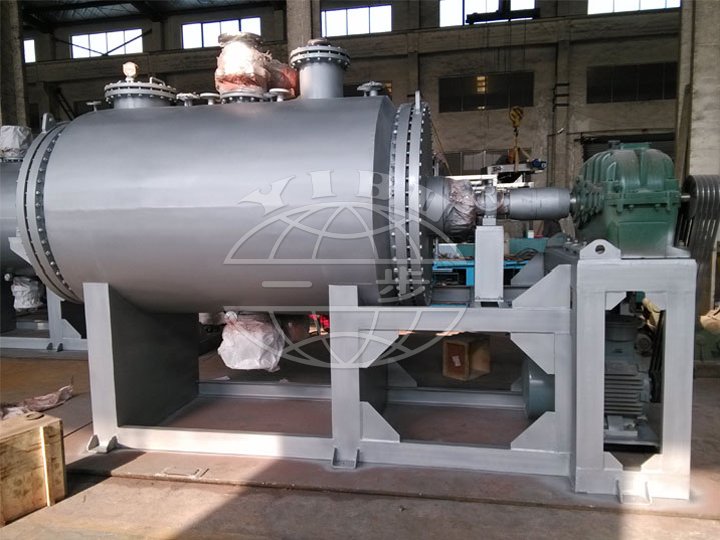

ZPD Series Vacuum Harrow Dryer( Vacuum Harrow Impeller Dryer)



Principle

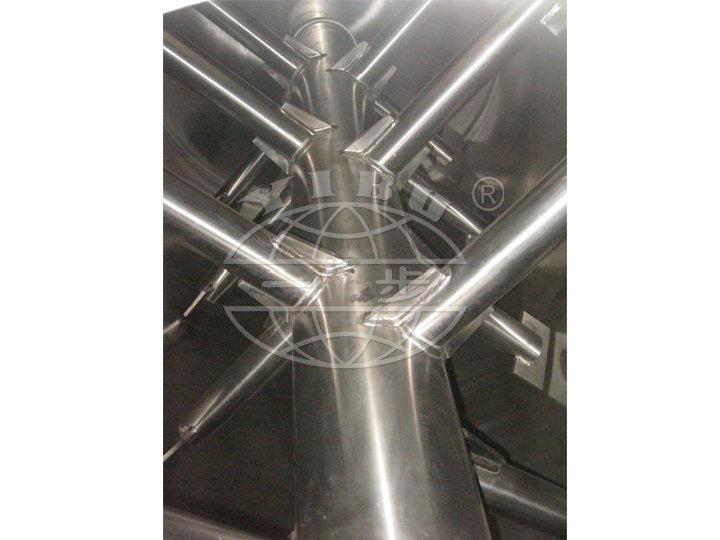

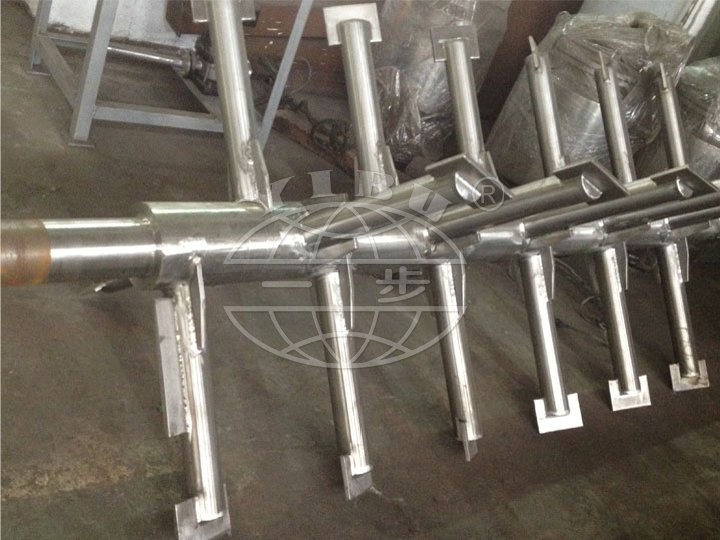

It is an innovation horizontal batch-type vacuum dryer . The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped by vacuum pump.Vacuum harrow dryer is mainly used for drying explosive, easy to be oxidized and paste materials. In the vacuum condition, the boiling point of solvent is decreased, and air is isolated, it avoids the material be oxidized and goes bad. Input heating medium (hot water, hot oil) into the jacket, and feed damp material into the drying chamber. Harrow teeth shaft stirs material to make the heating be uniformly. When achieve the drying requirements, open the discharging valve at the bottom of chamber, under the stirring action of harrow teeth, material moves to the middle and discharged.







Features
1. Widely applicable for quick drying. Because the harrow Vacuum Dryer has jacket that the heating medium will flow into jacket so the dryer has big drying area.
2. To increase the drying efficiency, YIBU design the special crushing device. During drying process, the crushing device will break the caking material to powder; Combined with the magnetic filtration technology, the output product will more purity.
3. Under the vacuum state, the boiling point of the water and solvent is reduced . Therefore it is suitable for most of materials with different properties and states. Particularly it is suitable for material that is easy to explode and oxidize.
4.Low energy consumption .With patented design ,YIBU can ensure that the temperature of the outside surface of the dryer is 25-35℃;It will reduce the heating dissipation;
5. The quality of product is good. Because of periodic clockwise and counterclockwise rotation the material will be uniformly drying.
6. As optional ,the dryer can be combined with cloth bag filter ,solvent recovery unit, Product cooling unit ;
7.Advanced mechanical sealing device adopted .YIBU ensure the vacuum degree and heating medium without leakage.
8. With PLC module , client can save the processing program.
9.Combined with the magnetic filtration technology, the output product will more purity .
10. The electronic systems and their safety should comply with the requirements set forth in 21 CFR Part 11 and cGMP Annex 11;The data should be collected at appropriate time intervals and stored in the system in a fixed format that can be printed out/read;




Application
1.The following raw materials from pharmaceutical industry, foodstuff industry, chemical industry and so on can be dried.
2.Suitable for pulpiness, paste-like mixture or powder raw materials.
Thermal sensitive raw materials having the requirement to dry at lower temperature.
3.Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
4.Raw materials that need to recover solvent.

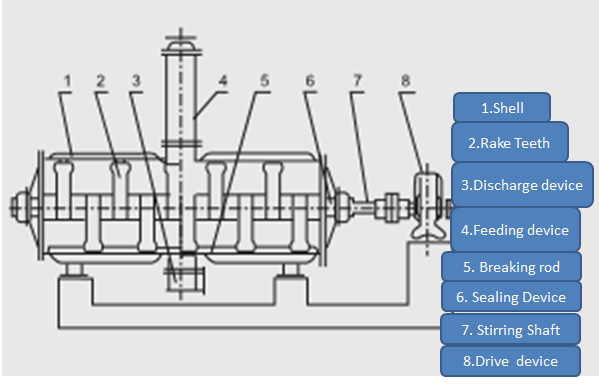

Drawing


Technical parameters


Item

Model

Name

Unit

ZPD-
500

ZPD-
750

ZPD-
1000

ZPD-
1500

ZPD-
2000

ZPD-
3000

ZPD-
5000

Working volume

L

300

450

600

900

1200

1800

3000

Over in the cylinder

Mm

600 × 1500

 800 × 1500

800 × 2000

 1000 × 2000

 1000 × 2600

1200 × 2600

1400 × 3400

Stirring revolution

Rpm

5-25

5-12

5

Power

Kw

4

5.5

5.5

7.5

11

15

22

Design pressure of jacket

Mpa

≤ 0.3

Pressure in the cylinder

MPa

-0.09— -0.096


Note: The evaporated amount of water its related to the characteristics of raw materials and the drying temperature. With renew products unceasingly, the related parameter will be exchanged, it does not announce in advance.
