CJT Series Interfloor Lifter

CJT Series Interfloor Lifter
CJT Series Interfloor Lifter
CJT Series Interfloor Lifter
CJT Series Interfloor Lifter
CJT Series Interfloor Lifter
CJT Series Interfloor Lifter

CJT Series Interfloor Lifter

Vertical transfer of material containers between floor levels.

Suitable for: interfloor material-handling duties within the listed load and height range.
Model:CJT
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview

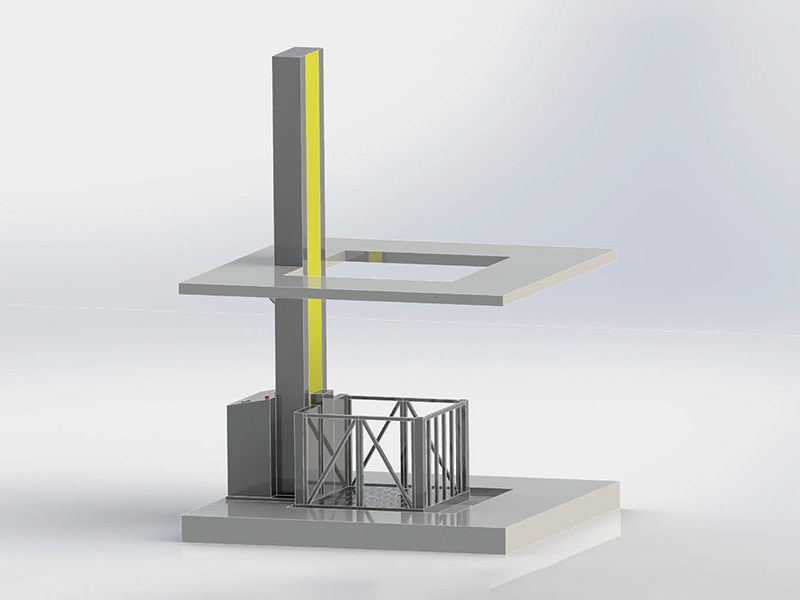

The CJT Series Interfloor Lifter provides vertical transfer of material containers between floor levels. Typical materials and duties include interfloor material-handling duties within the specified load and height range.
Working Principle

The platform travels vertically along the column between floor levels under the lifting drive and control system. At the selected level, the container or material is transferred to the receiving station.


Key Features
Designed for vertical transfer of material containers between floor levels.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Interfloor material-handling duties within the listed load and height range.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
This machine is mainly used for the transfer of materials between upper and lower floors, and is widely used in industries such as pharmaceuticals, chemicals, and food.


Technical Parameters

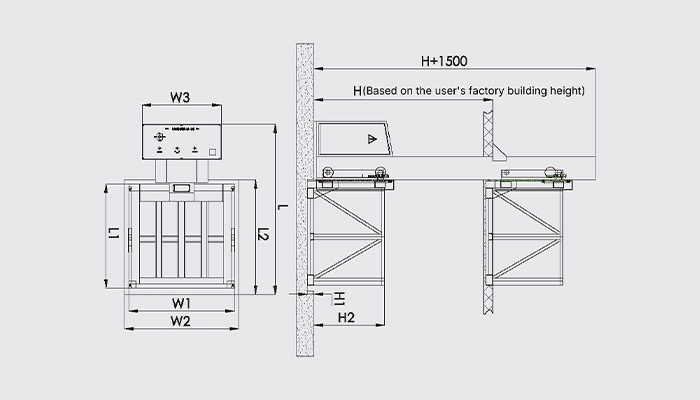

ModelH (mm)H1 (mm)H2 (mm)W1 (mm)W2 (mm)W3 (mm)L (mm)L1 (mm)L2 (mm)Net Load (kg)Lifting Power (kW)
CJT600<8000801000100011007001800120013506002.2
CJT1000<800010010001200130075020001400155010003
CJT1500<800012010001400150075024001600175015003
CJT2000<800012010001600170090027001800195020003


Frequently Asked Questions
What is the primary function of the CJT Series Interfloor Lifter?
Its primary function is vertical transfer of material containers between floor levels.
What materials can be processed?
Interfloor material-handling duties within the listed load and height range. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm the container type, rated load, lifting height, discharge interface, available space, mobility requirement and control arrangement.
