CT-C Series Hot Air Circulation Oven

CT-C Series Hot Air Circulation Oven

Tray drying with recirculated heated air in an oven chamber.

Suitable for: materials that can be loaded on trays for batch hot-air drying.
Model:CT-C
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The CT-C Series Hot Air Circulation Oven provides tray drying with recirculated heated air in an oven chamber. Typical materials and duties include materials that can be loaded on trays for batch hot-air drying.
Working Principle

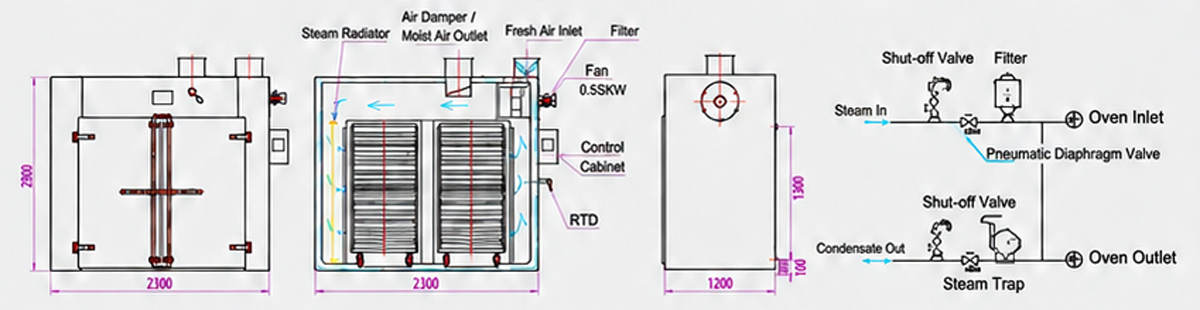

A circulation fan drives heated air through the oven chamber and across the material arranged on trays. Most of the air is recirculated, while a controlled portion of moist air is exhausted and replaced with fresh air.








Key Features
Designed for tray drying with recirculated heated air in an oven chamber.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Materials that can be loaded on trays for batch hot-air drying.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Suitable for heating, solidification, drying, and dehydration of materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, and heavy industry. Examples include active pharmaceutical ingredients, crude drugs, traditional Chinese medicine decoction pieces, extracts, powders, granules, instant granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking paints, etc.


Technical Parameters

ModelEquivalent ModelDrying Capacity (kg/batch)Fan Power (kW)Air Volume (m³/h)Heat-Transfer Area (m²)Steam Consumption (kg/h)Electric Heating (kW)Overall Dimensions (mm)TrolleysTraysWeight (kg)
CT-C-ORXH5-C300.5534505861300×1200×1600016680
CT-C-IARXH-7-C500.553450101091400×1200×2000124800
CT-C-IRXH-14-C100–1200.55×269002018152300×1200×20002481300
CT-C-I(B)RXH-14-C100–1200.55×269002018151400×2200×20002481300
CT-C-IIRXH-27-C200–2400.55×269004036302300×2200×20004961800
CT-C-IIIRXH-41-C300–3600.55×3103508072453300×2200×200061442300
CT-C-III(B)RXH-41-C300–3600.55×3103508072452300×3200×200061442300
CT-C-IVRXH-54-C400–4800.55×41380010090604450×2200×200081922800
CT-C-IV(B)RXH-54-C400–4800.55×41380010090602300×4200×200081922800
CT-C-VI/600–7200.55×620700160144904450×3200×2000122883800


Frequently Asked Questions
What is the primary function of the CT-C Series Hot Air Circulation Oven?
Its primary function is tray drying with recirculated heated air in an oven chamber.
What materials can be processed?
Materials that can be loaded on trays for batch hot-air drying. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm loading form, layer depth, residence time, temperature range, airflow or energy-source configuration, hygiene requirement and handling method.
