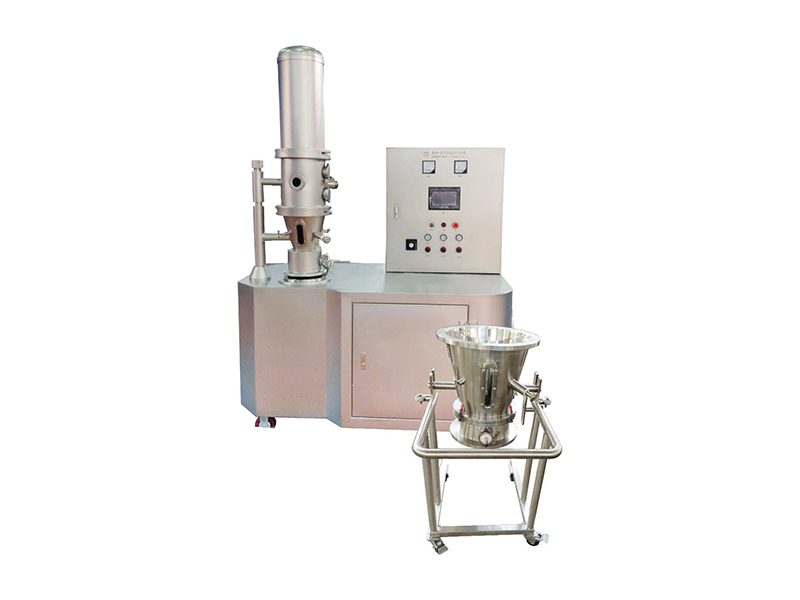

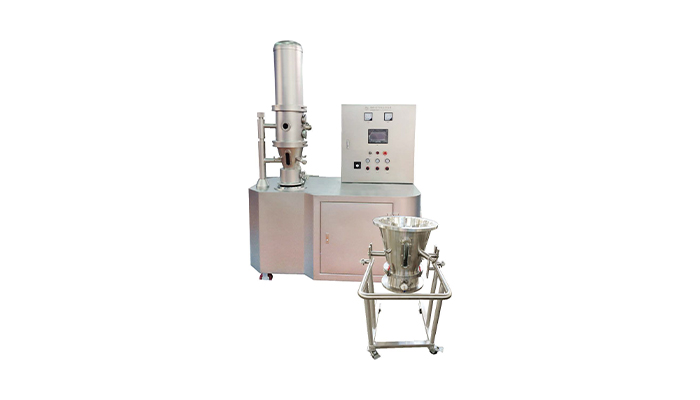

DLB Series Multi-Function Granulator and Coater

DLB Series Multi-Function Granulator and Coater
DLB Series Multi-Function Granulator and Coater
DLB Series Multi-Function Granulator and Coater
DLB Series Multi-Function Granulator and Coater

DLB Series Multi-Function Granulator and Coater

Fluid-bed granulation, drying and coating in a multifunction system.

Suitable for: powders, granules and suitable pellet or particle coating applications.
Model:DLB
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The DLB Series Multi-Function Granulator and Coater provides fluid-bed granulation, drying and coating in a multifunction system. Typical materials and duties include powders, granules and suitable pellet or particle coating applications.
Working Principle

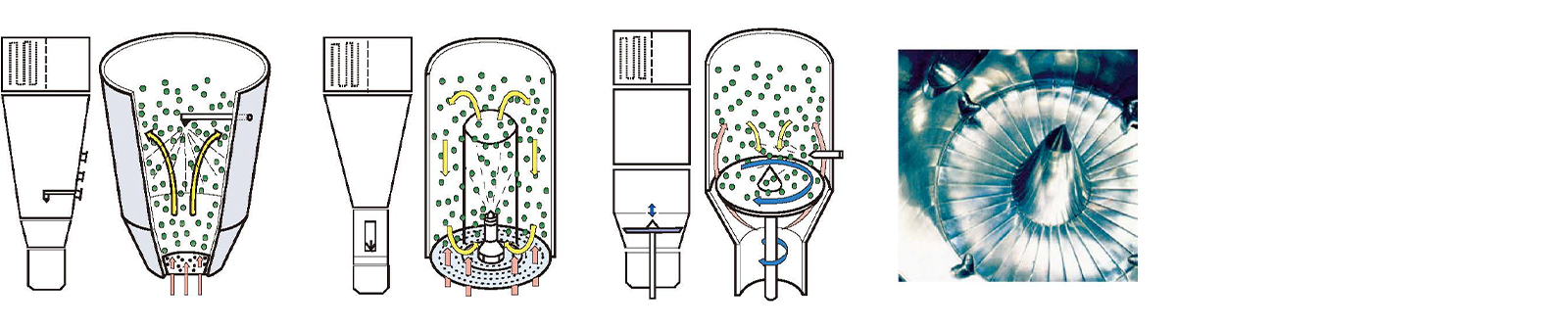

Conditioned air fluidizes the material in the process container. Depending on the selected top-spray, bottom-spray or tangential-spray arrangement, liquid is introduced for granulation, pellet formation or coating while simultaneous heat and mass transfer dries the product.




Key Features
Designed for fluid-bed granulation, drying and coating in a multifunction system.
The equipment and control configuration are selected according to the material and process requirements.

Suitable Materials
Powders, granules and suitable pellet or particle coating applications.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.
Wide Range of Applications
Mixing
For fluidizable materials such as powders, granules, pellets, etc., uniform mixing can be achieved in this equipment. Due to the three-dimensional air movement (horizontal, radial, and tangential directions), the mixing effect is excellent.
Granulation
By spraying binder onto powdered materials, products with various particle size ranges can be produced.
Coating
An efficient bottom-spray system for the material bed, equipped with a novel three-layer nozzle, is used for film coating of powders, granules, or pellets.
Hot-melt coating
Hot-melt materials such as hot wax can be used for film coating of powders, granules, and pellets.
Spray drying
Suspensions are sprayed onto powders.
Cooling
Dry cold air is used to fluidize the materials, achieving product cooling through fluidized boiling.

Technical Parameters

ItemDLB-0.5DLB-1DLB-3DLB-10DLB-30DLB-60DLB-120DLB-150DLB-200DLB-300
Top-Spray Container Volume (L) 4 6 11 38 120 340 450 550 670 1000
Bottom-Spray Container Volume (L) 4.2 6.5 9 40 125 350 460 580 700 1100
Diameter (mm) Φ200 Φ250 Φ300 Φ500 Φ700 Φ1000 Φ1200 Φ1300 Φ1400 Φ1600
Top-Spray Production Capacity (kg) 0.5 1.0 1.2–3 5–10 15–30 30–60 60–120 70–130 100–200 150–300
Bottom-Spray Production Capacity (kg) 0.2–0.4 0.5–0.8 0.6–2 3–6 8–20 15–40 30–80 40–100 60–120 100–200
Induced-Draft Fan Power (kW) 1.1 2.2 4.0 5.5 11 15 18.5 22 30 37
Steam Pressure (MPa) 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4 0.2–0.4
Steam Consumption (kg/h) / / 18 50 70 140 210 250 285 365
Compressed-Air Consumption (m³/h) / / 0.3 0.4 0.6 0.8 1.0 1.0 1.2 2.0
Compressed-Air Pressure (MPa) 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6 0.4–0.6
Temperature (°C) Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C Adjustable from room temperature to 120°C
Noise (dB) ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit ≤75 when the fan is separated from the main unit


Frequently Asked Questions
What is the primary function of the DLB Series Multi-Function Granulator and Coater?
Its primary function is fluid-bed granulation, drying and coating in a multifunction system.
What materials can be processed?
Powders, granules and suitable pellet or particle coating applications. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed characteristics, binder or dry-compaction route, target granule size, required capacity, cleaning needs and downstream process requirements.
