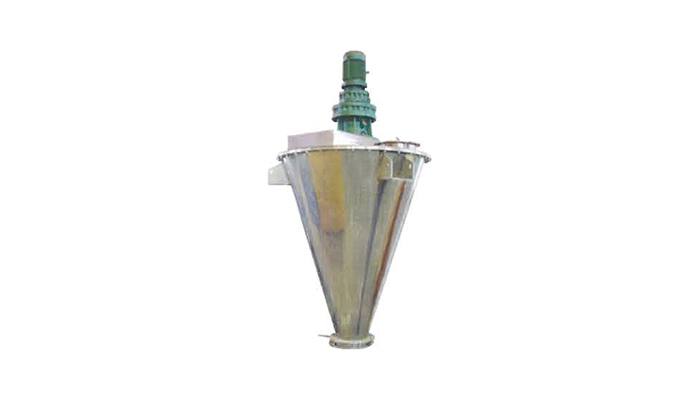

Orbital and self-rotating screw movement within a conical vessel.
Two screws rotate on their own axes while orbiting around the conical vessel. The combined upward conveying and circumferential movement continually redistributes the powder through the batch.
| Item | Unit | DSH0.3 | DSH0.5 | DSH1 | DSH2 | DSH4 | DSH6 | DSH10 |
| Total Volume | m³ | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| Loading Coefficient | — | 0.4–0.6 | 0.4–0.6 | 0.4–0.6 | 0.4–0.6 | 0.4–0.6 | 0.4–0.6 | 0.4–0.6 |
| Mixed-Particle Size | μm | 40–3000 | 40–3000 | 40–3000 | 40–3000 | 40–3000 | 40–3000 | 40–3000 |
| Operating Conditions | — | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight | Ambient temperature and pressure; dust-tight |
| Batch Capacity at ρ = 1 g/cm³ | kg | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| Power | kW | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| Mixing Time | min | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) | 4–10 (determined by testing for special materials) |
| Total Weight | kg | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
