Home
Mixing Equipment

EYH Series Two-Dimensional Motion Mixer

EYH Series Two-Dimensional Motion Mixer
EYH Series Two-Dimensional Motion Mixer

EYH Series Two-Dimensional Motion Mixer

Combined drum rotation and swinging motion in two dimensions.

Suitable for: dry powders and granules suitable for low-shear motion mixing.
Model:EYH
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The EYH Series Two-Dimensional Motion Mixer provides combined drum rotation and swinging motion in two dimensions. Typical materials and duties include dry powders and granules suitable for low-shear motion mixing.
Working Principle

The mixing drum rotates while the swing frame moves it through a second direction. The combined two-dimensional motion causes the material to tumble, roll and redistribute throughout the vessel.


Key Features
Designed for combined drum rotation and swinging motion in two dimensions.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dry powders and granules suitable for low-shear motion mixing.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include dry powders and granules suitable for low-shear motion mixing. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

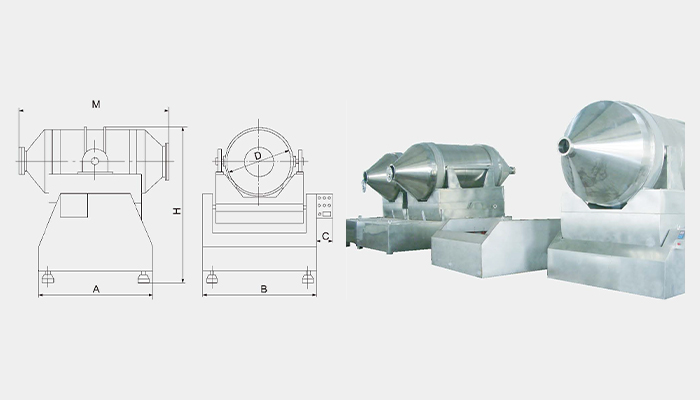

ModelVolume (L)Filling CoefficientFilling Weight (kg)Overall A (mm)Overall B (mm)Overall C (mm)Overall D (mm)Overall M (mm)Overall H (mm)Rotation Power (kW)Swing Power (kW)
EYH1001000.540860900200400100015001.10.75
EYH3003000.57510001100200580140016501.10.75
EYH6006000.515013001250240720180018501.51.1
EYH8008000.520014001350240810197021001.51.1
EYH100010000.535015001390240850204021802.21.5
EYH150015000.5550180015502409802340228031.5
EYH200020000.57502000167024011002540244032.2
EYH250025000.59502200185024011602760260042.2
EYH300030000.511002400191028012202960264054
EYH500050000.51800270022903001440353030007.55.5
EYH10000100000.53000320027003601800424040001511
EYH12000120000.54000340028003601910486042001511
EYH15000150000.550003500300036021005000440018.515


Frequently Asked Questions
What is the primary function of the EYH Series Two-Dimensional Motion Mixer?
Its primary function is combined drum rotation and swinging motion in two dimensions.
What materials can be processed?
Dry powders and granules suitable for low-shear motion mixing. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.
