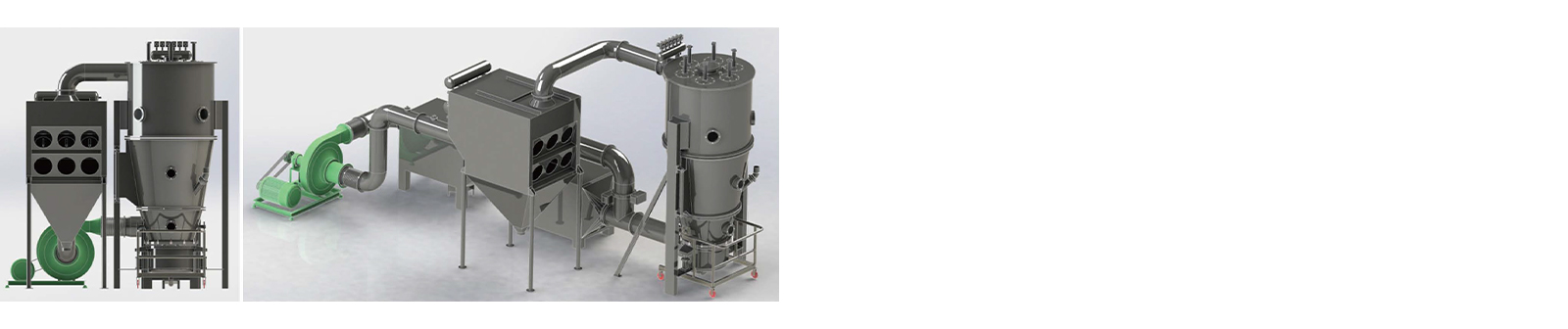

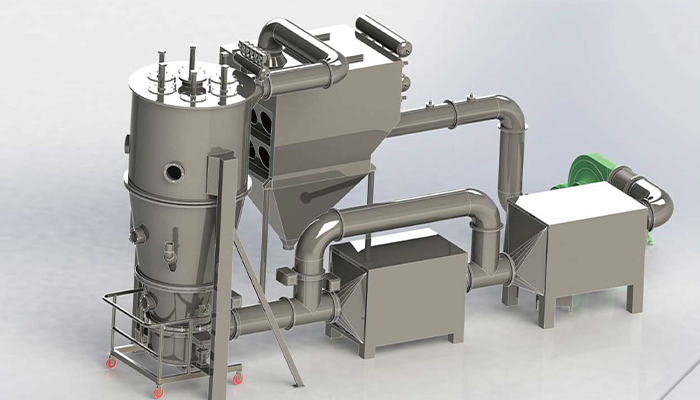

FGBX Series Closed-Circuit Fluid Bed Granulating Dryer

FGBX Series Closed-Circuit Fluid Bed Granulating Dryer
FGBX Series Closed-Circuit Fluid Bed Granulating Dryer

FGBX Series Closed-Circuit Fluid Bed Granulating Dryer

Fluid-bed granulation and drying in a closed-circuit gas system.

Suitable for: materials requiring a closed-circuit processing arrangement, subject to solvent and safety evaluation.
Model:FGBX
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The FGBX Series Closed-Circuit Fluid Bed Granulating Dryer provides fluid-bed granulation and drying in a closed-circuit gas system. Typical materials and duties include materials requiring a closed-circuit processing arrangement, subject to solvent and safety evaluation.
Working Principle

The sealed system is first purged with nitrogen and operated under slight negative pressure. Heated nitrogen fluidizes and dries the material, after which filters retain solids and a condenser removes and recovers vaporized solvent before the gas is reheated and recirculated.


Key Features
Designed for fluid-bed granulation and drying in a closed-circuit gas system.
The equipment and control configuration are selected according to the material and process requirements.


Suitable Materials
Materials requiring a closed-circuit processing arrangement, subject to solvent and safety evaluation.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include materials requiring a closed-circuit processing arrangement, subject to solvent and safety evaluation. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ItemFGBX-5FGBX-10FGBX-30FGBX-60FGBX-120FGBX-200FGBX-300FGBX-500
Total Volume (L)113812034045067010001700
Container Diameter (mm)40060080011001300150016001800
Production Capacity (kg/batch)3–55–1018–3040–6080–120150–200250–300350–500
Airtight Fan Power (kW)4.05.5111518.5304555
Steam Pressure (MPa)0.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.4
Steam Consumption (kg/h)153570120190220330445
Compressed-Air Consumption (m³/min)0.30.40.50.60.81.01.01.5
Compressed-Air Pressure (MPa)0.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.6
Nitrogen Pressure (MPa)0.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.6
Nitrogen Consumption (m³/min)0.150.200.250.300.350.400.500.70
Coolant Pressure (MPa)0.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.40.2–0.4
Coolant Consumption (t/h)3.55.57.512.514.5202840


Frequently Asked Questions
What is the primary function of the FGBX Series Closed-Circuit Fluid Bed Granulating Dryer?
Its primary function is fluid-bed granulation and drying in a closed-circuit gas system.
What materials can be processed?
Materials requiring a closed-circuit processing arrangement, subject to solvent and safety evaluation. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm material particle size, initial and final moisture, temperature sensitivity, required capacity, air-treatment level and exhaust-air arrangement.
