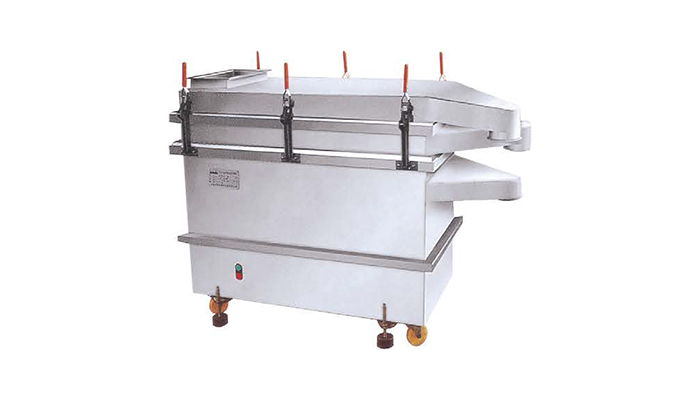

FS Series Square Vibrating Screen

FS Series Square Vibrating Screen
FS Series Square Vibrating Screen

FS Series Square Vibrating Screen

Screening by controlled vibration across a square screen surface.

Suitable for: powders and granules requiring size classification.
Model:FS
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The FS Series Square Vibrating Screen provides screening by controlled vibration across a square screen surface. Typical materials and duties include powders and granules requiring size classification.
Working Principle

The vibration motors drive the square screen body in a controlled reciprocating motion. Material travels across the screen surface, fines pass through the selected mesh, and oversize material leaves through a separate outlet.


Key Features
Designed for screening by controlled vibration across a square screen surface.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Powders and granules requiring size classification.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include powders and granules requiring size classification. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ModelProduction Capacity (kg/h)Mesh Range (mesh)Motor Power (kW)Vibration Frequency (r/min)Exciting Force (kN)Outlet Height—Upper (mm)Outlet Height—Middle (mm)Outlet Height—Lower (mm)Overall Dimensions (L×W×H) (mm)Net Weight (kg)
FS-0.5M2-X4502–1500.2×214000–2.5×28006805001300×770×1060220
FS-0.7M2-X6502–1500.2×214000–2.5×28507505301700×680×1100280
FS-0.8M2-X7502–1500.2×214000–2.5×28507505301600×830×1150320
FS-1.2M2-X11002–1500.4×29600–5×28807605201900×980×1220450
FS-1.6M2-X15002–1500.4×29600.5×29007805302200×1030×1250620
FS-2.0M2-X20002–1500.75×29600.5×29007805302400×1130×1300780


Frequently Asked Questions
What is the primary function of the FS Series Square Vibrating Screen?
Its primary function is screening by controlled vibration across a square screen surface.
What materials can be processed?
Powders and granules requiring size classification. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed form, target particle or granule size, required throughput, heat sensitivity, screen or tool specification, cleaning method and downstream interface.
