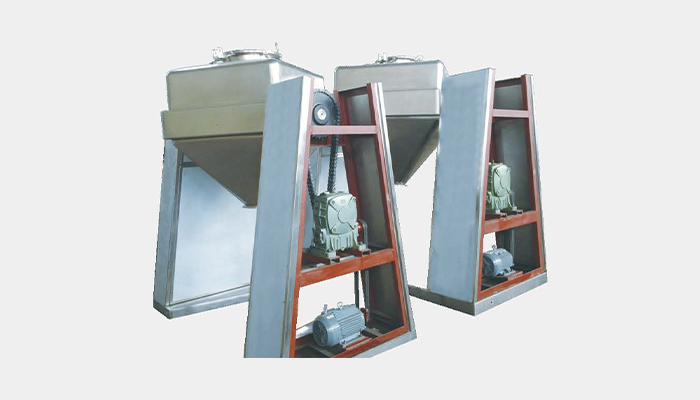

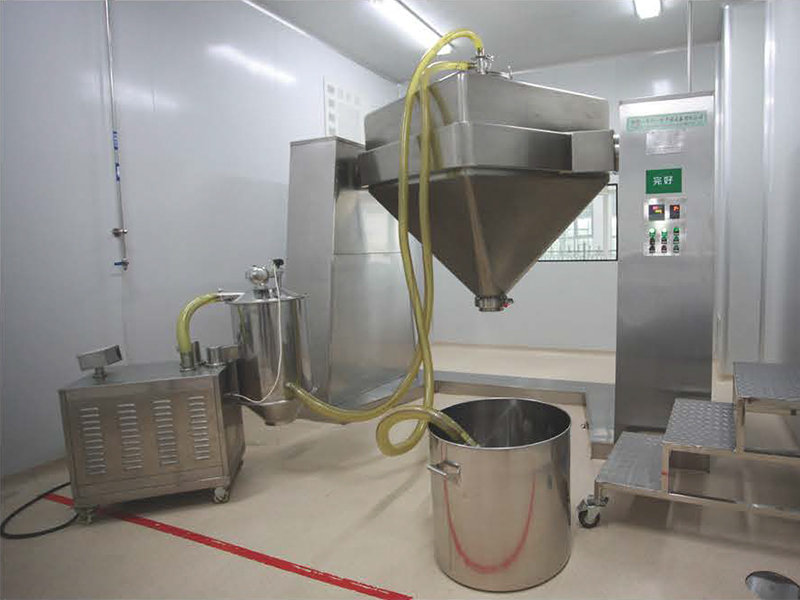

FZH Series Square-Cone Mixer

FZH Series Square-Cone Mixer
FZH Series Square-Cone Mixer
FZH Series Square-Cone Mixer
FZH Series Square-Cone Mixer

FZH Series Square-Cone Mixer

Rotation of a square-cone vessel to redistribute and blend material.

Suitable for: dry powders and granules suitable for tumble mixing.
Model:FZH
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The FZH Series Square-Cone Mixer provides rotation of a square-cone vessel to redistribute and blend material. Typical materials and duties include dry powders and granules suitable for tumble mixing.
Working Principle

The square-cone vessel rotates around its horizontal axis. The changing vessel geometry repeatedly divides, lifts and recombines the material to produce a uniform tumble blend.


Key Features
Designed for rotation of a square-cone vessel to redistribute and blend material.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dry powders and granules suitable for tumble mixing.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include dry powders and granules suitable for tumble mixing. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ItemDimension3005001000150020003000400050006000800010000
Total Volume (L)—3005001000150020003000400050006000800010000
Maximum Filling Volume (L)—21035070010501400210028003500420056007000
Maximum Filling Weight (kg)—1502505007501000150019602450295039504900
Main-Shaft Speed (rpm)—1515121212998877
Motor Power (kW)—1.52.245.57.51115151518.522
Feed-Port Diameter (mm)—380380400400400400400450450480480
Discharge-Port Diameter (mm)—200200200200200200200250250250250
Overall Dimensions (mm)L18502200280029153160380037704360452048905230
Overall Dimensions (mm)W12801550200023002500320031905310357037904050
Overall Dimensions (mm)H19702260285029503200385040304415485048805230
Total Weight (kg)—500700100015002000300040005000600070007800


Frequently Asked Questions
What is the primary function of the FZH Series Square-Cone Mixer?
Its primary function is rotation of a square-cone vessel to redistribute and blend material.
What materials can be processed?
Dry powders and granules suitable for tumble mixing. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.
