High-speed wet mixing and granulation using an agitator and granulating mechanism.

Suitable for: powder blends suitable for wet granulation in pharmaceutical and related processing.
Model:GHL
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The GHL Series High-Speed Mixing Granulator provides high-speed wet mixing and granulation using an agitator and granulating mechanism. Typical materials and duties include powder blends suitable for wet granulation in pharmaceutical and related processing.
Working Principle

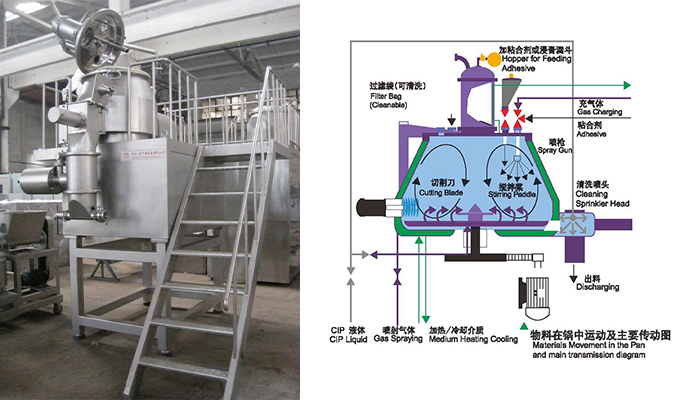

Powder and binder are mixed in the cylindrical vessel by the bottom agitator. A high-speed side chopper breaks and rounds the wetted mass to produce uniform wet granules for the next processing stage.






Key Features
Designed for high-speed wet mixing and granulation using an agitator and granulating mechanism.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Powder blends suitable for wet granulation in pharmaceutical and related processing.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include powder blends suitable for wet granulation in pharmaceutical and related processing. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

Specification51020501001502503004006008001000
Total Volume (L)51020501001502503004006008001000
Working Volume (L)3.57143570105175210280420560700
Batch Output (kg/batch)0.8–1.82–3.54–810–1820–3540–6060–10070–12080–150120–220180–300250–400
Operating Time (min)7–107–107–107–107–107–107–107–107–107–107–107–10
Mixing Speed (rpm)60–60060–600150–50020–20020–20020–20040–18040–18040–18050–12050–12050–120
Chopper Speed (rpm)1000–29001000–29001000–29001000–29001000–29001000–29001000–29001000–29001000–29001000–29001000–29001000–2900
Agitator Power (kW)1.52.24.05.5111518.518.530374555
Chopper Power (kW)0.750.751.52.24.04.05.55.57.5111111
Compressed-Air Consumption (m³/min)0.40.40.40.40.60.60.60.60.60.60.60.6
Compressed-Air Pressure (MPa)0.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.6


Frequently Asked Questions
What is the primary function of the GHL Series High-Speed Mixing Granulator?
Its primary function is high-speed wet mixing and granulation using an agitator and granulating mechanism.
What materials can be processed?
Powder blends suitable for wet granulation in pharmaceutical and related processing. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed characteristics, binder or dry-compaction route, target granule size, required capacity, cleaning needs and downstream process requirements.
