Home
Cabinet & Tray Dryer

GM Series High-Temperature Sterilizing Oven

GM Series High-Temperature Sterilizing Oven
GM Series High-Temperature Sterilizing Oven

GM Series High-Temperature Sterilizing Oven

High-temperature thermal treatment in a controlled oven chamber.

Suitable for: items or materials compatible with the high-temperature sterilizing cycle.
Model:GM
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The GM Series High-Temperature Sterilizing Oven provides high-temperature thermal treatment in a controlled oven chamber. Typical materials and duties include items or materials compatible with the high-temperature sterilizing cycle.
Working Principle

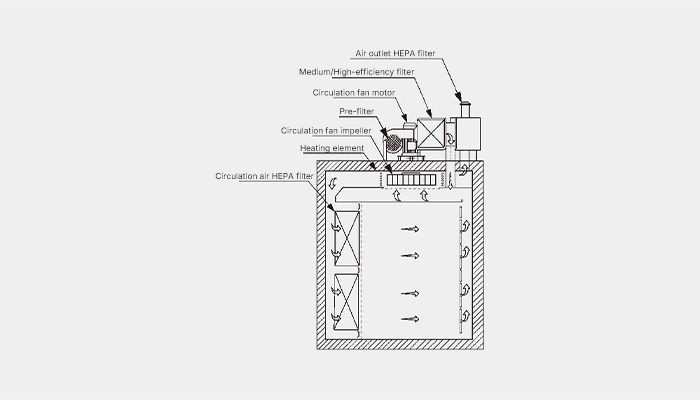

Electric heaters raise the filtered circulating air to the selected high temperature. The controlled hot-air cycle transfers heat to the load, and the chamber temperature is regulated and recorded during sterilization and drying.


Key Features
Designed for high-temperature thermal treatment in a controlled oven chamber.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Items or materials compatible with the high-temperature sterilizing cycle.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include items or materials compatible with the high-temperature sterilizing cycle. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ModelOperating Temperature (°C)Overall A (mm)Overall B (mm)Overall H (mm)Effective A1 (mm)Effective B1 (mm)Effective H1 (mm)Clean-Air Volume at 250°C (m³/h)Clean-Air Pressure at 250°CCleanliness ClassHeating Power (kW)Weight (kg)Temperature-Control DeviationNo-Load Temperature Uniformity
GM100-IRoom temperature19501300200080085011001000700 PaClass 10013.5800≤2°C≤3°C
GM100-IIApprox. 250195021502000800170011003000700 PaClass 100241200≤2°C≤3°C


Frequently Asked Questions
What is the primary function of the GM Series High-Temperature Sterilizing Oven?
Its primary function is high-temperature thermal treatment in a controlled oven chamber.
What materials can be processed?
Items or materials compatible with the high-temperature sterilizing cycle. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm loading form, layer depth, residence time, temperature range, airflow or energy-source configuration, hygiene requirement and handling method.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
