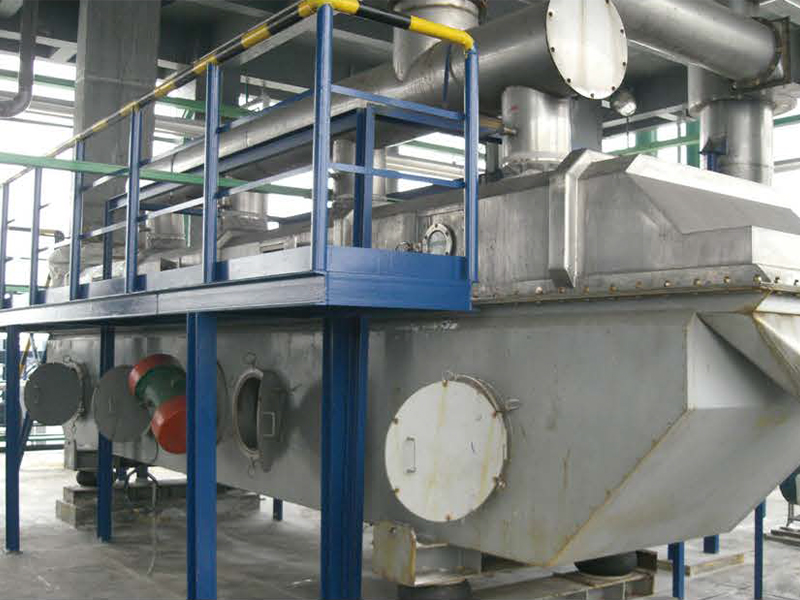

GZQ Series Vibrating Fluid Bed Dryer

GZQ Series Vibrating Fluid Bed Dryer
GZQ Series Vibrating Fluid Bed Dryer
GZQ Series Vibrating Fluid Bed Dryer
GZQ Series Vibrating Fluid Bed Dryer

GZQ Series Vibrating Fluid Bed Dryer

Vibration-assisted fluid-bed drying and cooling.

Suitable for: granular, crystalline or particulate materials that can be conveyed across a vibrating fluidized bed.
Model:GZQ
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The GZQ Series Vibrating Fluid Bed Dryer provides vibration-assisted fluid-bed drying and cooling. Typical materials and duties include granular, crystalline or particulate materials that can be conveyed across a vibrating fluidized bed.
Working Principle

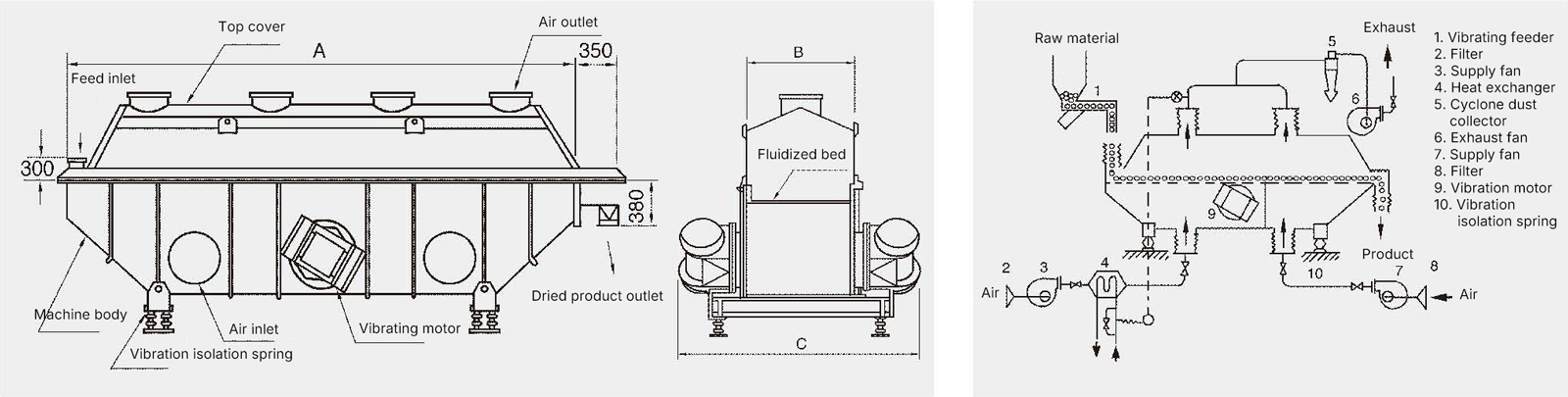

Air enters through the perforated bed plate and fluidizes the material, while vibration conveys it steadily from the feed end to the discharge end. Heat transfer and moisture removal occur during this controlled movement; cooling can be incorporated in the final section when required.

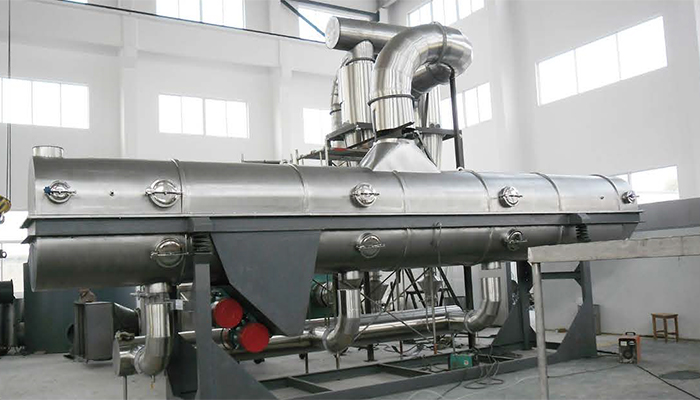

Vibrating Fluid Bed Dryer image




Key Features
Designed for vibration-assisted fluid-bed drying and cooling.
The vibrating fluid bed dryer equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Granular, crystalline or particulate materials that can be conveyed across a vibrating fluidized bed.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.
Wide Range of Applications
Applicable to the drying and cooling of powdery and granular materials in industries such as chemicals, pharmaceuticals, food, dehydrated vegetables, grain, and minerals. Examples include: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizers, shredded radish, soybean meal, distiller's grains, seeds, mineral slag, granulated sugar, etc.

Vibrating Fluid Bed Dryer Technical Parameters

ModelBed Width W (mm)Bed Length L (mm)Overall A (mm)Overall B (mm)Overall C (mm)Vibration-Motor Power (kW)Weight (kg)
GZQ-0.3×33003000350545010500.37×21240
GZQ-0.3×4.53004500500545010500.75×21570
GZQ-0.6×4.56004500500575013501.1×21967
GZQ-0.6×6.06006000651075013501.1×22743
GZQ-0.6×7.56007500801075017501.5×22886
GZQ-0.9×6.090060006510105017501.5×23540
GZQ-0.9×7.590075008010105017502.2×24219
GZQ-1.2×7.5120075008010140022003×25223
GZQ-1.5×7.5150075008010170025004×26426
GZQ-1.8×8.0180080008520200028004×28600
Frequently Asked Questions
What is the primary function of the GZQ Series Vibrating Fluid Bed Dryer?
Its primary function is vibration-assisted fluid-bed drying and cooling.
What materials can be processed?
Granular, crystalline or particulate materials that can be conveyed across a vibrating fluidized bed. Final suitability should be confirmed through material and process evaluation.
How should a vibrating fluid bed dryer model be selected?
Confirm material particle size, initial and final moisture, temperature sensitivity, required capacity, air-treatment level and exhaust-air arrangement.
