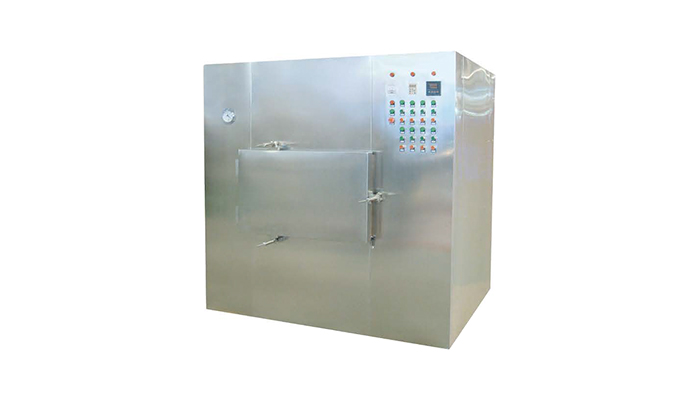

HD Series Microwave Vacuum Dryer

HD Series Microwave Vacuum Dryer
HD Series Microwave Vacuum Dryer

HD Series Microwave Vacuum Dryer

Microwave heating under reduced pressure.

Suitable for: heat-sensitive materials compatible with microwave-vacuum drying.
Model:HD
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The HD Series Microwave Vacuum Dryer provides microwave heating under reduced pressure. Typical materials and duties include heat-sensitive materials compatible with microwave-vacuum drying.
Working Principle

Microwave energy heats the product within a vacuum chamber. Reduced pressure lowers the evaporation temperature, while rotation or controlled movement exposes the material uniformly and the vacuum system removes released vapor.


Key Features
Designed for microwave heating under reduced pressure.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Heat-sensitive materials compatible with microwave-vacuum drying.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
This machine is used for low-temperature drying of heat-sensitive traditional Chinese medicine solid preparations. The use of vacuum concentration equipment results in extremely fast drying speed, which can greatly improve product quality. It features high efficiency, uniform heating, easy control, and convenient installation and maintenance. It can be used for the drying, heating, sterilization, and curing of pharmaceuticals, biological products, and agricultural and sideline products. Its drying effect on various pills and granular materials is particularly excellent. Microwave low-temperature vacuum drying equipment also has the effects of detoxification and sterilization, with linearly adjustable power, intelligent control, and controllable temperature. The produced products are safe and hygienic, and their shelf life can be extended.


Technical Parameters

Equipment Model06R10R15R24F48F
Microwave Power (kW)610152448
Microwave Frequency (MHz)2450 ± 152450 ± 152450 ± 152450 ± 152450 ± 15
Material-Spreading Area (m²)11.5248
Evaporation Capacity (kg/h)6–910–1315–2024–3040–60
Tray Speed (rpm)0–50–50–50–50–5
Vacuum Level (MPa)≥0.095≥0.095≥0.095≥0.095≥0.095
Leak Rate≤5≤5≤5≤5≤5
Overall Dimensions (m)1.5×1.8×2.11.6×1.8×2.11.85×2.4×2.23.1×2.7×23.1×2.7×2.2


Frequently Asked Questions
What is the primary function of the HD Series Microwave Vacuum Dryer?
Its primary function is microwave heating under reduced pressure.
What materials can be processed?
Heat-sensitive materials compatible with microwave-vacuum drying. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm loading form, layer depth, residence time, temperature range, airflow or energy-source configuration, hygiene requirement and handling method.
