Home
Mixing Equipment

HDT Series Single-Arm Lifting Hopper Mixer

HDT Series Single-Arm Lifting Hopper Mixer
HDT Series Single-Arm Lifting Hopper Mixer

HDT Series Single-Arm Lifting Hopper Mixer

Lifting and rotating a hopper to blend contained material.

Suitable for: dry powders and granules suitable for bin blending.
Model:HDT
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The HDT Series Single-Arm Lifting Hopper Mixer provides lifting and rotating a hopper to blend contained material. Typical materials and duties include dry powders and granules suitable for bin blending.
Working Principle

The arm lifts the closed hopper and rotates it about the horizontal axis. Repeated inversion and gravity-driven redistribution of the material produce the mixing action before the hopper is lowered for transfer.


Key Features
Designed for lifting and rotating a hopper to blend contained material.
The equipment and control configuration are selected according to the material and process requirements.


Suitable Materials
Dry powders and granules suitable for bin blending.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
This machine has functions such as lifting-mixing and lifting-discharging. One unit can be equipped with multiple mixing hoppers of different specifications to meet the mixing requirements of multiple varieties and different batch sizes. It is widely used in industries such as pharmaceuticals, chemicals, and food.

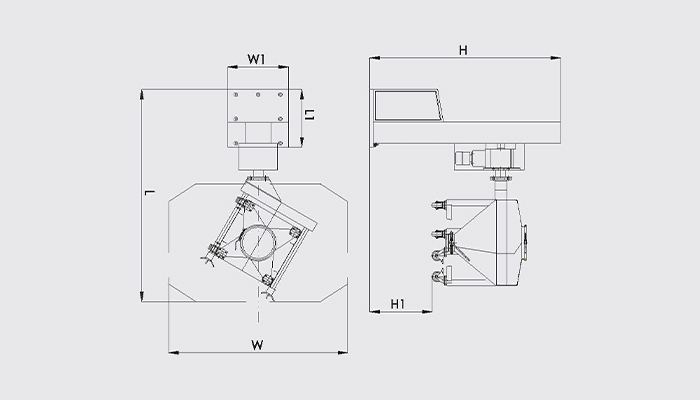

Technical Parameters

ModelOverall Dimensions (L×W×H) (mm)L1 (mm)W1 (mm)H1 (mm)Net Load (kg)Total Power (kW)
HDT2002300×1800×25006007008001503
HDT4002500×2000×26006007008003003.7
HDT6002700×2200×25006007008004504.5
HDT8002850×2400×25008009009005007
HDT10003000×2600×25008009009006507


Frequently Asked Questions
What is the primary function of the HDT Series Single-Arm Lifting Hopper Mixer?
Its primary function is lifting and rotating a hopper to blend contained material.
What materials can be processed?
Dry powders and granules suitable for bin blending. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
