HLD Series Hopper Mixer

HLD Series Hopper Mixer

Rotation of a loaded hopper to blend material.

Suitable for: dry powders and granules suitable for hopper blending.
Model:HLD
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The HLD Series Hopper Mixer provides rotation of a loaded hopper to blend material. Typical materials and duties include dry powders and granules suitable for hopper blending.
Working Principle

The loaded hopper is clamped to the rotating frame and turns through the programmed mixing cycle. Gravity repeatedly divides, rolls and recombines the material before the hopper is removed for the next process step.


Key Features
Designed for rotation of a loaded hopper to blend material.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dry powders and granules suitable for hopper blending.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
The bin blender is the most widely used mixing equipment for solid powder and granular drugs in the international pharmaceutical industry. It has a high mixing uniformity, and the bin is movable, which greatly facilitates loading, mixing, discharging, and cleaning. It can be organically connected with front and rear process equipment to form a production line, effectively overcoming cross-contamination and dust caused by repeated material transfer. This machine can be equipped with bins of different specifications to meet the mixing requirements of large batches and multiple varieties. It is an ideal equipment for final and batch mixing in pharmaceutical factories, and it also has a wide range of applications in the chemical, food, and light industries.


Technical Parameters

ItemDimensionHLD800HLD1000HLD1200HLD1500HLD2000
Hopper Volume (L)—8001000120015002000
Maximum Filling Coefficient—≤80%≤80%≤80%≤80%≤80%
Maximum Filling Weight (kg)—4005006207501000
Motor Power (kW)—7779.79.7
Main-Shaft Speed (rpm)—1–121–121–121–121–12
Total Weight (kg)—25002800300035004000

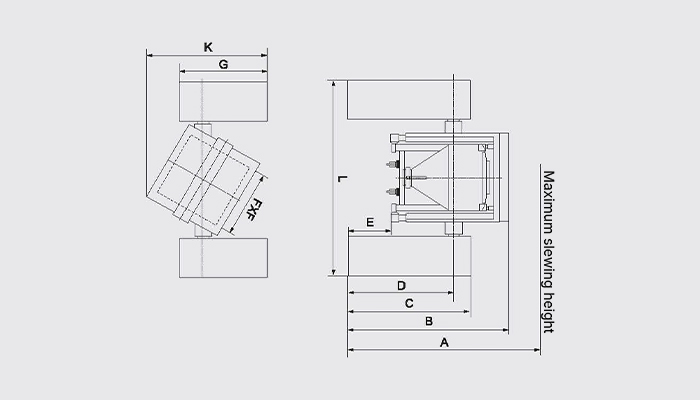

Overall Dimensions (mm)A28002850295031753530
Overall Dimensions (mm)B21002200230025002960
Overall Dimensions (mm)C16501750180019602140
Overall Dimensions (mm)D14001450150016401840
Overall Dimensions (mm)E400400400500600
Overall Dimensions (mm)F10001100120012501400
Overall Dimensions (mm)G14001400140014501500
Overall Dimensions (mm)L30503300340035503680
Overall Dimensions (mm)K20002150215022002320


Frequently Asked Questions
What is the primary function of the HLD Series Hopper Mixer?
Its primary function is rotation of a loaded hopper to blend material.
What materials can be processed?
Dry powders and granules suitable for hopper blending. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.
