Home
Pharmaceutical Equipment

High-Efficiency Pulverizer Unit

High-Efficiency Pulverizer Unit
High-Efficiency Pulverizer Unit

High-Efficiency Pulverizer Unit

Mechanical size reduction in an integrated pulverizing unit.

Suitable for: dry materials compatible with the listed pulverizing mechanism.
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ

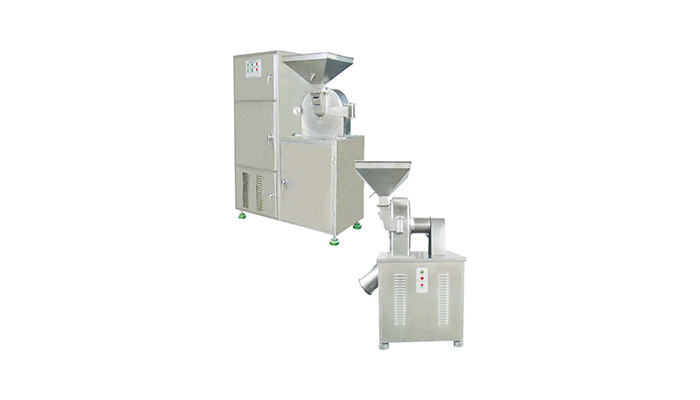

Product Overview
The High-Efficiency Pulverizer Unit provides mechanical size reduction in an integrated pulverizing unit. Typical materials and duties include dry materials compatible with the specified pulverizing mechanism.
Working Principle

Material is fed to the high-speed pulverizing chamber, where impact and cutting reduce the particle size. The powder is conveyed to the cyclone and bag collection stages for separation from the air stream.


Key Features
Designed for mechanical size reduction in an integrated pulverizing unit.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dry materials compatible with the listed pulverizing mechanism.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include dry materials compatible with the specified pulverizing mechanism. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ItemUnit20B30B40B60B
Production Capacitykg/h60–150100–300160–800500–1500
Main-Shaft Speedr/min4500380034002800
Feed Particle Sizemm6101215
Pulverized Particle Sizemesh60–15060–12060–12060–120
Pulverizer Motor PowerkW45.51115
Dust-Extraction Fan PowerkW1.51.51.52.2
Weightkg250320550680
Main-Unit Dimensions (L×W×H)mm550×600×1250600×700×1450800×900×15501000×900×1680
Complete-Unit Dimensions (L×W×H)mm1100×600×16501200×650×16501350×700×17001550×1000×1750


Frequently Asked Questions
What is the primary function of the High-Efficiency Pulverizer Unit?
Its primary function is mechanical size reduction in an integrated pulverizing unit.
What materials can be processed?
Dry materials compatible with the listed pulverizing mechanism. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed form, target particle or granule size, required throughput, heat sensitivity, screen or tool specification, cleaning method and downstream interface.
