Home
Cabinet & Tray Dryer

JCT Series Through-Flow Clean Oven (Built-In Type)

JCT Series Through-Flow Clean Oven (Built-In Type)
JCT Series Through-Flow Clean Oven (Built-In Type)

JCT Series Through-Flow Clean Oven (Built-In Type)

Clean through-flow hot-air drying with a built-in system arrangement.

Suitable for: tray-loaded materials requiring the built-in clean configuration.
Model:JCT
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The JCT Series Through-Flow Clean Oven (Built-In Type) provides clean through-flow hot-air drying with a built-in system arrangement. Typical materials and duties include tray-loaded materials requiring the built-in clean configuration.

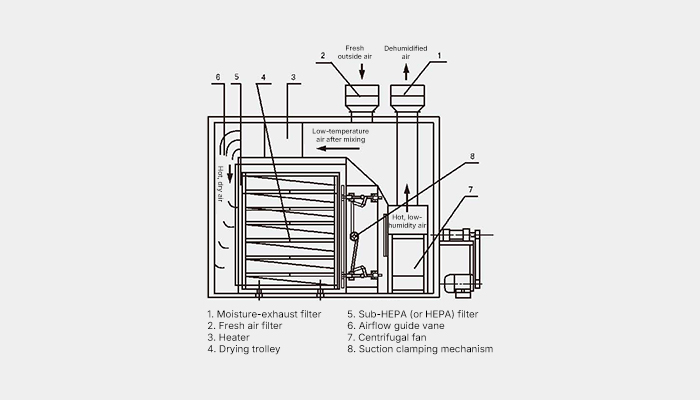

Working Principle

The built-in circulation fan and heaters move filtered hot air through the chamber and vertically through the loaded trays. Recirculation maintains the drying environment while moisture-bearing air is discharged through the exhaust path.


Key Features
Designed for clean through-flow hot-air drying with a built-in system arrangement.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Tray-loaded materials requiring the built-in clean configuration.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include tray-loaded materials requiring the built-in clean configuration. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ModelDrying Capacity (kg/batch)Installed Power (kW)Steam Consumption (kg/h)Heating Area (m²)Air Volume (m³/h)Top-to-Bottom Temperature Difference (°C)Tray Dimensions (mm)Number of TraysOverall Dimensions (mm)Weight (kg)
JCT-C-I100440–80504000–7300±2550×610×80102350×1400×22802200
JCT-C-II2007.580–120807200–15800±2530×610×80203100×1600×27004000


Frequently Asked Questions
What is the primary function of the JCT Series Through-Flow Clean Oven (Built-In Type)?
Its primary function is clean through-flow hot-air drying with a built-in system arrangement.
What materials can be processed?
Tray-loaded materials requiring the built-in clean configuration. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm loading form, layer depth, residence time, temperature range, airflow or energy-source configuration, hygiene requirement and handling method.
