Home
Lifting & Handling Equipment

LDT Series Hopper Lifter/Feeder

LDT Series Hopper Lifter/Feeder
LDT Series Hopper Lifter/Feeder

LDT Series Hopper Lifter/Feeder

Lifting a hopper and feeding material into downstream equipment.

Suitable for: compatible hoppers and receiving equipment.
Model:LDT
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The LDT Series Hopper Lifter/Feeder provides lifting a hopper and feeding material into downstream equipment. Typical materials and duties include compatible hoppers and receiving equipment.
Working Principle

A hydraulic lifting mechanism raises the hopper along the column. At the set height the hopper is rotated or positioned over the receiving equipment, the discharge valve is opened, and material is transferred by gravity.


Key Features
Designed for lifting a hopper and feeding material into downstream equipment.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Compatible hoppers and receiving equipment.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
This machine is mainly used for the lifting and loading of square stainless steel rotary hoppers. It can be used in conjunction with equipment such as tablet presses, mixers, and granulators. It is widely used in industries such as pharmaceuticals, chemicals, and food.

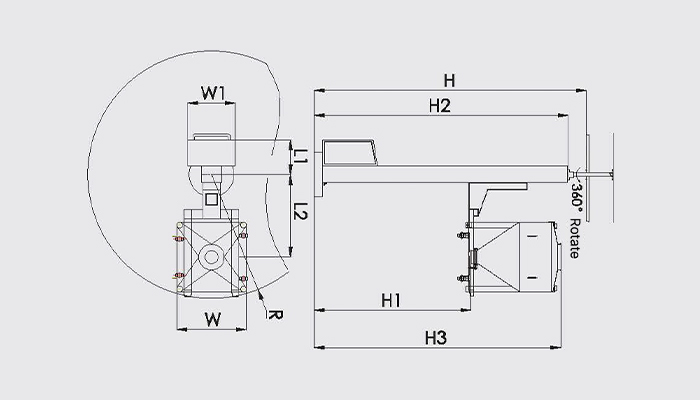

Technical Parameters

ModelH (mm)H1 (mm)H2 (mm)H3 (mm)W (mm)W1 (mm)R (mm)L1 (mm)L2 (mm)Net Load (kg)Lifting Power (kW)
LDT200>350025003500335060070016005508001601.5
LDT400>3800250038003630800700180055010003201.5
LDT600>38002500380036901000700200055011004802.2
LDT800>40002500400038901000750200060011006402.2
LDT1000>42002500400039901200750210060013008003
LDT1200>42002500420041301200750210060013009603
LDT1500>460025004400434012007502100650130012003
LDT2000>480025004600462012007502100650130016003
LDT2500>450020004200440014007502200700135020003
LDT3000>480020004200465014007502200700135024003


Frequently Asked Questions
What is the primary function of the LDT Series Hopper Lifter/Feeder?
Its primary function is lifting a hopper and feeding material into downstream equipment.
What materials can be processed?
Compatible hoppers and receiving equipment. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm the container type, rated load, lifting height, discharge interface, available space, mobility requirement and control arrangement.
