Home
Auxiliary Equipment

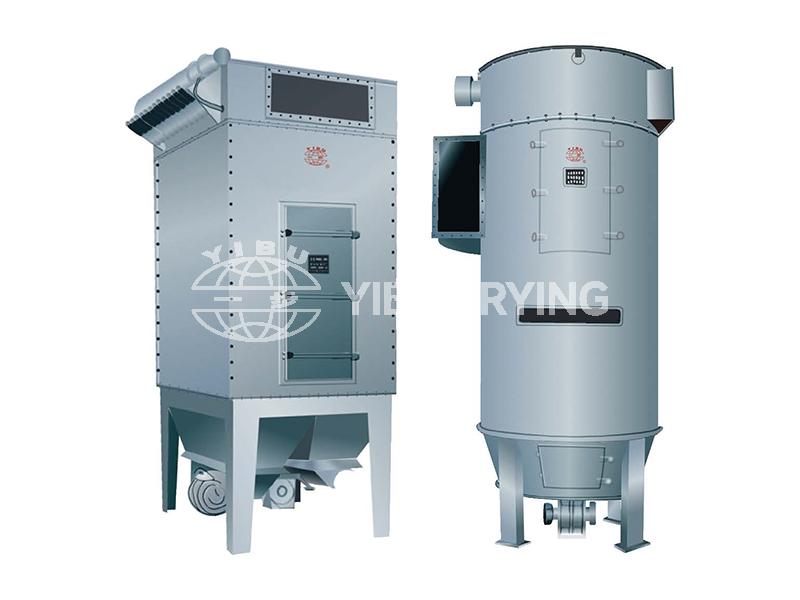

MC Series Pulse-Jet Bag Filter

MC Series Pulse-Jet Bag Filter
MC Series Pulse-Jet Bag Filter

MC Series Pulse-Jet Bag Filter

Separation of dust from process gas with pulse-cleaned filter bags.

Suitable for: dust collection duties compatible with the filter arrangement.
Model:MC
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The MC Series Pulse-Jet Bag Filter provides separation of dust from process gas with pulse-cleaned filter bags. Typical materials and duties include dust collection duties compatible with the filter arrangement.
Working Principle

Dust-laden gas passes through the filter bags, which retain the particles while clean gas exits the unit. Timed compressed-air pulses expand and clean the bags, causing accumulated dust to fall into the hopper.


Key Features
Designed for separation of dust from process gas with pulse-cleaned filter bags.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dust collection duties compatible with the filter arrangement.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include dust collection duties compatible with the filter arrangement. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ModelMC24MC36MC48MC60MC72MC84MC96MC120MC180MC200MC260MC320MC380MC400MC500MC600MC800
Filtration Area (m²)1827364554637290135150195240285300375450600
Number of Filter Bags24364860728496120180200260320380400500600800
Filtration Velocity (m/min)1–21–21–21–21–21–21–21–21–21–21–21–21–21–21–21–21–2
Filtration Airflow (m³/h)1300–26001950–39002600–52003240–64803900–78004550–91005200–105006500–130009720–1944010800–2160014040–2808017280–3456020520–4104021600–4320027000–5400032400–6480043200–86400
Pulse-Cleaning Compressed-Air Consumption (m³/min)0.07–0.300.11–0.400.15–0.500.18–0.600.22–0.600.25–0.900.29–0.900.37–0.900.5–1.50.62–1.50.82–2.21.0–2.41.2–3.01.4–3.01.56–3.61.88–4.22.5–5.5
Compressed-Air Pressure (kg/cm²)5–75–75–75–75–75–75–75–75–75–75–75–75–75–75–75–75–7


Frequently Asked Questions
What is the primary function of the MC Series Pulse-Jet Bag Filter?
Its primary function is separation of dust from process gas with pulse-cleaned filter bags.
What materials can be processed?
Dust collection duties compatible with the filter arrangement. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm the required duty, operating medium, connection dimensions, control interface, material of construction and compatibility with the main equipment.
