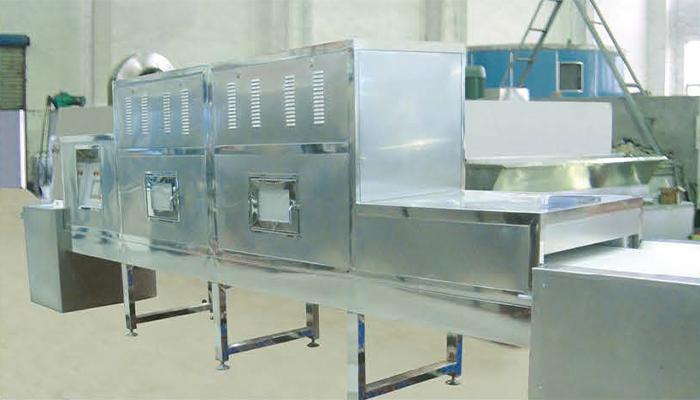

MSD Series Through-Flow Microwave Drying/Sterilizing Machine

MSD Series Through-Flow Microwave Drying/Sterilizing Machine

Microwave energy combined with a through-flow arrangement for drying or sterilizing.

Suitable for: materials compatible with microwave heating and the process.
Model:MSD
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The MSD Series Through-Flow Microwave Drying/Sterilizing Machine provides microwave energy combined with a through-flow arrangement for drying or sterilizing. Typical materials and duties include materials compatible with microwave heating and the process.
Working Principle

Microwave energy penetrates the moving material and generates volumetric heating. Moisture is driven from the product while the through-flow ventilation system removes vapor, and the belt transports the material continuously through the treatment chamber.


Key Features
Designed for microwave energy combined with a through-flow arrangement for drying or sterilizing.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Materials compatible with microwave heating and the process.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Used for the drying and sterilization of powdery, granular, flaky, or colloidal foods, additives, seasonings, pharmaceuticals, raw materials for Chinese herbal medicines, nutritional health products, and non-fried (or oil-saving) instant noodles, flour, soy products, beef jerky, preserved meat, dried fish, tea, tobacco, and other agricultural and sideline local specialty products; high-temperature peeling and roasting of almonds, peach kernels, peanut kernels, chestnuts, etc.; puffing of snack foods, potato chips, shrimp chips, fish maw, etc.; anti-caking, sterilization, and preservation of oral liquids, sauces, and various small packaged foods; "tempering" and thawing of frozen fish, meat, and poultry; drying and deodorization of soybeans; drying, desulfurization, and reduction of metallurgical and chemical products; drying of industrial products such as printing and dyeing, ceramics, fiberglass, chemical fibers, cotton yarn, wood, leather and bamboo products, honeycomb cardboard products, and corrugated cardboard.


Technical Parameters

Equipment Model8101216202430
Operating Frequency (MHz)2450 ± 502450 ± 502450 ± 502450 ± 502450 ± 502450 ± 502450 ± 50
Output Power (kW)8101216202430
Dehydration Capacity (kg/kW·h)0.5–0.80.5–0.80.5–0.80.5–0.80.5–0.80.5–0.80.5–0.8
Material-Layer Thickness (mm)≤50≤50≤50≤50≤50≤50≤50
Conveyor-Belt Speed (m/min)0.2–15, adjustable0.2–15, adjustable0.2–15, adjustable0.2–15, adjustable0.2–15, adjustable0.2–15, adjustable0.2–15, adjustable
Microwave Leakage (mW/cm²)Meets international standard; ≤5Meets international standard; ≤5Meets international standard; ≤5Meets international standard; ≤5Meets international standard; ≤5Meets international standard; ≤5Meets international standard; ≤5
Overall Dimensions (m)6×0.7×1.87×0.7×1.98×0.7×1.910×0.7×1.912×0.7×1.912.6×0.7×1.916×0.7×1.9


Frequently Asked Questions
What is the primary function of the MSD Series Through-Flow Microwave Drying/Sterilizing Machine?
Its primary function is microwave energy combined with a through-flow arrangement for drying or sterilizing.
What materials can be processed?
Materials compatible with microwave heating and the process. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm loading form, layer depth, residence time, temperature range, airflow or energy-source configuration, hygiene requirement and handling method.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
Talk to Our Drying Experts
With over 30 years of manufacturing expertise and continuous R&D, YIBU delivers reliable technical support and equipment recommendations for your specific processing needs.
