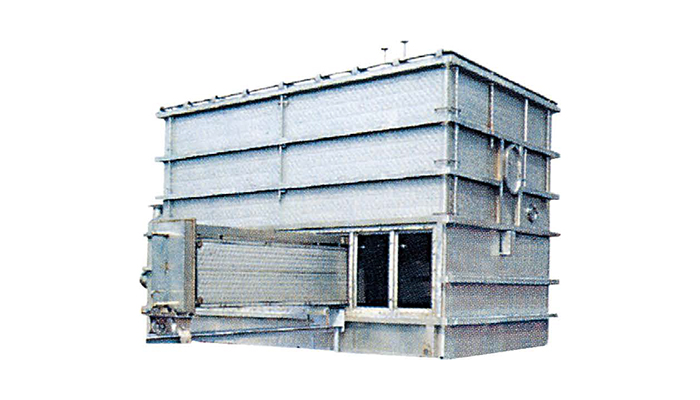

NLG Series Internally Heated Fluid Bed Dryer

NLG Series Internally Heated Fluid Bed Dryer
NLG Series Internally Heated Fluid Bed Dryer

NLG Series Internally Heated Fluid Bed Dryer

Fluid-bed drying supplemented by internal heat-transfer surfaces.

Suitable for: fluidizable materials requiring increased heat-transfer area.
Model:NLG
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The NLG Series Internally Heated Fluid Bed Dryer provides fluid-bed drying supplemented by internal heat-transfer surfaces. Typical materials and duties include fluidizable materials requiring increased heat-transfer area.
Working Principle

Process air fluidizes the material while a heat exchanger immersed in the bed supplies most of the drying heat indirectly. The combined internal heating surface and fluidization renew material contact and support moisture removal with a lower process-air requirement.

Key Features
Designed for fluid-bed drying supplemented by internal heat-transfer surfaces.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Fluidizable materials requiring increased heat-transfer area.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.
Wide Range of Applications
Applicable materials: ammonium chloride, ammonium nitrate, calcium chloride, calcium formate, calcium gluconate, calcium sulfate, cellulose derivatives, diammonium phosphate, dicalcium phosphate, compound fertilizers, hydroquinone, ferrous sulfate, ethylene, propylene, polystyrene, potassium carbonate, potassium chloride, potassium nitrate, potassium phosphate, sodium potassium tartrate, sodium sulfate, polyvinyl chloride, sodium bicarbonate, sodium bromide, sodium formate, sodium perborate, sodium sulfate, tartaric acid, terephthalic acid, urea, vitamins, barium sulfate, magnesium sulfate, zinc sulfate, aluminum sulfate, nickel sulfate, ammonium sulfate, table salt, sodium fluoride, titanium dioxide, potassium bromide, ammonium bromide, sodium carbonate, basic nickel carbonate, basic zinc carbonate, basic chromium carbonate, calcium carbonate, sodium metasilicate, sodium red alum, potassium acetate, sodium benzoate, acrylamide monomer, polyacrylamide, nylon 1010, polypropylene resin, polyester chips, polytetrafluoroethylene, acetal resin, terramycin, tetracycline, phthalide, humic acid, sodium humate, lysine.

Technical Parameters

ModelFluidization Area (m²)Installed Power (kW)Steam Pressure (MPa)Steam Consumption (kg/h)Inlet-Air Temperature (°C)Overall Dimensions (L×W×H) (mm)Floor Area (m²)
NLG2.02500.2–1.0400–1000100–3003000×1300×450045
NLG2.52.5650.2–1.0600–1200100–3003500×1300×450055
NLG3.03850.2–1.01400–2200100–3003600×1400×450065
NLG3.53.5950.2–1.01000–2000100–3004000×1500×450080
NLG4.04.01100.2–1.01200–2000100–3004600×1600×500090
NLG5.55.51300.2–1.01400–2200100–3005000×1650×5000100
NLG6.061400.2–1.01600–2800100–3006000×1700×5000110
NLG7.071650.2–1.01800–3200100–3006600×1750×5000120
NLG8.081700.2–1.02000–2800100–3007500×1800×5000130
NLG10102100.2–1.02400–3600100–30010000×1850×6000140
NLG15153000.2–1.03200–4400100–30015000×1900×6500200
NLG20203200.2–1.04000–6000100–30020000×2000×7000240
Frequently Asked Questions
What is the primary function of the NLG Series Internally Heated Fluid Bed Dryer?
Its primary function is fluid-bed drying supplemented by internal heat-transfer surfaces.
What materials can be processed?
Fluidizable materials requiring increased heat-transfer area. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm material particle size, initial and final moisture, temperature sensitivity, required capacity, air-treatment level and exhaust-air arrangement.
