Home
Granulation Equipment

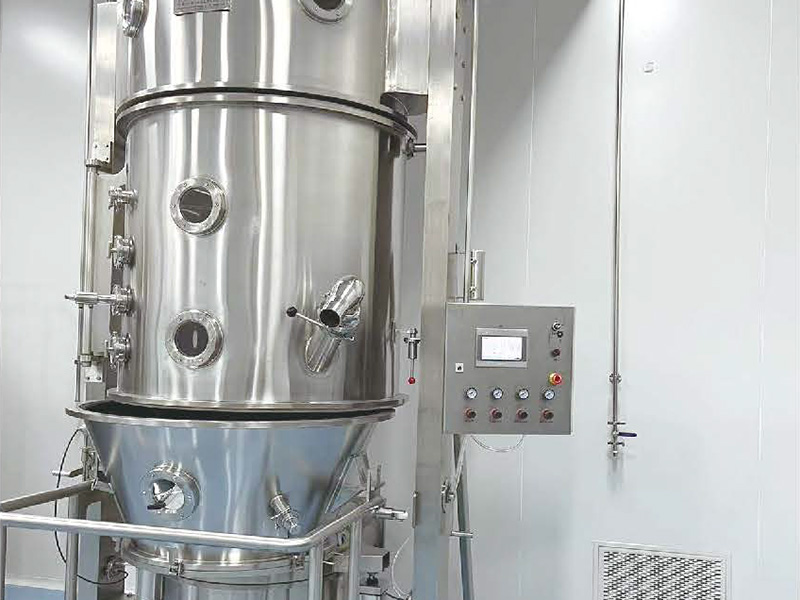

PGL-B Series Spray Drying Granulator

PGL-B Series Spray Drying Granulator
PGL-B Series Spray Drying Granulator
PGL-B Series Spray Drying Granulator
PGL-B Series Spray Drying Granulator

PGL-B Series Spray Drying Granulator

Spray drying and granulation within a coordinated processing system.

Spray Drying Granulator Suitable for: liquid or slurry feeds requiring conversion into granulated dry product, subject to material trials.
Model:PGL-B
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The PGL-B Series Spray Drying Granulator Machine provides spray drying and granulation within a coordinated processing system. Typical materials and duties include liquid or slurry feeds requiring conversion into granulated dry product, subject to material trials.
Working Principle

Liquid feed is atomized into the fluidized powder bed. Droplets wet the suspended particles, which agglomerate and grow while hot air removes moisture; entrained fines are returned to the bed and incorporated into the granules.

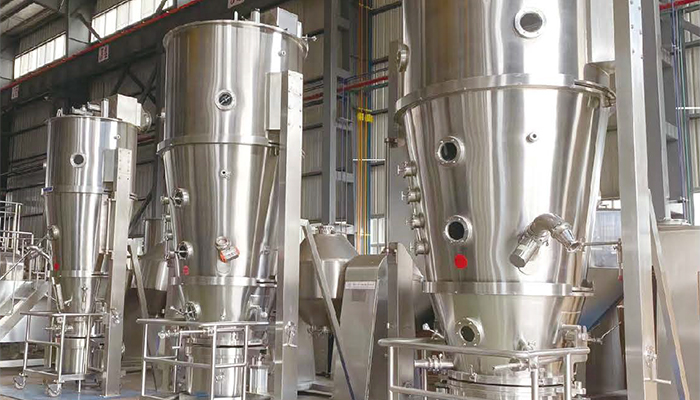

PGL-B Series Spray Drying Granulator stainless steel vertical main units in workshop: cylindrical fluid bed chamber with conical bottom, sight glasses and piping connections, for one-step liquid extract granulation and drying (pharma/food/chemical)
Key Features
Designed for spray drying and granulation within a coordinated processing system.
The spray drying granulator equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Liquid or slurry feeds requiring conversion into granulated dry product, subject to material trials.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.
Wide Range of Applications
Pharmaceutical industry
tablets, granules for oral sachets, capsule granules; low-sugar and sugar-free traditional Chinese medicine granules.
Food industry
cocoa, coffee, milk powder, fruit juice granules, seasonings, etc.
Other industries
pesticides, feed, fertilizers, pigments, dyes, etc.

Technical Parameters

ItemParameterUnitPGL-5BPGL-10BPGL-20BPGL-30BPGL-80BPGL-120BPGL-150B
Raw Material ContainerVolumeL4010020045067010001900
Raw Material ContainerDiametermm50070010001200140016001800
Production Capacity—kg/batch6–1510–3025–6050–12080–220120–300250–500
Induced-Draft Fan Power—kW7.5111522304575
SteamConsumptionkg/h70100210300360450585
SteamPressureMPa0.2–0.50.2–0.50.2–0.50.2–0.50.2–0.50.2–0.50.2–0.5
Compressed AirConsumptionm³/min0.90.91.11.11.32.02.5
Compressed AirPressureMPa0.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.60.4–0.6
Operating Temperature—°CRoom temperature–120, adjustableRoom temperature–120, adjustableRoom temperature–120, adjustableRoom temperature–120, adjustableRoom temperature–120, adjustableRoom temperature–120, adjustableRoom temperature–120, adjustable
Equipment Noise—dB(A)Fan isolated; ≤75Fan isolated; ≤75Fan isolated; ≤75Fan isolated; ≤75Fan isolated; ≤75Fan isolated; ≤75Fan isolated; ≤75
Frequently Asked Questions
What is the primary function of the PGL-B Series Spray Drying Granulator machine?
Its primary function is spray drying and granulation within a coordinated processing system.
What materials can be processed?
Liquid or slurry feeds requiring conversion into granulated dry product, subject to material trials. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed characteristics, binder or dry-compaction route, target granule size, required capacity, cleaning needs and downstream process requirements.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
