PLG Series Continuous Disc Dryer

PLG Series Continuous Disc Dryer
PLG Series Continuous Disc Dryer

PLG Series Continuous Disc Dryer

Continuous indirect drying across multiple heated disc levels.

Suitable for: powders, granules and pastes suited to continuous conductive drying.
Model:PLG
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The PLG Series Continuous Disc Dryer provides continuous indirect drying across multiple heated disc levels. Typical materials and duties include powders, granules and pastes suited to continuous conductive drying.
Working Principle

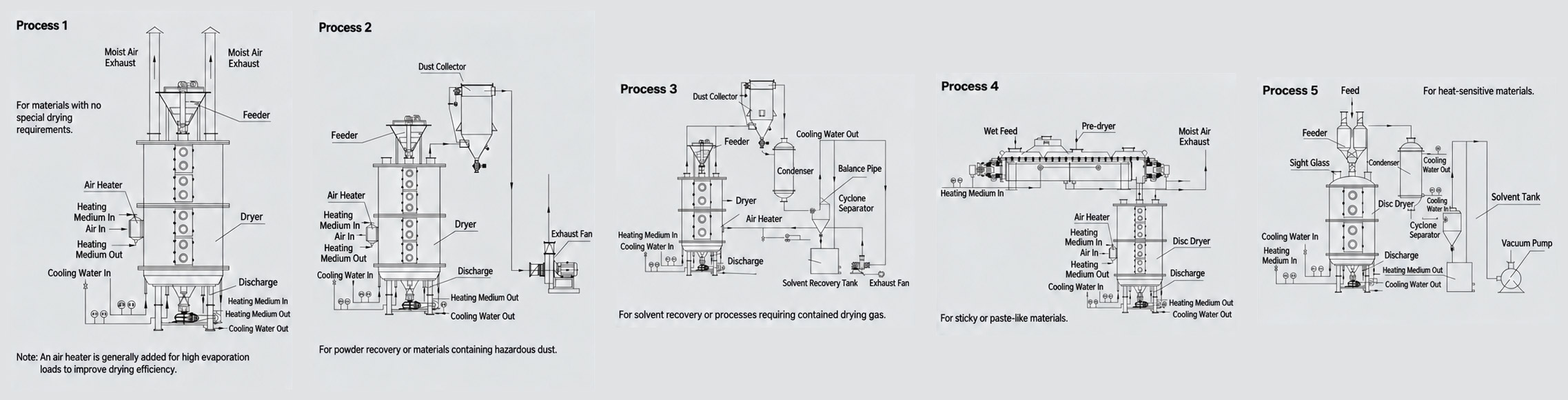

Wet feed is supplied continuously to the upper drying disc and moved by rotating rake arms from disc to disc. Heat is conducted through the heated discs, vapor is removed from the dryer, and the dried product is discharged from the bottom.






Key Features
Designed for continuous indirect drying across multiple heated disc levels.
The equipment and control configuration are selected according to the material and process requirements.


Suitable Materials
Powders, granules and pastes suited to continuous conductive drying.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Drying, Thermal Decomposition, Combustion, Cooling, Reaction, Sublimation
(1) Organic Chemical Products
(2) Inorganic Chemical Products
(3) Pharmaceuticals, Food
(4) Feed, Fertilizers


Technical Parameters

SpecificationOutside Diameter (mm)Height (mm)Drying Area (m²)Power (kW)
1200/4185026083.31.1
1200/6185030284.91.1
1200/8185034486.61.1
1200/10185038688.21.5
1200/12185042889.91.5
1500/6210030228.02.2
1500/82100344210.72.2
1500/102100386213.42.2
1500/122100428216.12.2
1500/142100470218.83.0
1500/162100512221.53.0
2200/62900326218.53.0
2200/82900368224.63.0
2200/102900410230.83.0
2200/122900452236.94.0
2200/142900494243.14.0
2200/162900536249.35.5
2200/182900578255.45.5
2200/202900620261.65.5
2200/222900662267.75.5
2200/242900704273.95.5
2200/262900746280.05.5
2500/83200368233.17.5
2500/103200410241.47.5
2500/123200452249.67.5
2500/143200494257.97.5
2500/163200536266.27.5
2500/183200578274.47.5
2500/203200620282.77.5
2500/22320066229111
2500/243200704299.211
2500/2632007462107.511
2500/2832007882115.811
3000/8380040504811
3000/10380046506011
3000/12380052507211
3000/14380058508411
3000/16380064509611
3000/183800705010813
3000/203800765012013
3000/223800825013213
3000/243800885014413
3000/263800945015615
3000/2838001005016815
3000/3038001065018015


Frequently Asked Questions
What is the primary function of the PLG Series Continuous Disc Dryer?
Its primary function is continuous indirect drying across multiple heated disc levels.
What materials can be processed?
Powders, granules and pastes suited to continuous conductive drying. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm material rheology, initial and final moisture, heat sensitivity, residence time, heating medium, agitation requirement and discharge method.
