Home
Granulation Equipment

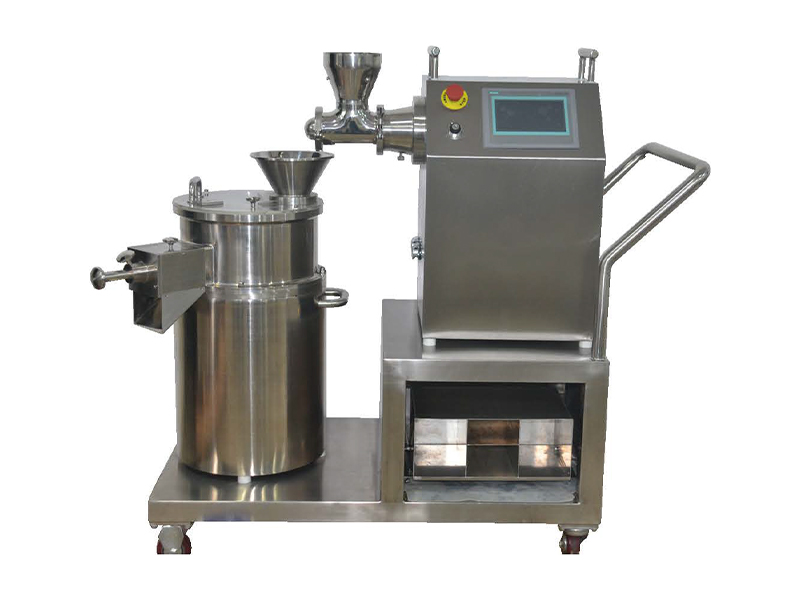

QZL Series Spherical Pelletizer

QZL Series Spherical Pelletizer
QZL Series Spherical Pelletizer
QZL Series Spherical Pelletizer
QZL Series Spherical Pelletizer

QZL Series Spherical Pelletizer

Forming feed material into rounded pellets by controlled centrifugal and rolling action.

Suitable for: materials suitable for spherical pellet formation.
Model:QZL
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The QZL Series Spherical Pelletizer provides forming feed material into rounded pellets by controlled centrifugal and rolling action. Typical materials and duties include materials suitable for spherical pellet formation.
Working Principle

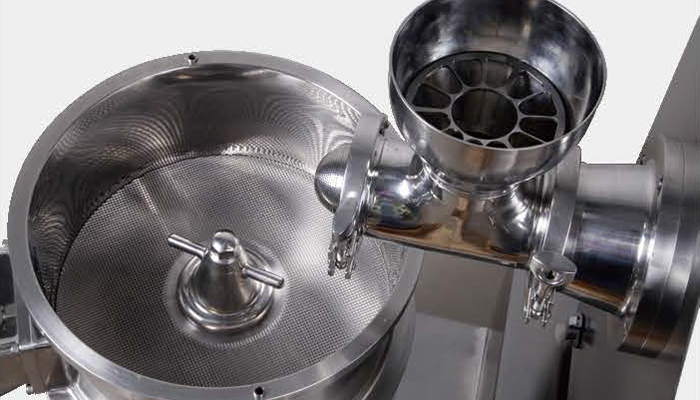

Wet granules are fed onto a rotating centrifugal disc while air passes through the annular gap. Centrifugal force, air lift and gravity create a rolling, rope-like movement that rounds the material into pellets.

Key Features
Designed for forming feed material into rounded pellets by controlled centrifugal and rolling action.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Materials suitable for spherical pellet formation.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Through a specially designed rotor structure, various wet granules are processed into beautifully shaped spherical pellets. It is an ideal equipment for preparing capsules and traditional Chinese medicine pills.
1. Pharmaceutical industry, Food industry; 2. Cosmetics, Dyes, Pigments; 3. Ceramic industry


Technical Parameters

ModelSpecificationTotal Power (kW)Production Capacity (kg/h)
QZL-230Φ2300.7510–100
QZL-400Φ4002.220–150
QZL-700Φ7003.730–200
QZL-1000Φ10005.540–300


Frequently Asked Questions
What is the primary function of the QZL Series Spherical Pelletizer?
Its primary function is forming feed material into rounded pellets by controlled centrifugal and rolling action.
What materials can be processed?
Materials suitable for spherical pellet formation. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed characteristics, binder or dry-compaction route, target granule size, required capacity, cleaning needs and downstream process requirements.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
