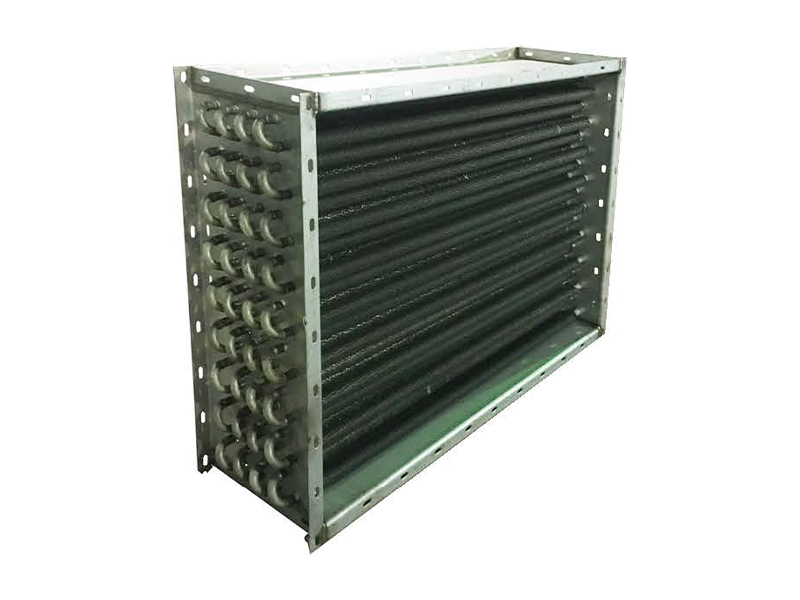

SQR Series Heat Exchanger

SQR Series Heat Exchanger
SQR Series Heat Exchanger
SQR Series Heat Exchanger
SQR Series Heat Exchanger

SQR Series Heat Exchanger

Indirect heating of process air through a heat-transfer surface.

Suitable for: drying systems requiring a air-heating exchanger.
Model:SQR
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview

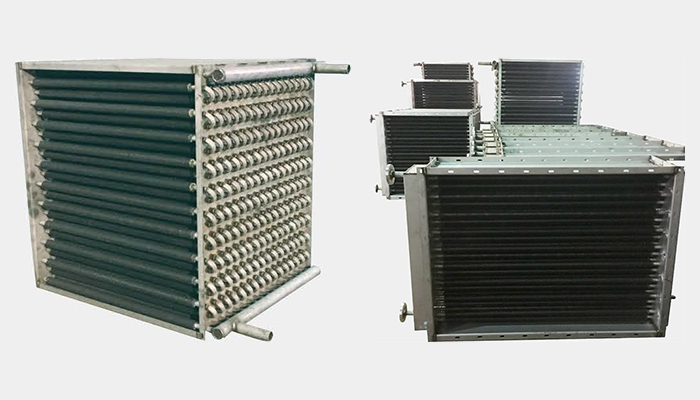

The SQR Series Heat Exchanger provides indirect heating of process air through a heat-transfer surface. Typical materials and duties include drying systems requiring a air-heating exchanger.
Working Principle

Steam, hot water or thermal oil flows inside the exchanger tubes while process air passes across the finned surfaces. Heat is transferred indirectly to the air before it enters the drying system.


Key Features
Designed for indirect heating of process air through a heat-transfer surface.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Drying systems requiring a air-heating exchanger.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include drying systems requiring a air-heating exchanger. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

Technical Parameter Table 1

ItemStainless SteelCarbon SteelAluminum
Tube SpecificationΦ18×2Φ19×2—
Fin Outside Diameter (mm)Φ38Φ39—
Fin Thickness (mm)0.24—0.4
Heat-Transfer Area Coefficient0.640.640.64


Technical Parameter Table 2

ItemSpecification
Tube SpecificationΦ63×3
Fin Outside Diameter (mm)Φ103
Fin Thickness (mm)0.5
Heat-Transfer Area Coefficient1.5


Frequently Asked Questions
What is the primary function of the SQR Series Heat Exchanger?
Its primary function is indirect heating of process air through a heat-transfer surface.
What materials can be processed?
Drying systems requiring a air-heating exchanger. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm the required duty, operating medium, connection dimensions, control interface, material of construction and compatibility with the main equipment.
