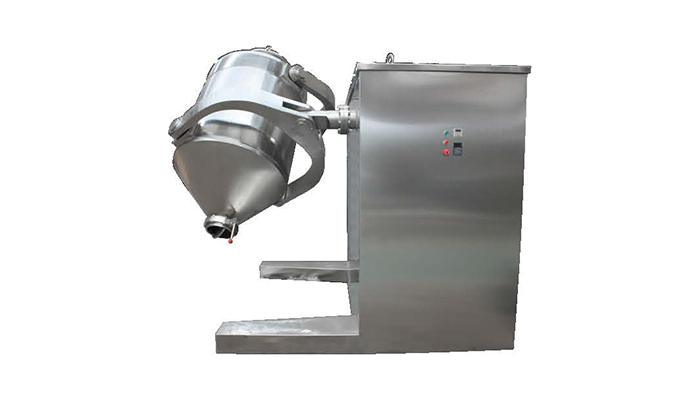

SYH Series Three-Dimensional Motion Mixer

SYH Series Three-Dimensional Motion Mixer
SYH Series Three-Dimensional Motion Mixer

SYH Series Three-Dimensional Motion Mixer

Three-dimensional vessel motion that repeatedly changes material orientation.

Suitable for: dry powders and granules suitable for three-dimensional mixing.
Model:SYH
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The SYH Series Three-Dimensional Motion Mixer provides three-dimensional vessel motion that repeatedly changes material orientation. Typical materials and duties include dry powders and granules suitable for three-dimensional mixing.
Working Principle

The closed vessel performs compound three-dimensional motion under the drive mechanism. Continuous changes in direction cause the material to flow, diffuse and recombine throughout the vessel.


Key Features
Designed for three-dimensional vessel motion that repeatedly changes material orientation.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Dry powders and granules suitable for three-dimensional mixing.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
The mixing cylinder of this machine moves in multiple directions, so the materials are not subjected to centrifugal force, and there is no phenomenon of specific gravity segregation, stratification, or agglomeration. Components can have extremely different weight ratios, and the mixing rate is high. It is currently a relatively ideal product among various mixers.
The cylinder has a large loading rate, up to 90% (ordinary mixers are only 50%), with high efficiency and short mixing time.
All parts of the cylinder are transitioned with circular arcs and have been precision polished.
Used for high-uniformity mixing of powdery and granular materials in pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, national defense industry, as well as various scientific research units.


Technical Parameters

ModelSYH-5SYH-15SYH-50SYH-100SYH-200SYH-400SYH-600SYH-800SYH-1000SYH-1200SYH-1500SYH-2000
Vessel Volume (L)515501002004006008001000120015002000
Maximum Filling Volume (L)4.513.54590180360540720900108013501800
Maximum Filling Weight (kg)1.5–2.74–8.115–2730–5450–108100–216150–324200–432250–540300–648400–810500–1080
Main-Shaft Speed (rpm)0–200–200–200–200–150–150–130–100–100–90–90–8
Motor Power (kW)0.250.371.11.52.245.57.511111518.5
Overall Dimensions (L×W×H) (mm)600×1000×1000800×1200×10001150×1400×13001250×1800×15501450×2000×15501650×2200×15501850×2500×17502100×2650×20002150×2800×21002000×3000×22602300×3200×25002500×3600×2800
Weight (kg)10020030080012001200150017001800200024003000


Frequently Asked Questions
What is the primary function of the SYH Series Three-Dimensional Motion Mixer?
Its primary function is three-dimensional vessel motion that repeatedly changes material orientation.
What materials can be processed?
Dry powders and granules suitable for three-dimensional mixing. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.
