Home
Mixing Equipment

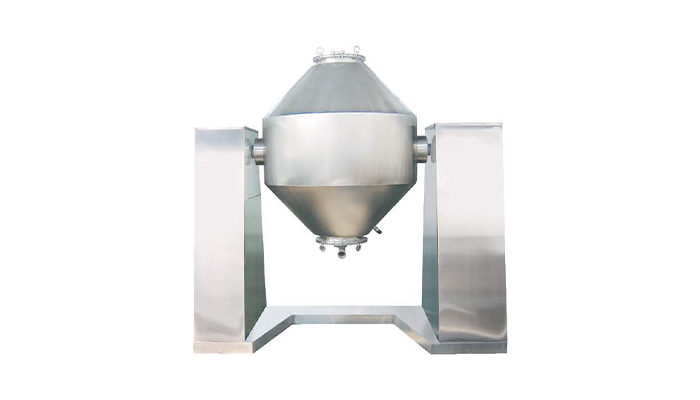

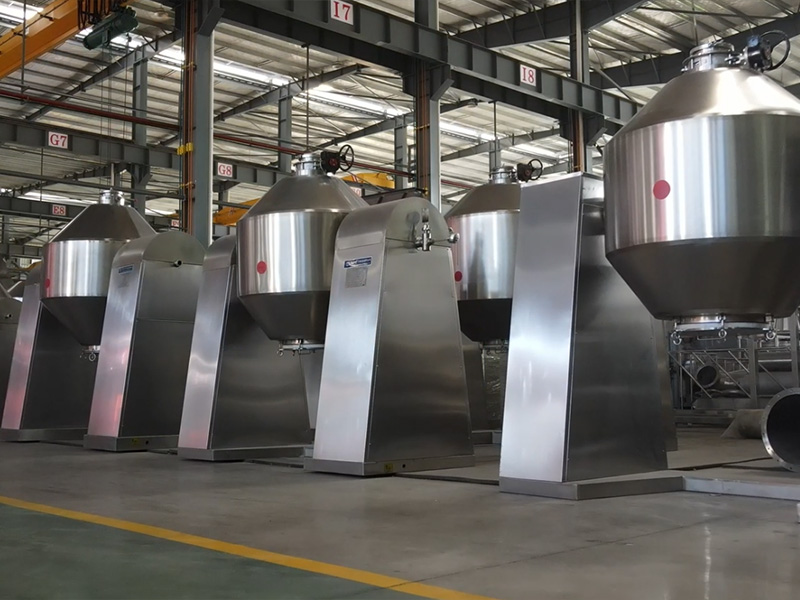

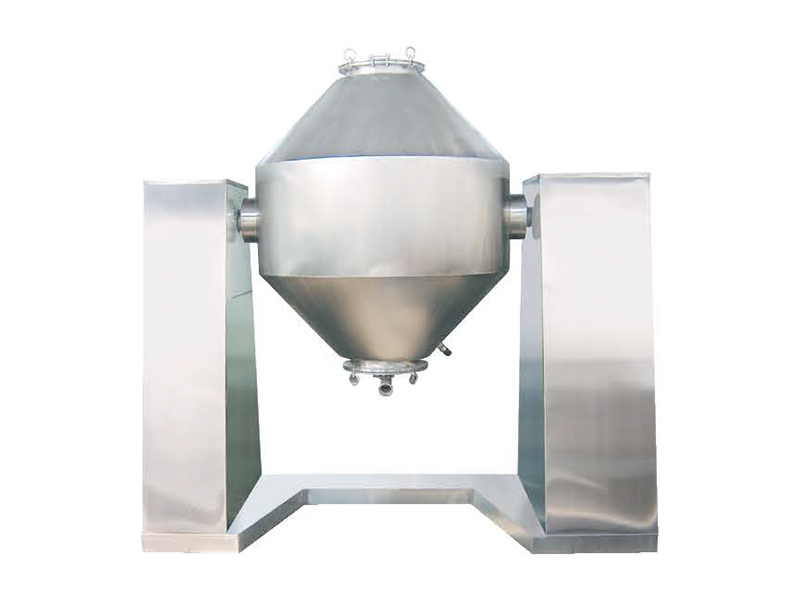

SZH Series Double-Cone Mixer

SZH Series Double-Cone Mixer
SZH Series Double-Cone Mixer
SZH Series Double-Cone Mixer
SZH Series Double-Cone Mixer
SZH Series Double-Cone Mixer
SZH Series Double-Cone Mixer

SZH Series Double-Cone Mixer

Rotation of a double-cone vessel for tumble blending.

Suitable for: free-flowing dry powders and granules.
Model:SZH
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The SZH Series Double-Cone Mixer provides rotation of a double-cone vessel for tumble blending. Typical materials and duties include free-flowing dry powders and granules.
Working Principle

The double-cone vessel rotates around its horizontal axis. Material is repeatedly lifted, divided and recombined by gravity, producing low-shear tumble mixing.


Key Features
Designed for rotation of a double-cone vessel for tumble blending.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Free-flowing dry powders and granules.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include free-flowing dry powders and granules. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

SpecificationTotal Volume (L)Working Volume (L)Loading Capacity (kg)Loading Speed (rpm)Power (kW)Weight (kg)
50502515250.55500
1501507545200.75650
30030015090201.1820
500500250150181.51250
100010005003001531800
150015007504501242100
200020001000600125.52450
30003000150090095.52980
400040002000120097.53300
500050002500150087.53880
60006000300018008114550
80008000400024006155200
100001000050003000618.56000


Frequently Asked Questions
What is the primary function of the SZH Series Double-Cone Mixer?
Its primary function is rotation of a double-cone vessel for tumble blending.
What materials can be processed?
Free-flowing dry powders and granules. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm batch size, bulk density, flow behaviour, required uniformity, permissible shear, loading and discharge method, cleaning needs and available space.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
