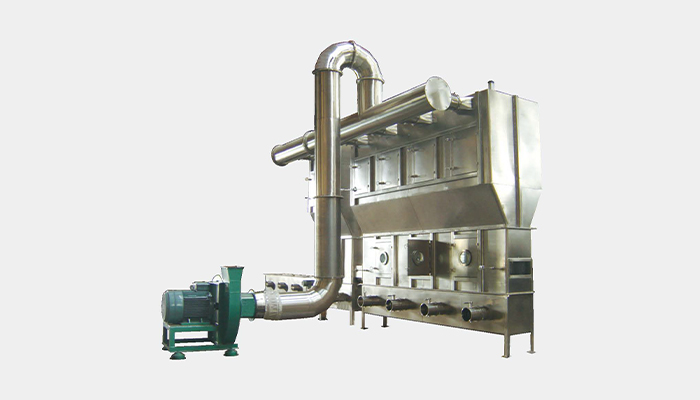

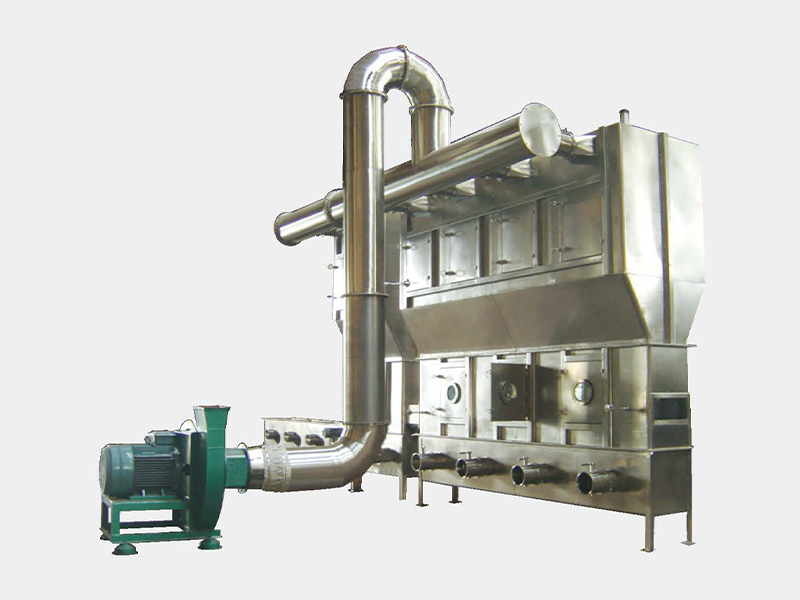

Continuous horizontal fluid-bed drying.
Clean hot air enters through the distribution plate and fluidizes the material in the horizontal bed. Wet feed is introduced continuously at one end, dried by direct air contact while moving through the bed, and discharged from the opposite end.
| Model | Drying Capacity (kg/h) | Bed Area (m²) | Fan Power (kW) | Inlet-Air Temperature (°C) | Remarks |
| XF-0.25 | 5–20 | 0.25 | 7.5 | Room temperature–300 | Pharmaceutical applications |
| XF-0.5 | 10–40 | 0.5 | 11 | Room temperature–300 | Pharmaceutical applications |
| XF-1.0 | 20–80 | 1 | 15 | Room temperature–300 | Pharmaceutical applications |
| XF-2.0 | 40–160 | 2 | 30 | Room temperature–300 | Pharmaceutical applications |
| XF-3.0 | 60–240 | 3 | 75 | Room temperature–300 | Pharmaceutical applications |
| XF-4.0 | 80–320 | 4 | 90 | Room temperature–300 | Pharmaceutical applications |
| XF-5.0 | 100–400 | 5 | 110 | Room temperature–300 | Chemical applications |
| XF-6.0 | 120–480 | 6 | 132 | Room temperature–300 | Chemical applications |
| XF-8.0 | 160–640 | 8 | 150 | Room temperature–300 | Chemical applications |
| XF-10 | 200–800 | 10 | 185 | Room temperature–300 | Chemical applications |
| XF-12 | 240–960 | 12 | 220 | Room temperature–300 | Chemical applications |
| XF-16 | 320–1280 | 16 | 250 | Room temperature–300 | Chemical applications |
| XF-18 | 360–1440 | 18 | 320 | Room temperature–300 | Chemical applications |
| XF-20 | 400–1600 | 20 | 400 | Room temperature–300 | Chemical applications |
