Home
Fluid Bed Dryer

XFG Series Closed-Circuit Fluid Bed Dryer (Cooler)

XFG Series Closed-Circuit Fluid Bed Dryer (Cooler)
XFG Series Closed-Circuit Fluid Bed Dryer (Cooler)

XFG Series Closed-Circuit Fluid Bed Dryer (Cooler)

Closed-circuit fluid-bed drying or cooling.

Suitable for: materials requiring controlled recirculating-gas drying or cooling.
Model:XFG
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The XFG Series Closed-Circuit Fluid Bed Dryer (Cooler) provides closed-circuit fluid-bed drying or cooling. Typical materials and duties include materials requiring controlled recirculating-gas drying or cooling.
Working Principle

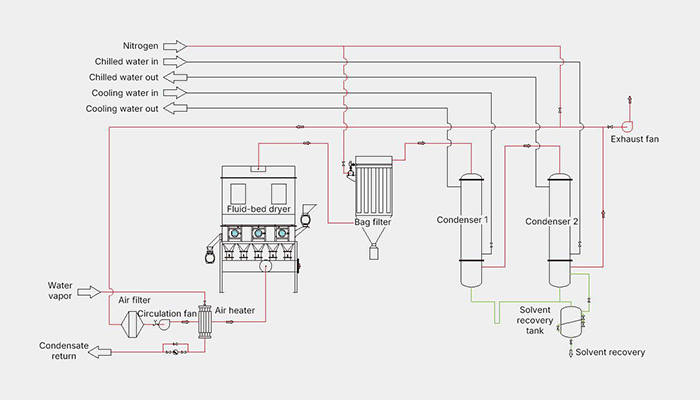

Nitrogen circulates through the sealed fluid bed to dry or cool the material. The process gas passes through solid separation and solvent-condensation stages before being reheated or cooled and returned to the bed.

Key Features
Designed for closed-circuit fluid-bed drying or cooling.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Materials requiring controlled recirculating-gas drying or cooling.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Drying of wet granules and powdery granules containing solvents in fields such as pharmaceuticals, food, and chemicals.
Mainly used for the drying of materials containing solvents or solvent media, and for solvent recovery.
Drying of granular materials containing solvents from oscillating granulation and wet high-speed mixing granulation.
Drying of large granules, small lumps, and materials with relatively low viscosity.


Technical Parameters

ModelDrying Capacity (kg/h)Bed Area (m²)Fan Power (kW)Inlet-Air Temperature (°C)Circulating MediumSolvent Recovery (%)
XFG-10 5–20 0.25 7.5 Room temperature–300 Nitrogen 95–99
XFG-20 10–40 0.5 11 Room temperature–300 Nitrogen 95–99
XFG-30 20–80 1 15 Room temperature–300 Nitrogen 95–99
XFG-50 40–160 2 30 Room temperature–300 Nitrogen 95–99
XFG-80 60–240 3 75 Room temperature–300 Nitrogen 95–99
XFG-100 80–320 4 90 Room temperature–300 Nitrogen 95–99


Frequently Asked Questions
What is the primary function of the XFG Series Closed-Circuit Fluid Bed Dryer (Cooler)?
Its primary function is closed-circuit fluid-bed drying or cooling.
What materials can be processed?
Materials requiring controlled recirculating-gas drying or cooling. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm material particle size, initial and final moisture, temperature sensitivity, required capacity, air-treatment level and exhaust-air arrangement.
