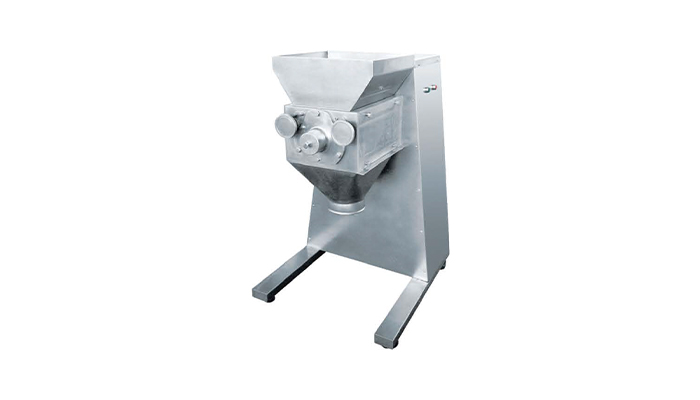

YK Series Oscillating Granulator

YK Series Oscillating Granulator
YK Series Oscillating Granulator

YK Series Oscillating Granulator

Oscillating action that forces material through a screen.

Suitable for: wet or dry materials suited to oscillating granulation or sizing.
Model:YK
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The YK Series Oscillating Granulator provides oscillating action that forces material through a screen. Typical materials and duties include wet or dry materials suited to oscillating granulation or sizing.
Working Principle

The oscillating rotor repeatedly presses the feed through the screen. Wet mass is formed into granules, or dry agglomerates are reduced and sized, according to the selected screen opening.


Key Features
Designed for oscillating action that forces material through a screen.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Wet or dry materials suited to oscillating granulation or sizing.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include wet or dry materials suited to oscillating granulation or sizing. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ItemYK160YK320
Production Capacity50–200 kg/h50–400 kg/h
Motor Power2.2 kW7.5 kW
Roller Speed65 rpm65 rpm
Oscillation Angle360°360°
Roller DiameterΦ160 mmΦ320 mm
Weight450 kg750 kg
Overall Dimensions1000×800×1300 mm1500×1200×1500 mm


Frequently Asked Questions
What is the primary function of the YK Series Oscillating Granulator?
Its primary function is oscillating action that forces material through a screen.
What materials can be processed?
Wet or dry materials suited to oscillating granulation or sizing. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed form, target particle or granule size, required throughput, heat sensitivity, screen or tool specification, cleaning method and downstream interface.
