Home
Lifting & Handling Equipment

YLT Series Mobile Bin Lifter/Feeder

YLT Series Mobile Bin Lifter/Feeder
YLT Series Mobile Bin Lifter/Feeder
YLT Series Mobile Bin Lifter/Feeder
YLT Series Mobile Bin Lifter/Feeder

YLT Series Mobile Bin Lifter/Feeder

Mobile lifting and feeding of a material bin.

Suitable for: compatible bins and receiving equipment requiring mobile transfer.
Model:YLT
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The YLT Series Mobile Bin Lifter/Feeder provides mobile lifting and feeding of a material bin. Typical materials and duties include compatible bins and receiving equipment requiring mobile transfer.
Working Principle

The mobile unit is positioned at the receiving equipment, after which the hydraulic system raises and turns the bin. The outlet is aligned with the equipment inlet and material is discharged by gravity.


Key Features
Designed for mobile lifting and feeding of a material bin.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Compatible bins and receiving equipment requiring mobile transfer.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
This machine can be used for the lifting and loading of standard hoppers, feeding materials to equipment such as tablet presses, capsule filling machines, and mixers. It is widely used in industries such as pharmaceuticals, chemicals, and food.

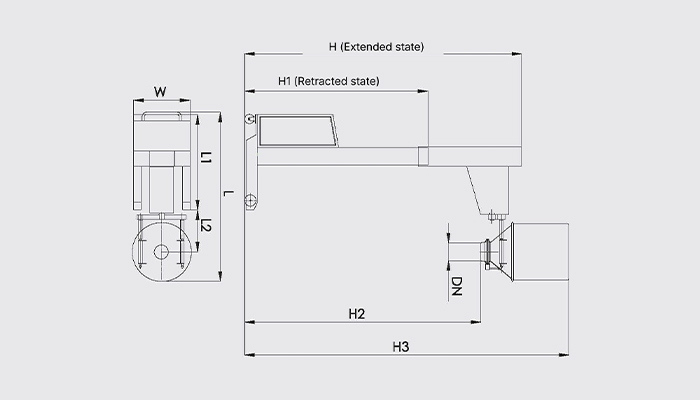

Technical Parameters

ModelL (mm)L1 (mm)L2 (mm)W (mm)H (mm)H1 (mm)H2 (mm)H3 (mm)Bin Volume (L)Total Power (kW)
YLT1001700102050070029501950250034501001.87
YLT1501800102045070029501950250034001502.05


Frequently Asked Questions
What is the primary function of the YLT Series Mobile Bin Lifter/Feeder?
Its primary function is mobile lifting and feeding of a material bin.
What materials can be processed?
Compatible bins and receiving equipment requiring mobile transfer. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm the container type, rated load, lifting height, discharge interface, available space, mobility requirement and control arrangement.

Request Pricing & Specifications

Interested in this equipment? Fill out the form below with your required capacity and material details. Our team will send you a competitive quote and a comprehensive technical data sheet within 24 hours.
