YPG Series Pressure Spray Dryer (Co-Current)

The YPG Series pressure spray dryer uses a pressure nozzle at the top of the tower to atomize the feed into a co-current hot-air stream. Feed pressure, nozzle selection, feed rate, and drying conditions are coordinated to develop the required powder or granule characteristics.

Suitable for: pumpable solutions, emulsions, suspensions and slurries suitable for pressure atomization.

Model:YPG

Overview & Principle
Features & Materials
Applications
Technical Parameters
FAQ

Product Overview

The YPG Series Pressure Spray Dryer (Co-Current) uses a pressure nozzle mounted at the top of the drying tower to atomize liquid feed into fine droplets. Hot air enters from the tower top and moves downward in parallel with the droplets, forming a co-current drying flow.

The pressure spray dryer equipment is designed for high powder recovery, minimal wall deposition and energy-efficient drying. It is particularly suitable for heat-sensitive materials and is widely used for food products, dyes and chemical intermediates.

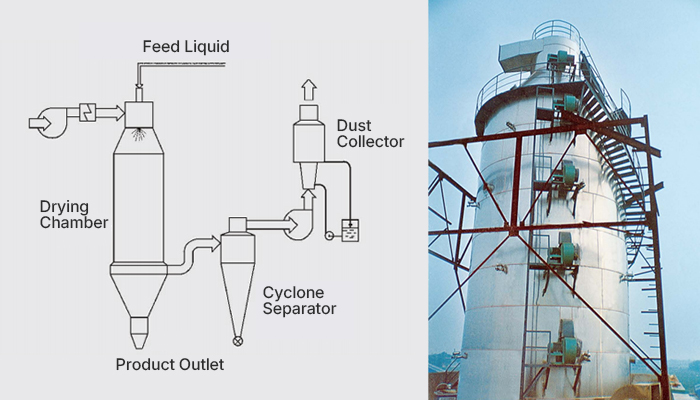

Working Principle

Liquid feed is pressurized and delivered to the pressure spray dryer nozzle installed at the top of the drying tower, where it is atomized into fine droplets. Hot air enters from the tower top and flows downward in the same direction as the droplets.

Moisture evaporates during this co-current contact, and the dried product is discharged from the bottom of the tower. Fine powder entrained in the exhaust air is separated by the cyclone and dust collector.

Key Features

Pressure-nozzle atomization

Downward co-current contact between droplets and hot air

High powder recovery and minimal wall deposition

Energy-efficient operation

Suitable for heat-sensitive materials

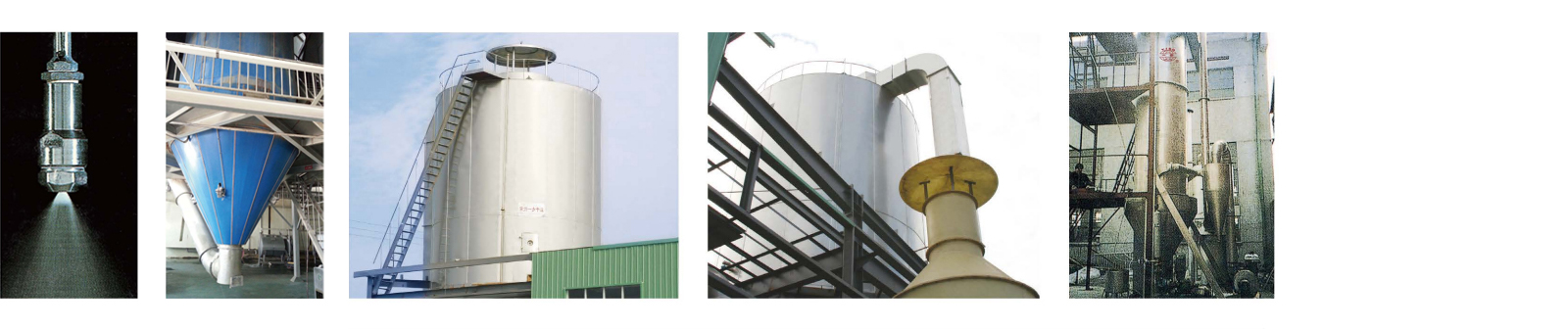

YPG ct.jpg

Suitable Materials

Pumpable solutions, emulsions, suspensions and slurries suitable for pressure atomization.

Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.

Food Industry

Whole milk powder, casein, cocoa powder, milk replacers, egg white/yolk, oats, chicken extract, coffee, instant tea, meat flavors, soy and peanut protein, protein hydrolysates, corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, pumpkin powder, and more.

Pharmaceuticals

Traditional Chinese Medicine (TCM) extracts, medicinal gums, yeast, vitamins, antibiotics, amylase, lipase, and more.

Plastics & Resins

AB/ABS emulsions, urea-formaldehyde resins, phenolic resins, melamine-formaldehyde resins, polyethylene (PE), polyvinyl chloride (PVC), and more.

Detergents

Premium and standard laundry powders, soap powder, soda ash, emulsifiers, optical brighteners, phosphates, and more.

Chemical Industry

Sodium fluoride (potassium fluoride), basic dyes and pigments, dye intermediates, catalysts, sulfates, amino acids, white carbon black (precipitated silica), and more.

Ceramics

Alumina (aluminum oxide), ceramic tile materials, magnesium oxide, talc, and more.

Others (Spray Chilling)

Aluminum hydroxide, calcium chloride, stearates, and other materials suitable for cooling spray processes.

Technical Parameters

Model	50	100	150	200	300	500	1000-10000
Water Evaporation Capacity (kg/h)	50	100	150	200	300	500	1000-10000
Overall Dimensions (Φ × H) (mm)	1600x8900	2000x1711500	2400x13500	2800x14800	3200x15400	3800x18800	/
High-Pressure Pump Pressure (MPa)	2-10
Power kW	8.5	14	22	24	30	82	30-300
Inlet Air Temperature (°C)	200-300
Final Product Moisture Content (%)	< 5(0.5)
Product Recovery (%)	> 97
Electric Heating (kW)	79	120	150	For temperatures below 200°C, specific values are calculated based on actual conditions.
Steam + Electric Heating (MPa + kW)	0.5 +54	0.6+90	0.6+108
Hot-Air Furnace Capacity (×10⁴ kcal/h)	10	15	20	30	40	50	120-1200

Frequently Asked Questions

What is the primary function of the YPG Series Pressure Spray Dryer (Co-Current)?

It features pressure-nozzle atomization with co-current contact between droplets and drying air to transform liquid feed into target powder particles.

What materials can be processed?

Pumpable solutions, emulsions, suspensions and slurries suitable for pressure atomization. Final suitability should be confirmed through material and process evaluation.

How should a model be selected?

Confirm feed capacity or product output capacity , feed solid content, finished product final moisture, wetted material (SUS304 / SUS316L / others), heating method, maximum temperature tolerance of material, feed viscosity, atomization mode, inlet/outlet temperature requirements, target powder properties, and powder recovery system arrangement.
