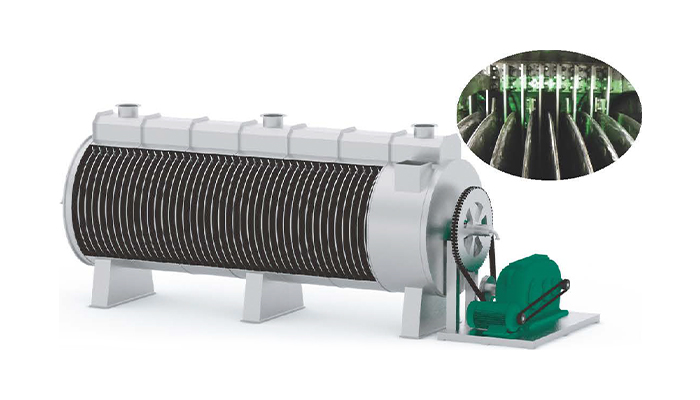

YQJ Horizontal Disc Paddle Dryer

YQJ Horizontal Disc Paddle Dryer

Horizontal indirect drying using heated disc-type paddles.

Suitable for: moist solids suited to horizontal agitated conductive drying.
Model:YQJ
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The YQJ Horizontal Disc Paddle Dryer provides horizontal indirect drying using heated disc-type paddles. Typical materials and duties include moist solids suited to horizontal agitated conductive drying.
Working Principle

Heating medium passes through the hollow shaft and disc-shaped paddles. The slowly rotating discs agitate and advance the wet material while indirect heat transfer evaporates moisture for removal from the dryer.


Key Features
Designed for horizontal indirect drying using heated disc-type paddles.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Moist solids suited to horizontal agitated conductive drying.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.

Wide Range of Applications
Organic Chemical Products
Polyvinyl chloride resin, polytetrafluoroethylene resin, maleic acid, anthraquinone, nitroanthraquinone, p-aminophenol, melamine, cyanuric acid, p-aminobenzenesulfonic acid, antioxidant 168, color phenol AS, stearates, aniline, nitroaniline, pentaerythritol, chlorinated paraffin, calcium formate, triethylenediamine, EDTA, rubber accelerators, sodium benzenesulfinate, isophthalic acid, sodium dimethyl-5-sulfonate, thiourea, oil-soluble aniline black dye, acid black dye, indigo, and other organic chemical raw materials and intermediates.
Inorganic Chemical Products
Light calcium carbonate, activated calcium carbonate, nano-grade ultrafine calcium carbonate, magnesium carbonate, pyrite concentrate, pyrite, copper-nickel ore, aluminum hydroxide, white carbon black, strontium carbonate, barium carbonate, potassium carbonate, lithopone, insurance powder, silica fume, barium sulfate, potassium sulfate, microsphere catalyst, magnesium hydroxide, copper sulfate, nickel sulfate, nickel aminosulfonate, sodium molybdate, sodium chloride, cryolite, iron oxide red, nickel oxalate, cobalt oxalate, iron oxide black, lithium hydroxide, nickel hydroxide, zirconium hydroxide, calcium phosphate, sulfur, etc.
Pharmaceuticals and Food
Ampicillin, Deng's salt, L-phenylglycine and intermediates, cefotaxime, ceftriaxone, amantadine, cimetidine, vitamin B12, vitamin C, medicinal salt, medicinal aluminum hydroxide, medicinal magnesium metasilicate, caffeine, tea, flower extracts, ginkgo leaves, chocolate powder, starch, corn germ, and other raw materials and pharmaceutical intermediates.
Feed and Fertilizers
Potassium carbonate, biological potassium fertilizer, protein feed, feed-grade chlortetracycline, mycelium, bran, distiller's grains, grain, seeds, herbicides, cellulose, feed-grade calcium hydrogen phosphate, etc.

Technical Parameters

ModelPower (kW)Heat-Transfer Area (m²)Total Volume (m³)Overall Dimensions (L×W×H) (mm)
YQJ-3015301.975500×1300×810
YQJ-5018.5503.275600×1600×1000
YQJ-8022804.55200×1900×2700
YQJ-1003010066400×1900×2700
YQJ-1203712087200×1900×2700
YQJ-1504515096200×2500×3000
YQJ-1804518011.57500×2500×3000
YQJ-20055200159000×2500×3000
YQJ-2607526017.58600×2800×3300
YQJ-300753002010100×2800×3300
YQJ-350903502611000×3000×3650
YQJ-400904003011500×3200×3750
YQJ-4501104503312000×3300×3950
YQJ-5001325003612500×3400×4100


Frequently Asked Questions
What is the primary function of the YQJ Horizontal Disc Paddle Dryer?
Its primary function is horizontal indirect drying using heated disc-type paddles.
What materials can be processed?
Moist solids suited to horizontal agitated conductive drying. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm material rheology, initial and final moisture, heat sensitivity, residence time, heating medium, agitation requirement and discharge method.
