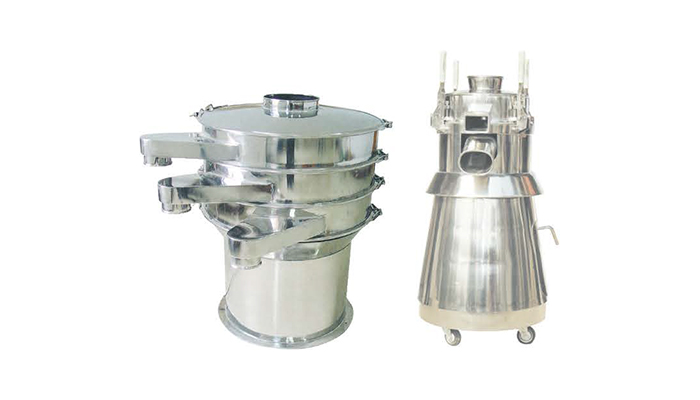

ZS Series Vibrating Screen

ZS Series Vibrating Screen
ZS Series Vibrating Screen

ZS Series Vibrating Screen

Screening by vibration through the selected mesh.

Suitable for: powders and granules requiring sieving or classification.
Model:ZS
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The ZS Series Vibrating Screen provides screening by vibration through the selected mesh. Typical materials and duties include powders and granules requiring sieving or classification.
Working Principle

The eccentric drive generates three-dimensional vibration in the circular screen deck. Material moves across the selected mesh, particles below the opening pass through, and oversize material is discharged separately.


Key Features
Designed for screening by vibration through the selected mesh.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Powders and granules requiring sieving or classification.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include powders and granules requiring sieving or classification. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ModelZS-350ZS-515ZS-650ZS-800ZS-1000ZS-1500ZS-2000
Production Capacity (kg)40–50060–60080–800150–1200300–2000350–2800500–4000
Screen Mesh Range12–20012–20012–20012–2005–3255–3255–325
Motor Power (kW)0.550.550.550.751.52.23
Main-Shaft Speed (rpm)1380137013701500150015001500
Overall Dimensions (mm)540×540×1060710×710×1290880×880×13501000×1000×14001100×1100×12001600×1600×12002100×2100×1200
Net Weight (kg)100180250300350400500


Frequently Asked Questions
What is the primary function of the ZS Series Vibrating Screen?
Its primary function is screening by vibration through the selected mesh.
What materials can be processed?
Powders and granules requiring sieving or classification. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed form, target particle or granule size, required throughput, heat sensitivity, screen or tool specification, cleaning method and downstream interface.
