YS Series Fluid Bed Hopper Lifter

Keywords:
Category: Pharma lifter
YS Series Fluid Bed Hopper Lifter Principle This machine is mainly composed of a chassis, upright, liftsystem, turning system. When work , it can lock the bowl of …
Order
Detail Picture

YS Series Fluid Bed Hopper Lifter

Principle

This machine is mainly composed of a chassis, upright, lift system, turning system. When work , it can lock the bowl of FL, PGL, GFG and FG with the cone adapter. Start the lift button, bin lifting; turn button, you can turn 180 degrees. Loosen the brake, horizontal rotating column to the process requirements, and bin to working height decreased, then open the valve, so that the material is transfered to the next process.

Features

This machine is designed after our widely absorbing foreign advanced technology and combining the successful researches and specific conditions. The machine has reasonable structure and stable performance, and it has no dead angles and exposed screws, besides, it’s also convenient to operate. The machine is equipped with anti misoperation device discharge valve, which makes it safe enough in produciion, and it is easy to dismount and clean. And to control dust and cross pollution effectively, optimize the production process, in full compliance with the GMP requirement of pharmaceutical production.

Application

It’s designed to meet GMP standards;

Integrated with FL, PGL, GFG and FG series of Fluid bed to realize dust-free discharge.

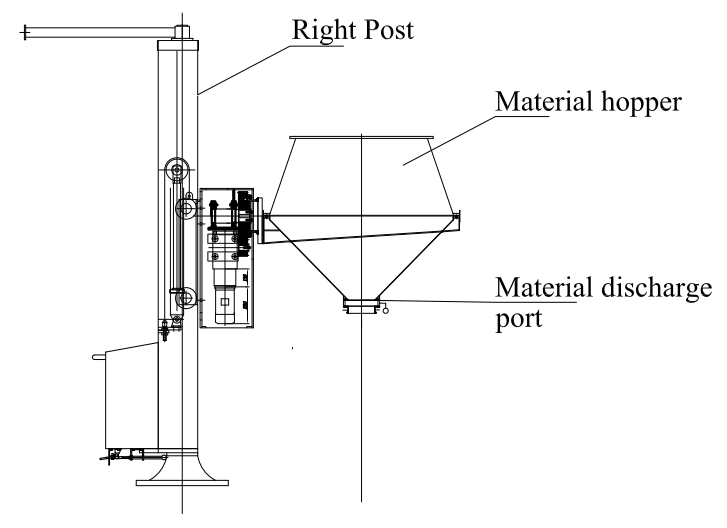

 Overall Drawing

Technical parameters



spec

YS 60

YS 120

YS 200

YS 300

YS 500

capacity

kg

150

250

350

500

750

product container weight(empty)

kg

85

120

160

220

250

motor power

kw

1.1

1.1

2.2

3.0

3.0

lifting speed

m/min

0-4

0-4

0-4

0-3.5

0-3

A

mm

4000

4000

4000

4000

4000

B

mm

3900

3900

3900

3900

3900

C

mm

3700

3700

3700

3700

3700

D

mm

2200

2200

2200

2200

2200

E

mm

1400

1400

1600

1700

1800

F

mm

1095

1290

1495

1690

1890
