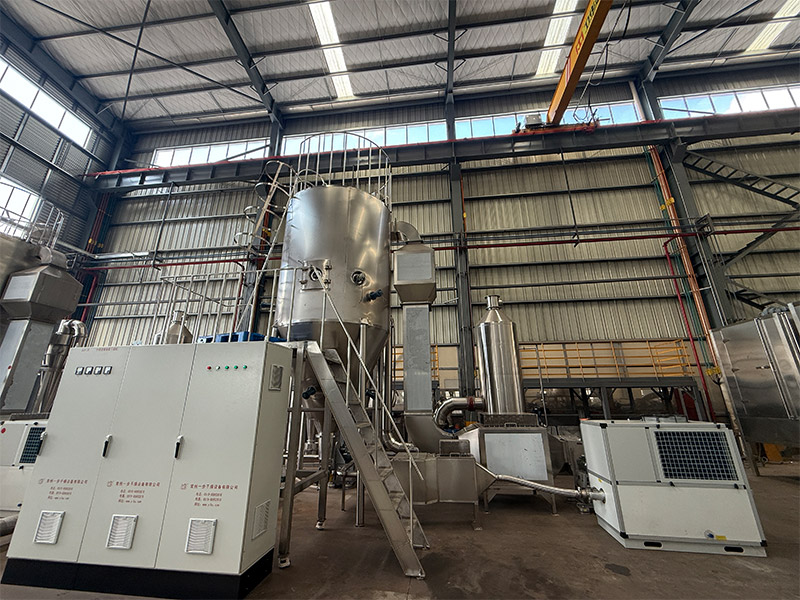

ZLG Series Spray Dryer for Traditional Chinese Medicine Extract

ZLG Series Spray Dryer for Traditional Chinese Medicine Extracts
ZLG Series Spray Dryer for Traditional Chinese Medicine Extract
ZLG Series Spray Dryer for Traditional Chinese Medicine Extracts
ZLG Series Spray Dryer for Traditional Chinese Medicine Extract

ZLG Series Spray Dryer for Traditional Chinese Medicine Extract

Centrifugal spray drying configured for traditional Chinese medicine extracts.

Suitable for: pumpable traditional Chinese medicine extracts and comparable heat-sensitive liquid feeds, subject to evaluation.
Model:ZLG
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Overview & Principle
  • Features & Materials
  • Applications
  • Technical Parameters
  • FAQ
Product Overview
The ZLG Series Spray Dryer for Traditional Chinese Medicine Extract provides centrifugal spray drying configured for traditional Chinese medicine extracts. Typical materials and duties include pumpable traditional Chinese medicine extracts and comparable heat-sensitive liquid feeds, subject to evaluation.
Working Principle

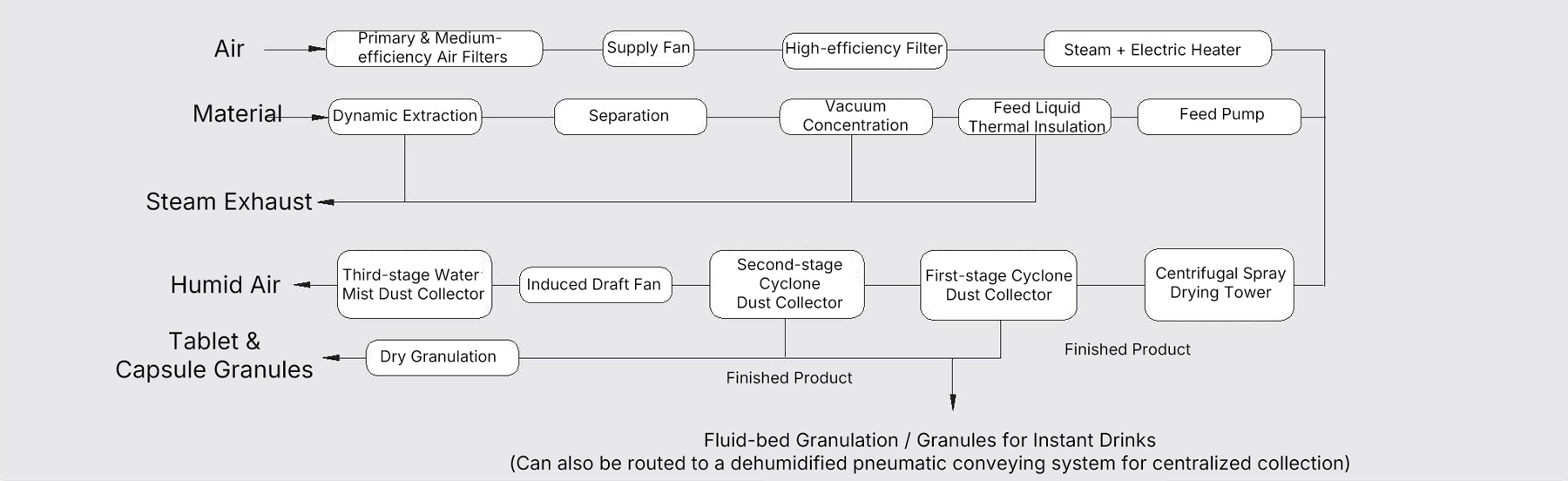

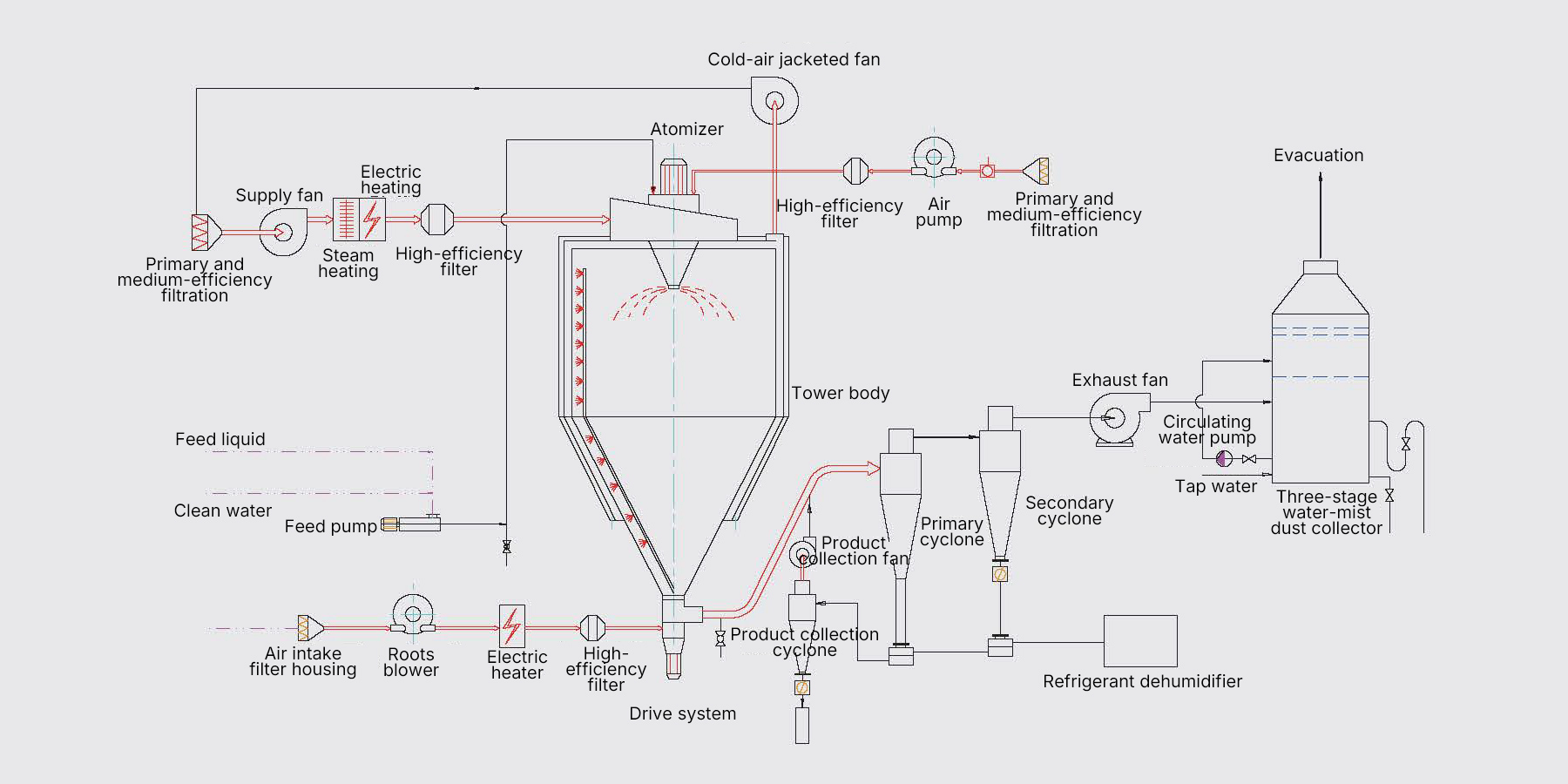

The concentrated extract is atomized by a high-speed centrifugal disc into the drying chamber. The droplets contact heated air, dry rapidly, and are recovered through the configured primary and secondary powder-collection stages.








Key Features
Designed for centrifugal spray drying configured for traditional Chinese medicine extracts.
The equipment and control configuration are selected according to the material and process requirements.
Suitable Materials
Pumpable traditional Chinese medicine extracts and comparable heat-sensitive liquid feeds, subject to evaluation.
Material suitability should be confirmed through review of physical properties, moisture or solvent content, temperature sensitivity and the required final product condition.


Wide Range of Applications
Applications include pumpable traditional Chinese medicine extracts and comparable heat-sensitive liquid feeds, subject to evaluation. Final suitability should be confirmed from the material characteristics and process requirements.


Technical Parameters

ItemParameterZLG-25ZLG-50ZLG-80ZLG-100ZLG-150ZLG-200ZLG-300
Water Evaporation (kg/h)—255080100150200300
Feed-Liquid Throughput (kg/h)—25–3450–6880–108100–135150–203200–270300–406
Finished Product Output (kg/h)—4.8–7.29.2–1414.8–22.418.4–2828–4236.8–56.455–85
Wet-Feed Solids Content (%)—18–3018–3018–3018–3018–3018–3018–30
Final Moisture Content (%)—3–53–53–53–53–53–53–5
Motor Power (kW)—6399132153204246330
Heat Source—Electricity or steamElectricity or steamElectricity or steamElectricity or steamElectricity or steamElectricity or steamElectricity or steam
Product Collection—Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%Two-stage cyclone collection; efficiency ≥95%
Automatic Control—Automatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature controlAutomatic inlet- and outlet-air temperature control
Inlet-Air Temperature (°C)—160–220160–220160–220160–220160–220160–220160–220
Outlet-Air Temperature (°C)—80–10080–10080–10080–10080–10080–10080–100
Overall Dimensions (mm)L70008000980011000122001410015000
Overall Dimensions (mm)W4000500057006200700078009000
Overall Dimensions (mm)H6200690080008900107501190013000


Frequently Asked Questions
What is the primary function of the ZLG Series Spray Dryer for Traditional Chinese Medicine Extract?
Its primary function is centrifugal spray drying configured for traditional Chinese medicine extracts.
What materials can be processed?
Pumpable traditional Chinese medicine extracts and comparable heat-sensitive liquid feeds, subject to evaluation. Final suitability should be confirmed through material and process evaluation.
How should a model be selected?
Confirm feed solids, viscosity, atomization method, inlet and outlet temperature requirements, target powder properties, capacity and powder-recovery arrangement.
