FZG series Square Shape Vacuum dryer

Keywords:
Category: Vacuum dryer
Principle It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity …
Order
Detail Picture

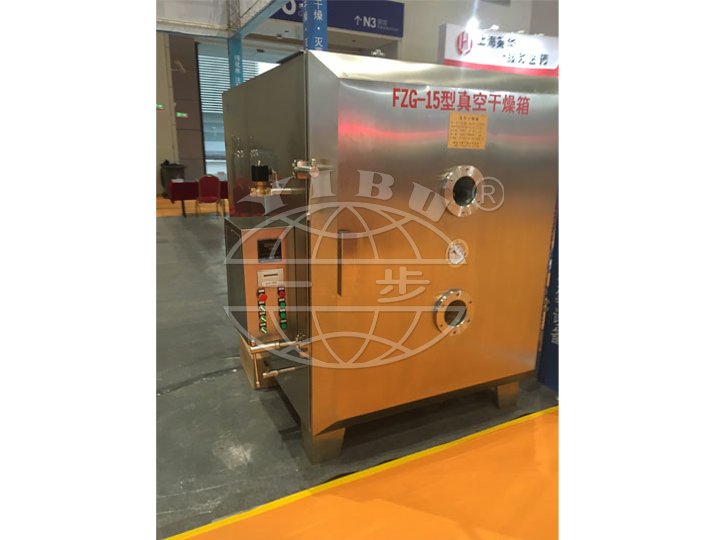

FZG series Square Shape Vacuum dryer



Principle
It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster. Note: if use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the investment and energy could be saved.
It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high   temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.



Feature
1.Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2.The heat source for evaporation may be low pressure steam or surplus heat steam.
The heat loss is less.
3.Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
4.It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.





Application

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

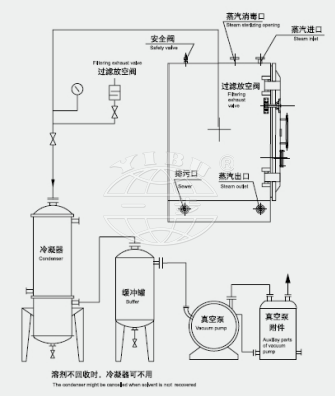

 Drawing

Product parameters

name\spec

FZG-15

interior size of chamber

1500×1220×1400

exterior size of chamber

2060×1513
×1924

layers of baking shelf

8

interval of baking shelf

122

size of baking tray

460×640×45

number of baking tray

32

drying capacity kg

64

permitted pressure inside the pipe of baking shelf

≤0.784

temperature inside chamber (°C)

≤150

vacuum level inside chamber without load

-0.09~0.096

type and power of vacuum pump without condenser

SK-6 11kw

weight of drying chamber

2100
