Summary

Horizontal vibration dryer is widely used in the similar market. The quality is reliable , meeting GMP and FDA requirementsReliable quality, meeting GMP and FDA requirements, especially in the application of the battery material industry, it is favored by users.

The equipment absorbs the advanced technology at home and abroad, improves the thermal efficiency and shortens the drying time.

It is an ideal low-temperature drying equipment in the current battery material preparation market.

When working, through the external mechanical excitation, the material in the container is ballistic fluidized and suspended liquid in a vacuum state, and performs spiral motion.

The surface temperature of the material changes through the heat medium in the jacket the water and the solvent are vaporized, and Vacuuming to achieve the purpose of drying.

Application field

Battery materials, ceramics, metals, special pharmaceuticals;

Chemical Industry: General Chemistry, Petrochemical, Organic, Inorganic Chemistry, Heavy Chemistry, Fertilizer.

Medicine and food: raw materials, biopharmaceuticals, general food additives, grains, agricultural products, etc.

Applied to the drying of nanoparticles, powders, slurries and filter cakes.

Materials with various moisture content can be dried,especially for raw materials that are difficult to separate solids and liquids, it is also suitable for drying raw materials containing organic solvents.

Equipment feature

To adopt full -sealed jacket for insulation . Fast heating-up ,small heat loss,energy saving and the thermal efficiency can reach more than 70% .

The drying process meets the GMP and FDA requirements. The vacuum is suctioning material and the material is discharge by the vibration .no pollution.

The water inlet and outlet pipes can be used in interchangeable positions. To ensure the temperature low down.Rapidly cooling the heat-sensitive materials to ensure the material quality requirements.

The equipment can be operated aseptically. To Sterilize the inside of the container with steam . it is very Safe, reliable, convenient and easy to operate it .

The equipment has large production capacity, complete functions, and can be used for multiple purposes;

The vibration realizes that the powder and particles material vibrate up and down and move evenly along the cylinder wall;The powder is in a floating state in the tank, which greatly reduces the wear on the tank, and is suitable for drying abrasive materials.

During the drying process, as the fluidity of the powder increases and improves, the material moves and dries evenly.

Indirect heating, available with steam and thermal oil.

Conduct pilot test in the laboratory to determine the parameters and operation mode of the mass production machine.

Realize modularization, automation, intelligent production and manufacturing.

Advantage

Both heating-cooling function can be achieved .it can save cost when the capacity is achieved .

It can recovery organic solvents.

Less particle damage, dry evenly, the product is discharged by the vibrating- mixing .

No sealing shaft. It can maintain a high degree of vacuum by good sealing.

Simple operation and easy to clean it .

High degree of automation .The material feeding and discharging can be automated.no disconnection is required between batch.

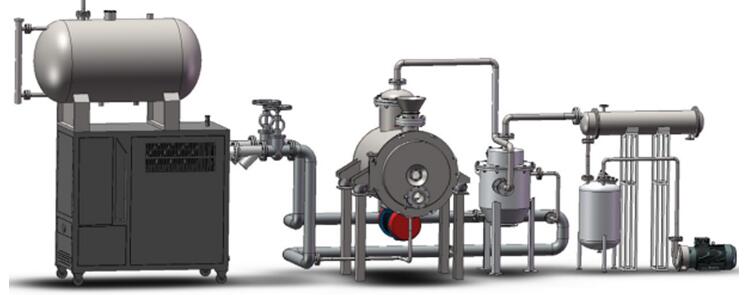

Flow chart

Technical parameter

•
  ZDG Series vacuum vibrating dryer（Specially for lithium battery)
