High Effect Grinding Machine (High Effect Pulverizing Machine)(High Effect Pulverizer)

Keywords:
Category: Grinding machine
Working principle 1.This machine use the relatively high speed of and use activities chain-ring between fixed tooth plate, so that was crushed by the chain-ring impact, friction and material collide with each other and get crushed…
Order

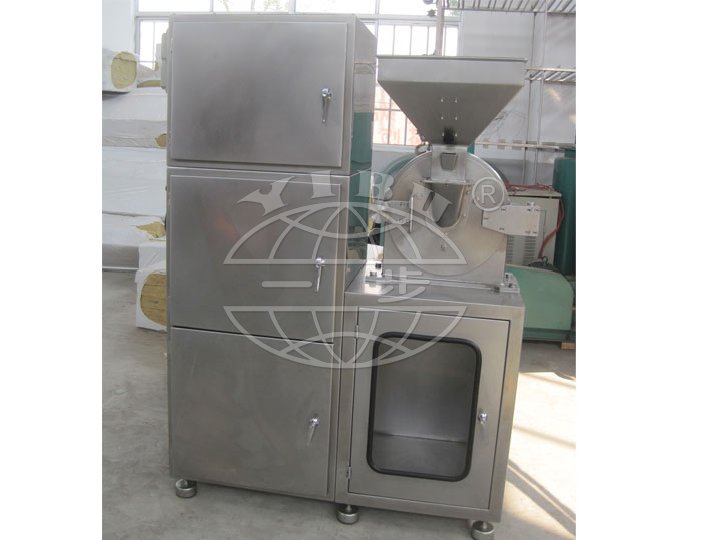

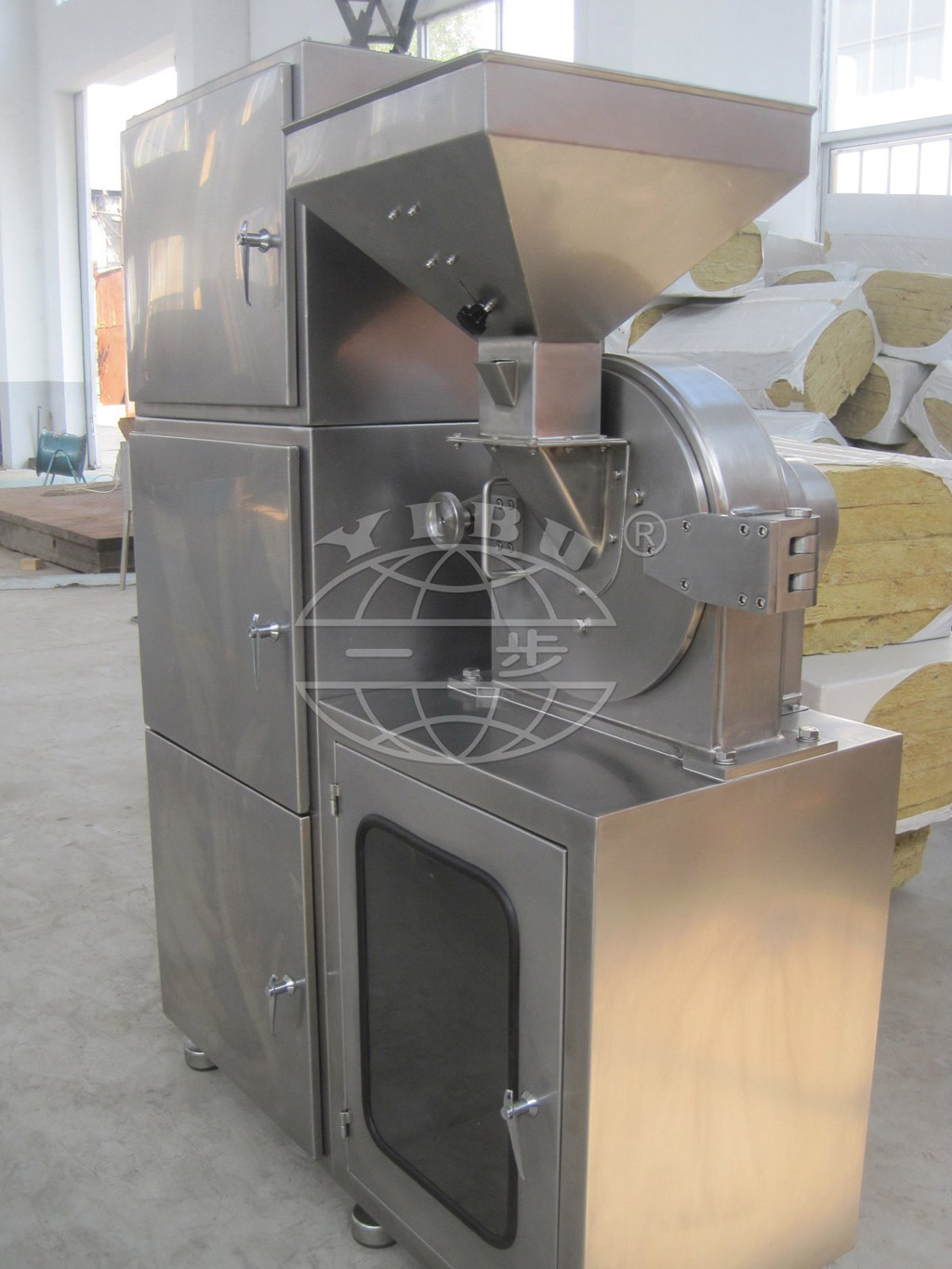

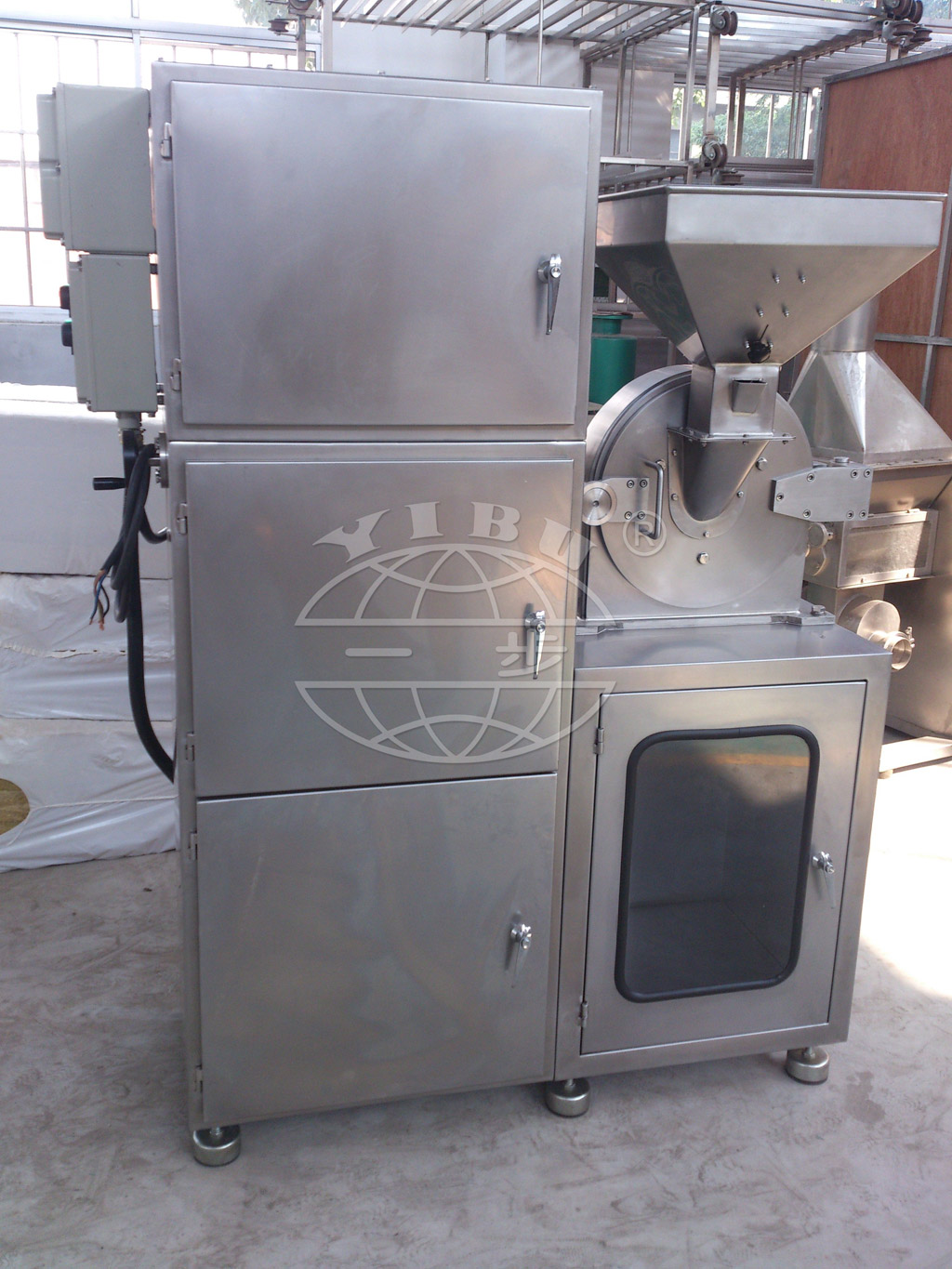

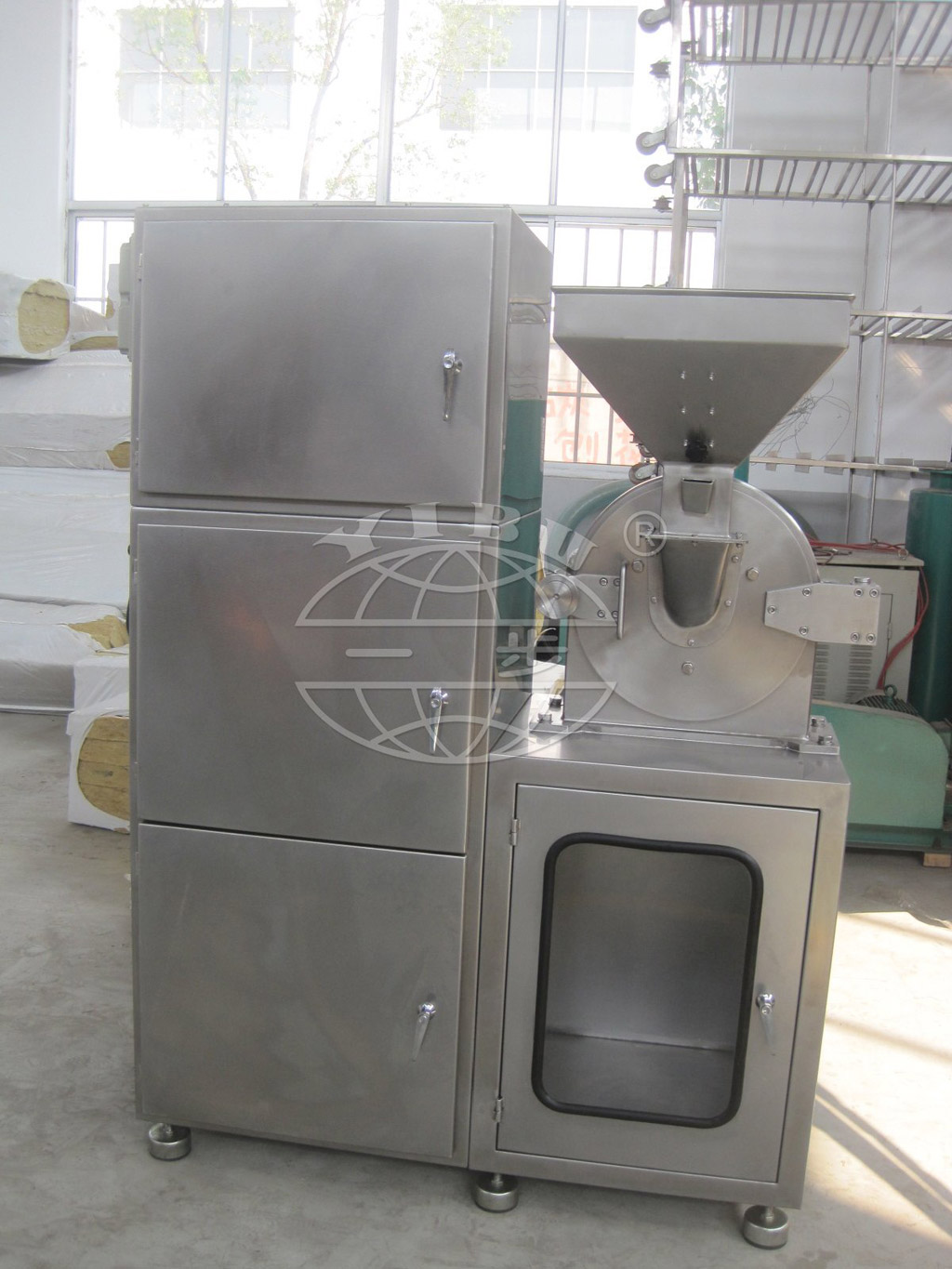

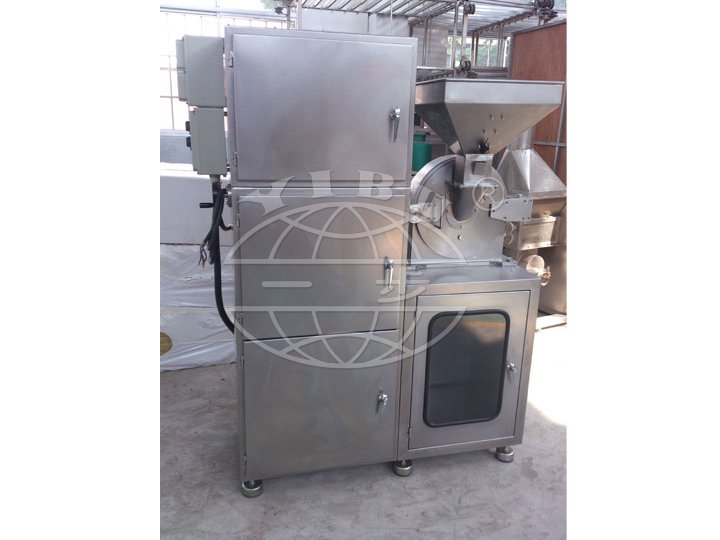

Detail Picture

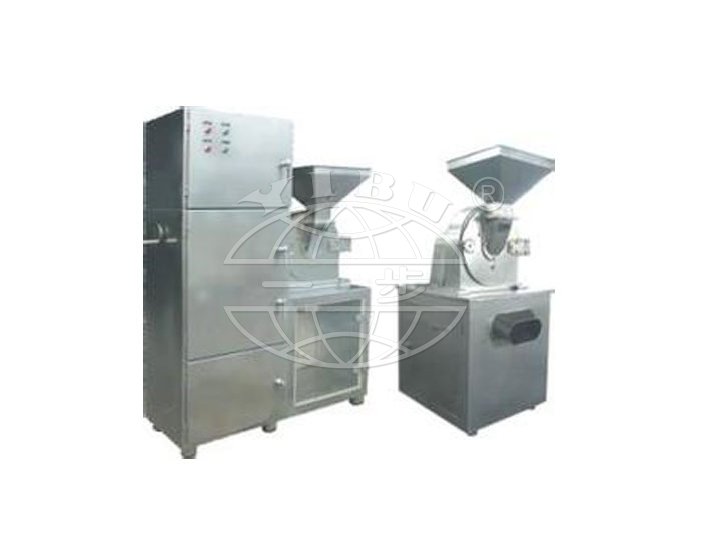

High Effect Grinding Machine (High Effect Pulverizing Machine)(High Effect Pulverizer)



 Working principle
 1.This machine use the relatively high speed of and use activities chain-ring between fixed tooth plate, so that was crushed by the chain-ring impact, friction and material collide with each other and get crushed.
2.Crushed material by the centrifugal force, automatically enter the trap bag, dust from the vacuum tank was recovered by filtration bag.
 3.The machine adopts high-quality AISI304 or AISI316L stainless steel, the production process no dust, and can improve the utilization of materials, reduce business costs. Replacement of different particle size is determined by the number of screens.
4. Inside the enclosure (crushing groove) all alveolar by precision machined so as to achieve a smooth surface, easy to clean and change the ordinary mill rough wall, easy to accumulate dust, the phenomenon is difficult to clean, the food, pharmaceutical, chemical and other production line with GMP requirements .
5.The machine structure is simple, robust, smooth operation, the crushed material quickly and evenly, with good results.



Application
The machine(set) is extensively used in chemical, pharmaceutical, food and pesticide industries for grinding dry brittle materials.

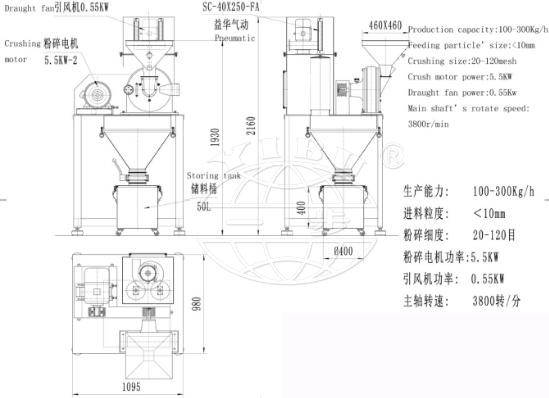

Flow Chart



Technical parameters

spec

unit

20B/20Bset

30B/30Bset

40B/40Bset

60B/60Bset

productive capacity

(kg/h)

60-150

100-300

160-800

500-1500

speed of main shaft

r/min

4500

3800

3400

2800

feeding granule size

mm

6

10

12

15

fineness of pulverization

mesh

60-150

60-120

60-120

60-120

grinding motor power

kw

4

5.5

11

15

fan power

kw

1.5

1.5

1.5

2.2

weight

kg

250

320

550

680

L×W×Hoverall dimension

mm

550×600×1250

600×700×1450

800×900×1550

1000×900×1680

L×W×Hoverall dimension set

mm

1100×600×1650

1200×650×1650

1350×700×1700

1550×1000×1750
