Instant Coffee Powder production Line



DESCRIPTION
The purpose of this Instant Coffee Powder production Line (Instant coffee powder processing/production machine/equipment/ line) is to make coffee bean into soluble coffee powder through the process of roasting, grinding, extraction, concentrating, spraying drying and so on



Features

Instant Coffee Powder production Line (Instant coffee powder processing/production machine/equipment/ line) is designed to utmost perfection. Excellent construction design and operational ease features of this plant are further enhanced with its smooth and hassle free operations. Now you can perk up your cup of coffee and enhance your enjoyment by preparing the coffee creamer. YIBU supplies total plant on turnkey basis that carries out complete processes ranging from Pre-Processing procures to package for production of instant coffee powder.



The Manufacturing Process Has The Following Steps
①Raw coffee beans are delivered to raw material tank by Roots fan after sorting and passing through the vibrating screen.
②Raw coffee beans from raw material tank are weighed and
Then enter into baking furnace in order to become ripe coffee bean.
③Ripe coffee beans are delivered into ripe material vessel through cooling plate screen with hole.

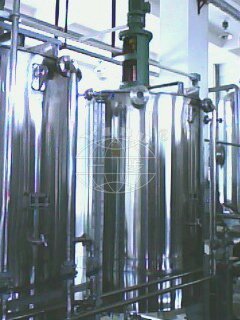

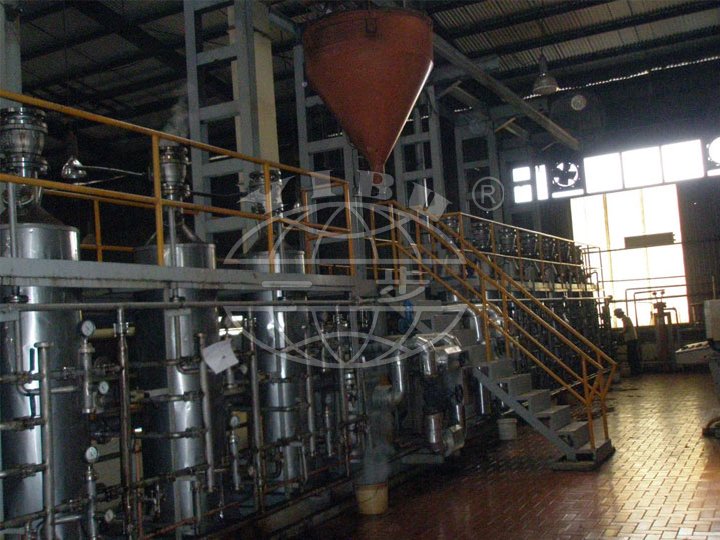

④After breaking and weighing, the ripe coffee beans are delivered to extraction pot for extracting.
⑤Extraction liquid are conveyed to extraction liquid pot through filtering and cooling.

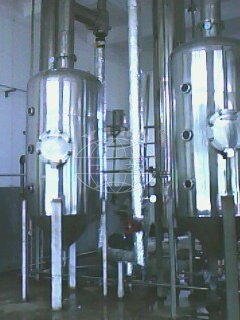

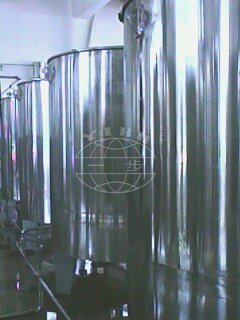

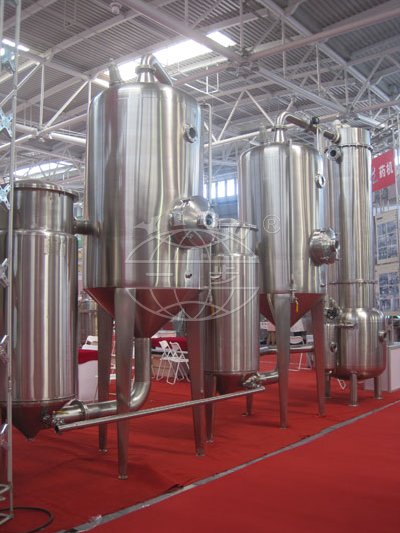

⑥To concentrate the extraction liquid through double efficiency concentrator and then to pump them to concentrated liquid storage pot.
⑦To add assistant material to make match material when the concentrated liquid enter into match material pot.

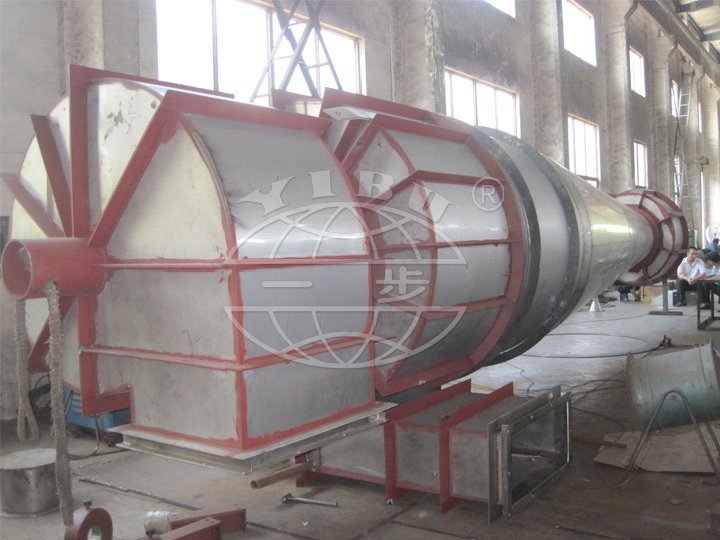

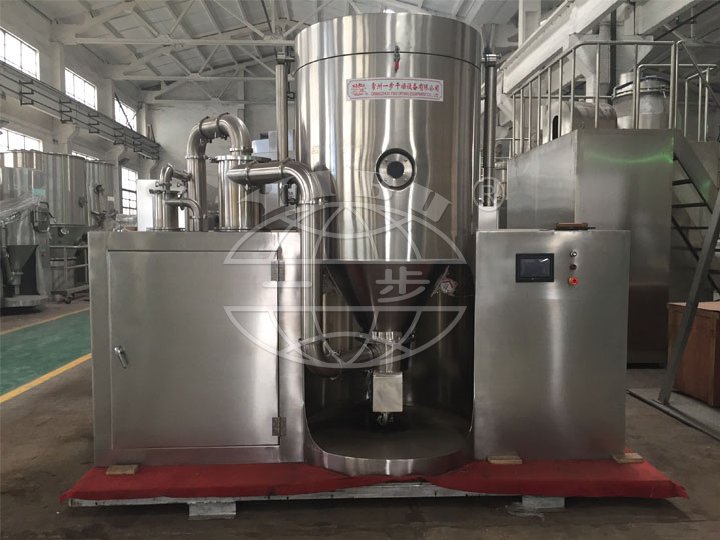

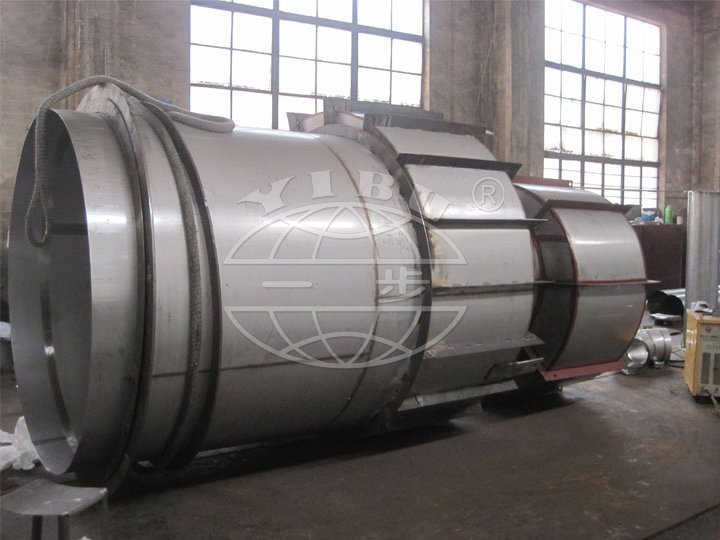

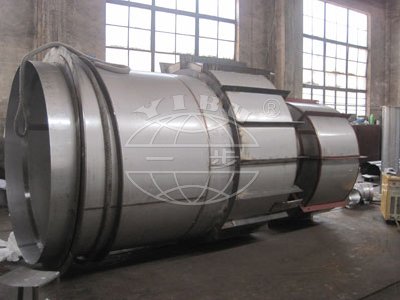

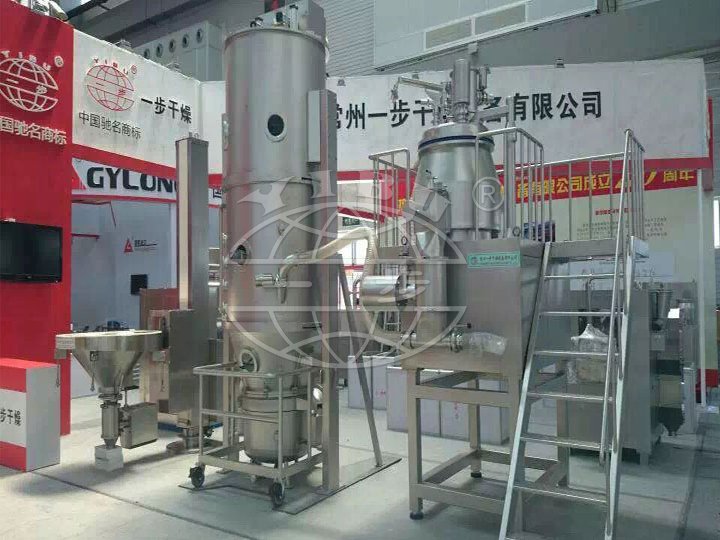

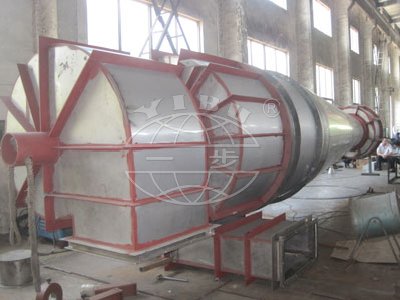

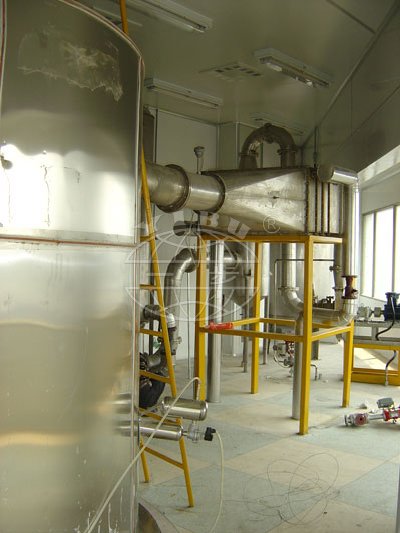

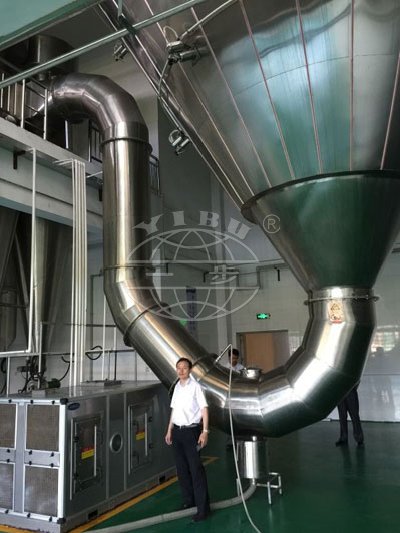

⑧After filtering, the well-matched concentrated liquid mixture are pumped into spray dryer fro spray drying by piston pump.(if want to process the soluble granule , it can use fluidizing granulator to do it )
⑨ After matching material, to make a inner packing for the Dry power. (For example: packed in small bags or bottles), after this, to pack the small bags or bottles in cartons and then to storage them in warehouse.



The Whole System Produceduers
The whole production devides into three producedurs : one is pre-processing producture , the other is Extraction and Drying process,another is package.

1.Pre-processing procedure





Friendly Reminder
1.This kind of plant are made based on customized design. Not all the features are provided with all designs. The real configurations should be made as per the Contracts or Agreements signed.
2.The material for manufacturing the machine can be AISI304 ,316L and so on . It depends on the customer request.
3.For the heating method , it can be steam ,electricity ,gas-furnace and so on .
4.For the control system , we can design simple push button , and PLC+HMI is also available for customer ,we can design the control system on request .

•
  Instant Coffee Powder production Line
•
  Instant Coffee Powder production Line
•
  Instant Coffee Powder production Line
