GFG Series High Efficiency Fluid Bed Dryer(High Efficiency Fluidizing Dryer)

Keywords:
Category: Fluid bed dryer
Working Principle Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative…
Order
Detail Picture

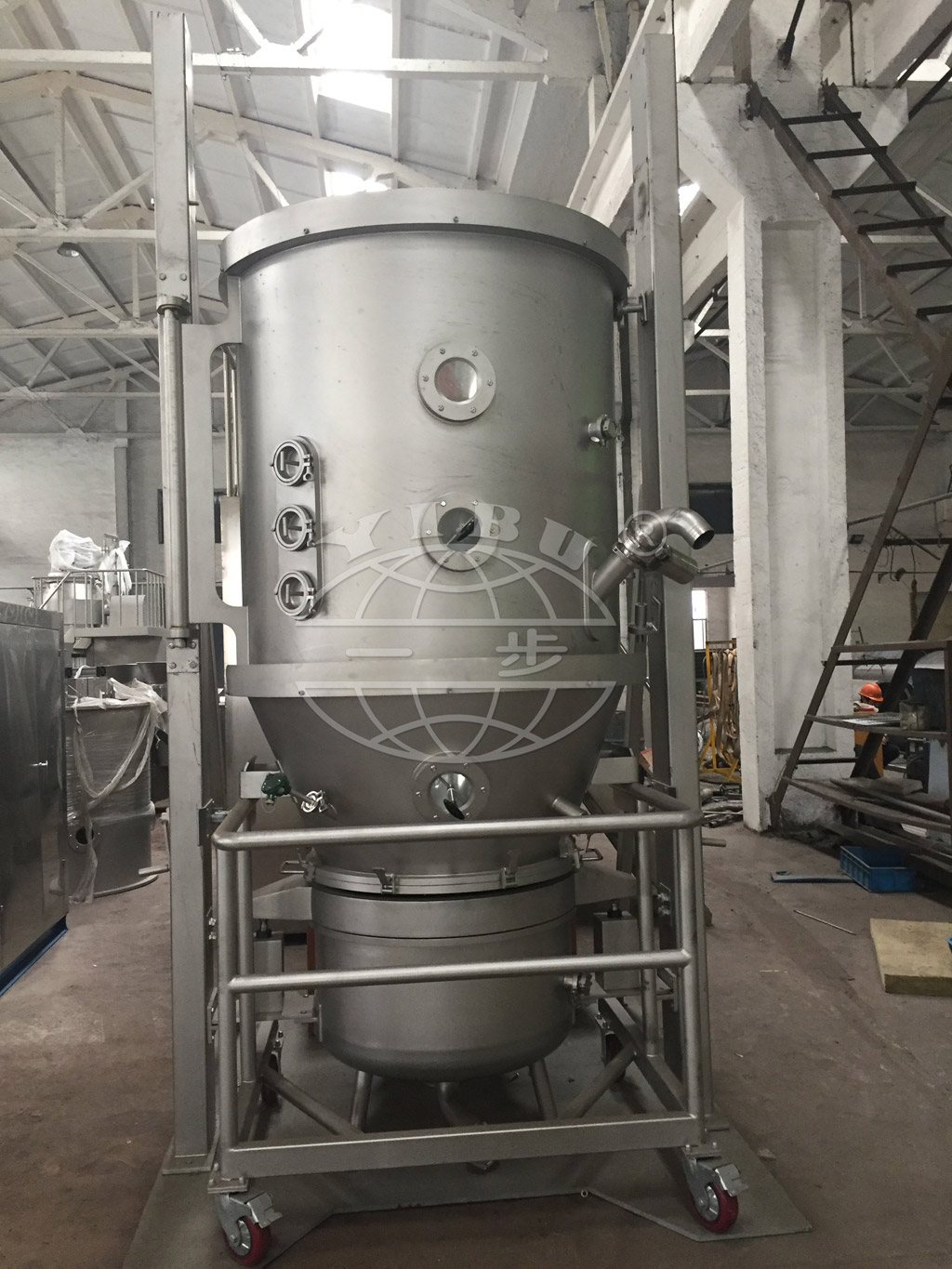

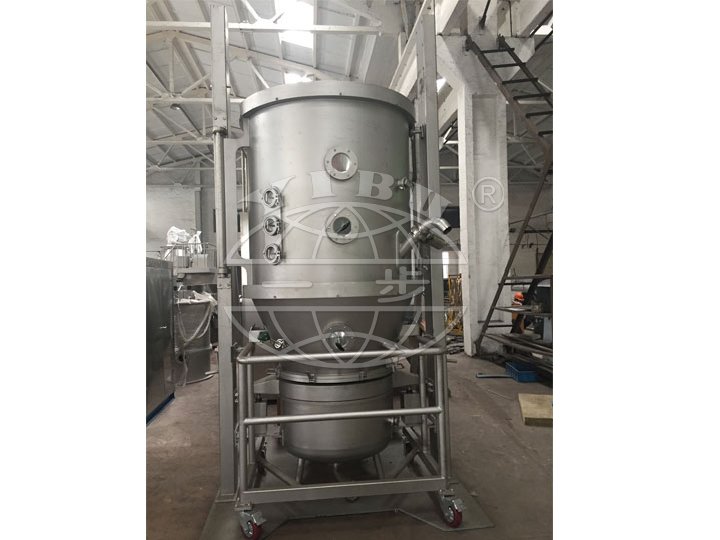

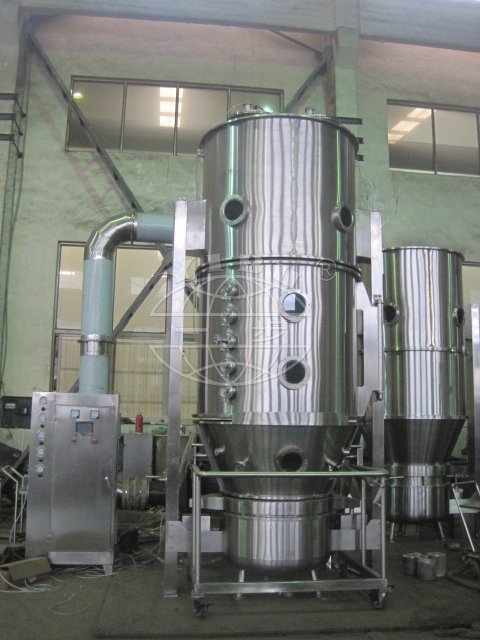

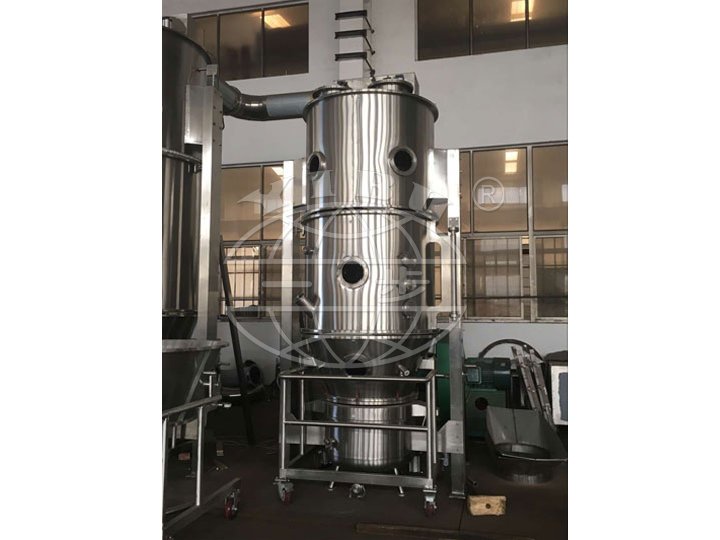

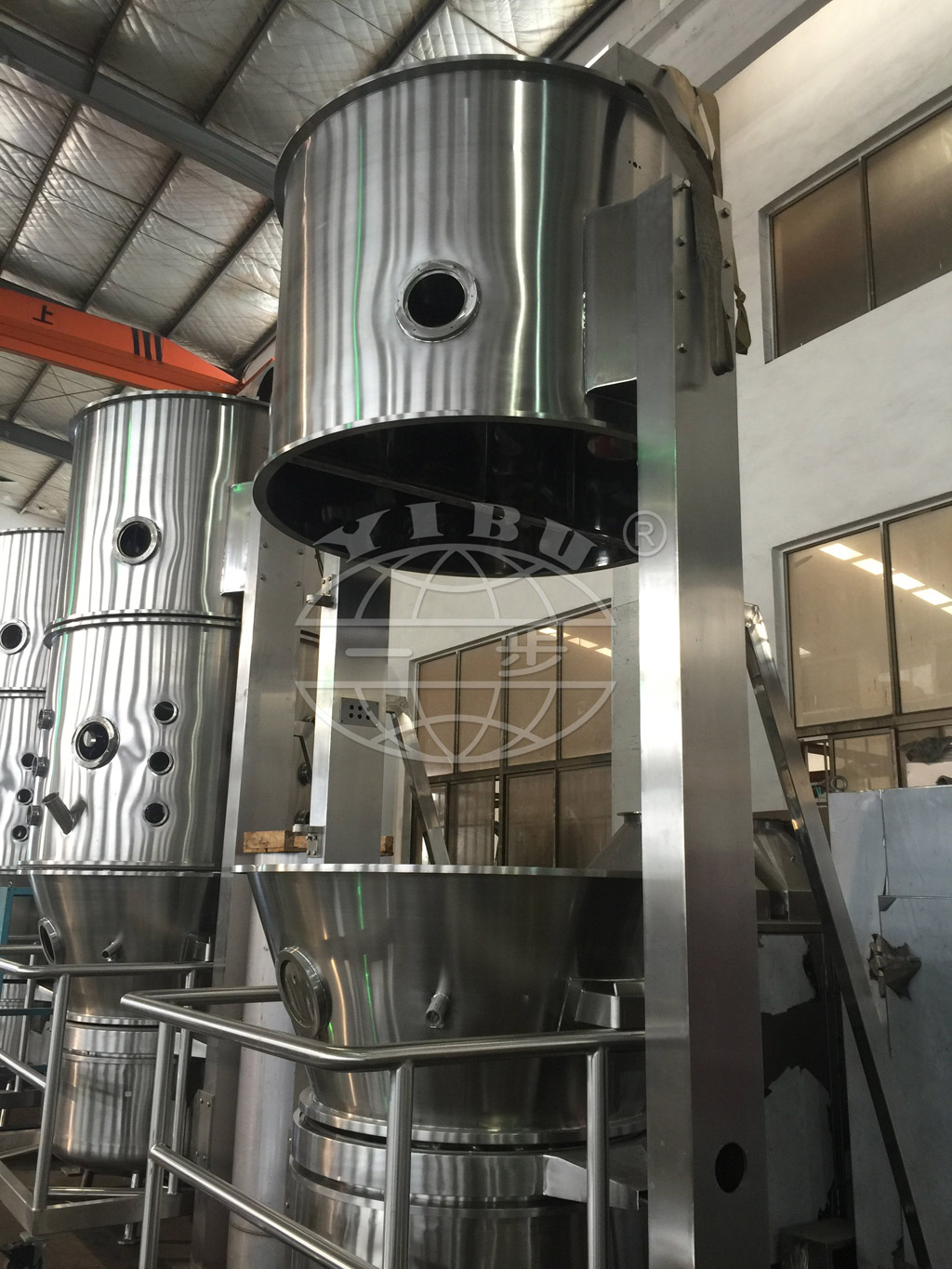

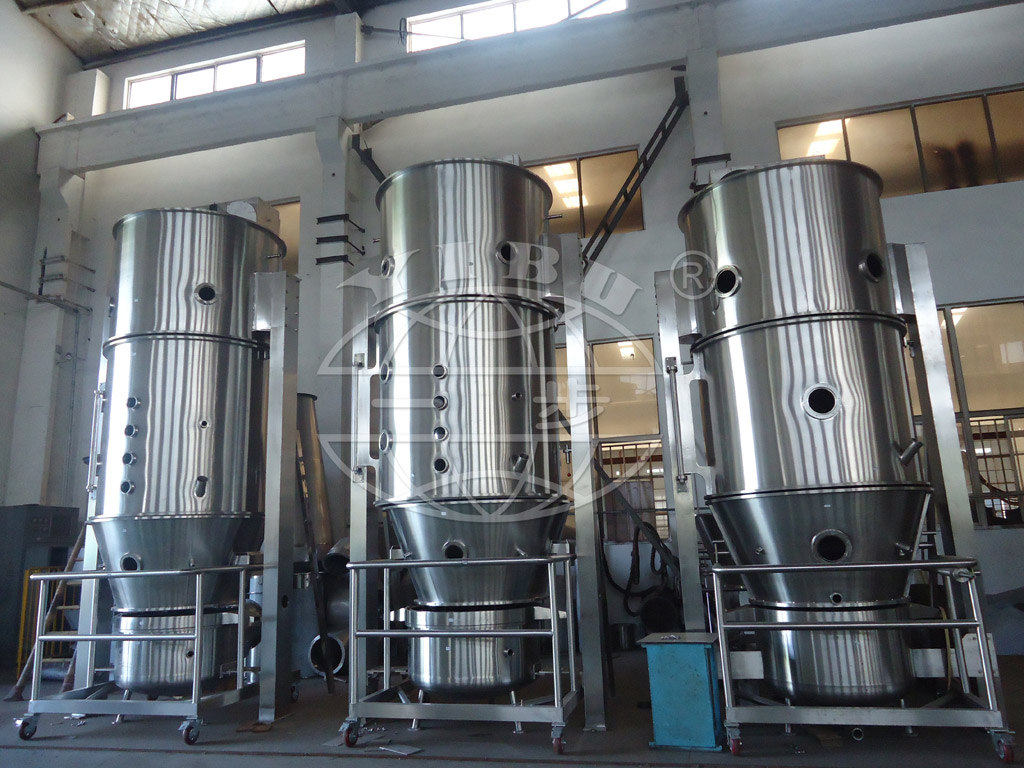

GFG Series High Efficiency Fluid Bed Dryer(High Efficiency Fluidizing Dryer)



Working Principle

Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly




Features
1. The structure of fluidization bed is of round so as to avoid dead corner.
2. Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow.

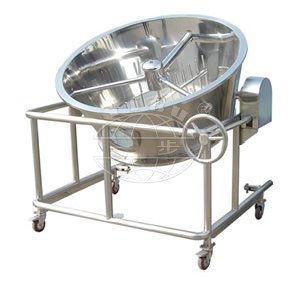

3. The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too.
4. It is operated at he conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.
5. The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.

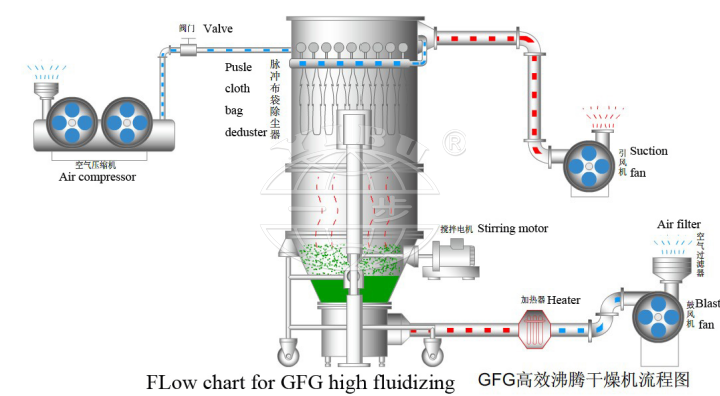

Flow Chart

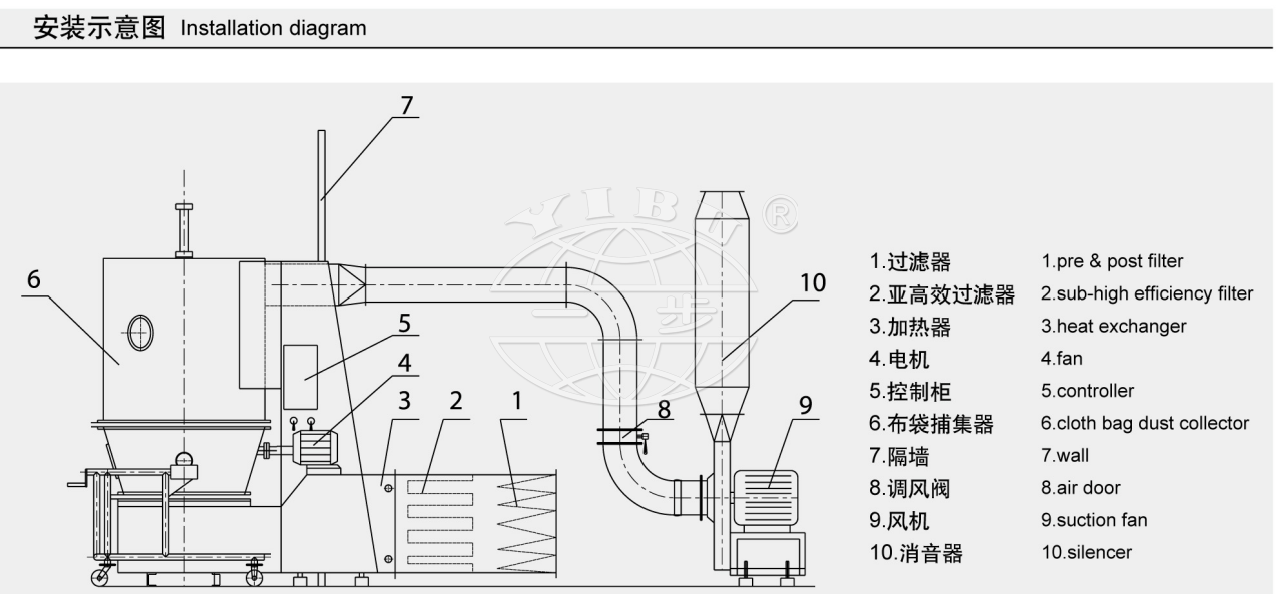

Installing Drawing

Application

1.Screw extruded granules, Granules from sway granulator and high speed wet mixing granulator.
2.Suitable for drying humidity block or powder raw material in Pharmaceutical, foodstuff, feed, chemical industries and so on fields.
3.Large granules, small blocks and adhesive material.
4.The materials that volumes migh vary during drying process.



Equipment parameters


item

spec

capacity

kg

60

100

120

150

200

300

500

1000

fan

velocity

m3/h

2361

3488

4000

4901

6032

7800

10800

15000

air pressure

mmH2O

594

533

533

679

787

950

950

1200

power

kw

7.5

11

15

18.5

22

30

45

75

stirring power

kw

0.55

0.55

0.55

0.55

0.75

1.5

1.5

2.2

stirring speed

rpm

11

consume of steam

kg/h

141

170

170

240

282

366

451

800

time of operation

min

15-30 (depends on material)

height of main machine

mm

2700

2900

2900

2900

3300

3800

4200

5800

Optional item

1. Product charging by the lifting machine
2.Product charging by the vacuum transfer machine
