YLT Series Movable Hopper Lifter

Keywords:
Category: Pharma lifter
YLT Series Movable Hopper Lifter ApplicationThis machine can be applied to lifting and feeding the standard material hopper.it can also applied to feeding the tablet press, capsule filling machine, mixer, and other equipment.It is widely used in pharmaceut…
Order

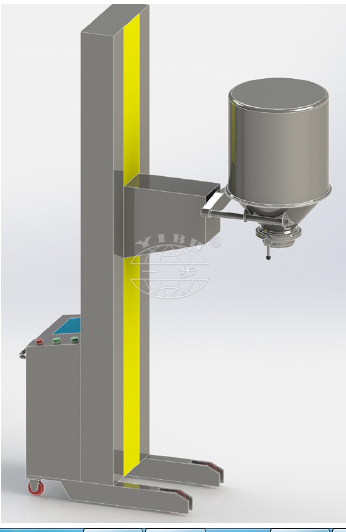

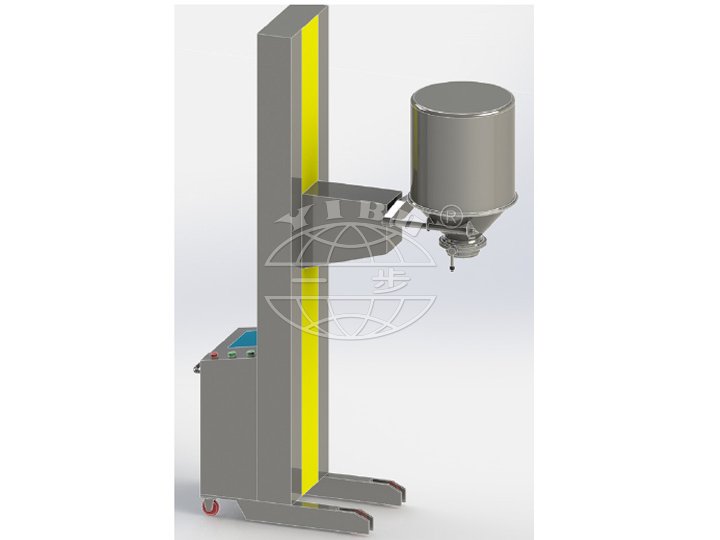

Detail Picture
YLT Series Movable Hopper Lifter



Application
This machine can be applied to lifting and feeding the standard material hopper.it can also applied to feeding the tablet press, capsule filling machine, mixer, and other equipment.

It is widely used in pharmaceutical, chemical, food and other industries.


Principle

The machine consists of the pillar, movable chassis, material discharge Cone hopper, rotating structure, hydraulic system and control system. When working, It fixes the hopper with charging hopper filled with materials, then lifts operation lever, upgrades the charging hopper to the certain height and turns it over, then moves the lifter to discharging position, lifts it to the discharging height and docks with the equipment, then opens the butterfly valve and discharges.


Features
After extensively absorbing foreign advanced technology, taking China's national conditions into consideration, Our company develops this new machine. It has proper structure, stable and reliable performance, and is easy to operate and move. Besides, it is equipped with butterfly valve to prevent maloperation to Ensure the safe production and it’s easy to disassemble and clean.

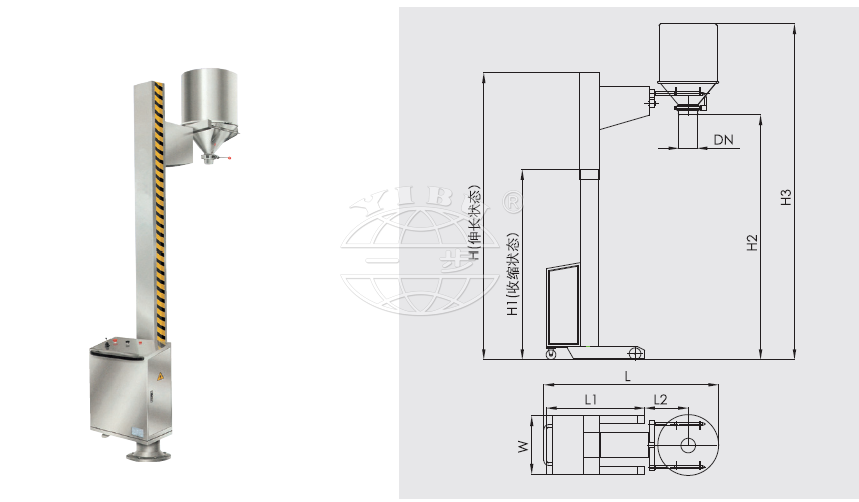

Installation Diagram


Technical parameters


Type

Size of the structure

Hopper Volume
(L)

Total power (KW)



L

L1

L2

W

H

H1

H2

H3





YLT100

1700

1020

500

700

2950

1950

2500

3450

100

1.87

YLT150

1800

1020

450

700

2950

1950

2500

3450

150

2.05
